Home
>>
Oldsmobile
>>
2002
>>
Aurora V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cellular Phone
>>
Vehicle Interface Unit (VIU)
Vehicle Interface Unit (VIU)
Vehicle Interface Unit (VIU) C1:

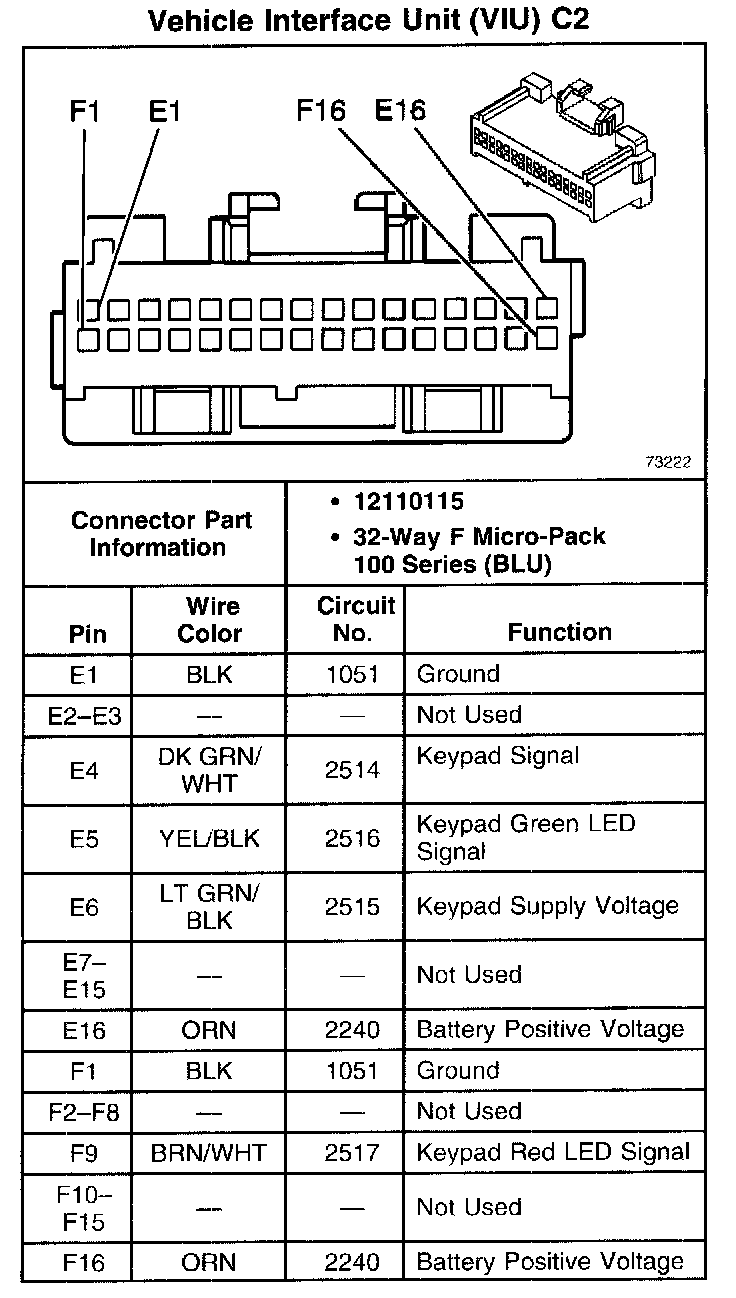

Vehicle Interface Unit (VIU) C2:
Vehicle Communication Unit (VCU):
