Control Assembly, HVAC
Control Assembly, HVAC

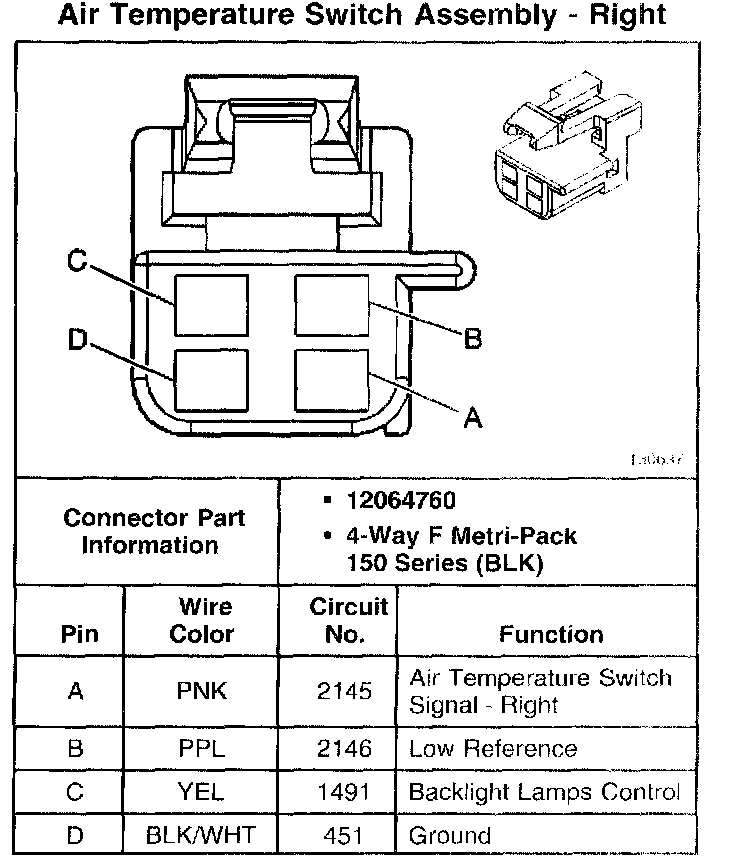

Air Temperature Switch Assembly - Right - HVAC Systems - Automatic:

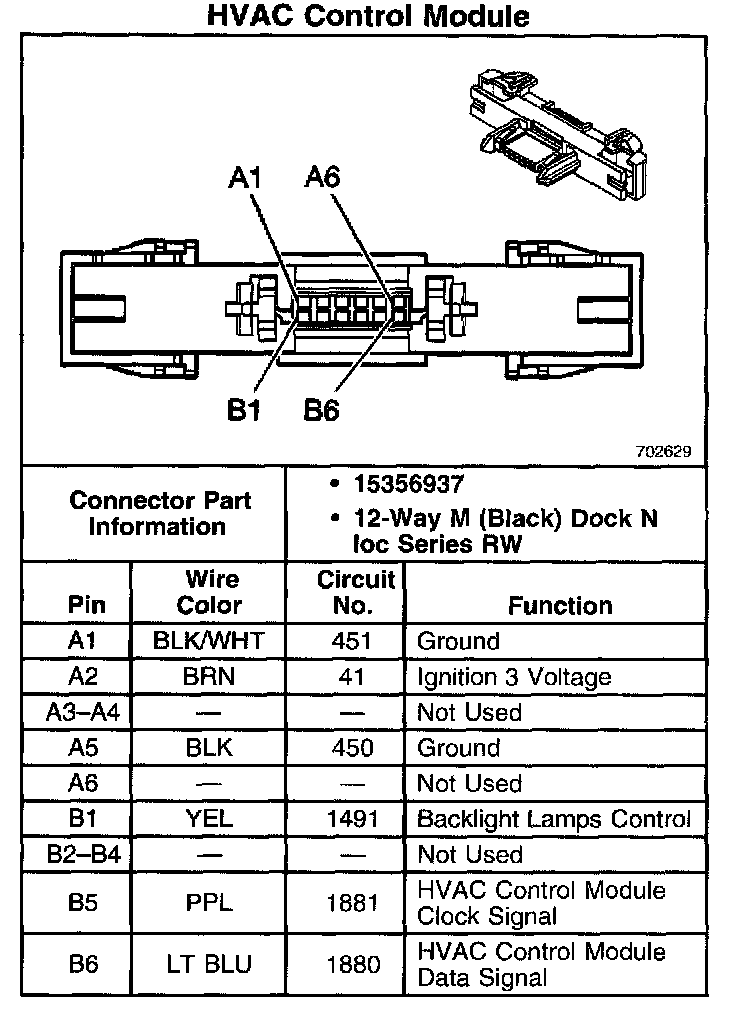

HVAC Control Module - HVAC Systems - Automatic:
