Aurora V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Actuator
>>
Front Passenger
Front Passenger
Door Lock Actuator - Front Passenger C1:

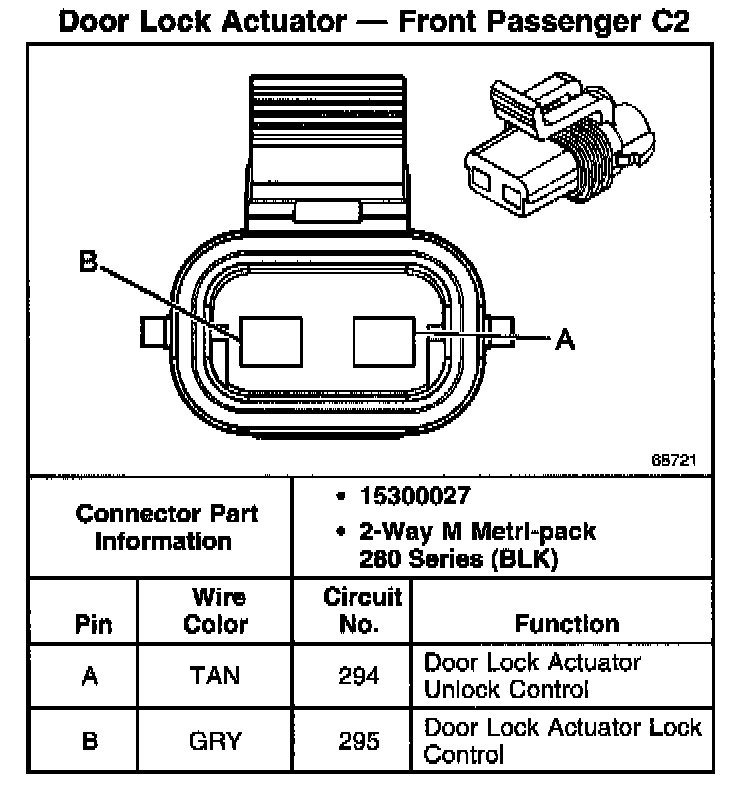

Door Lock Actuator - Front Passenger C2:
