Aurora V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Actuator
>>
LR
LR

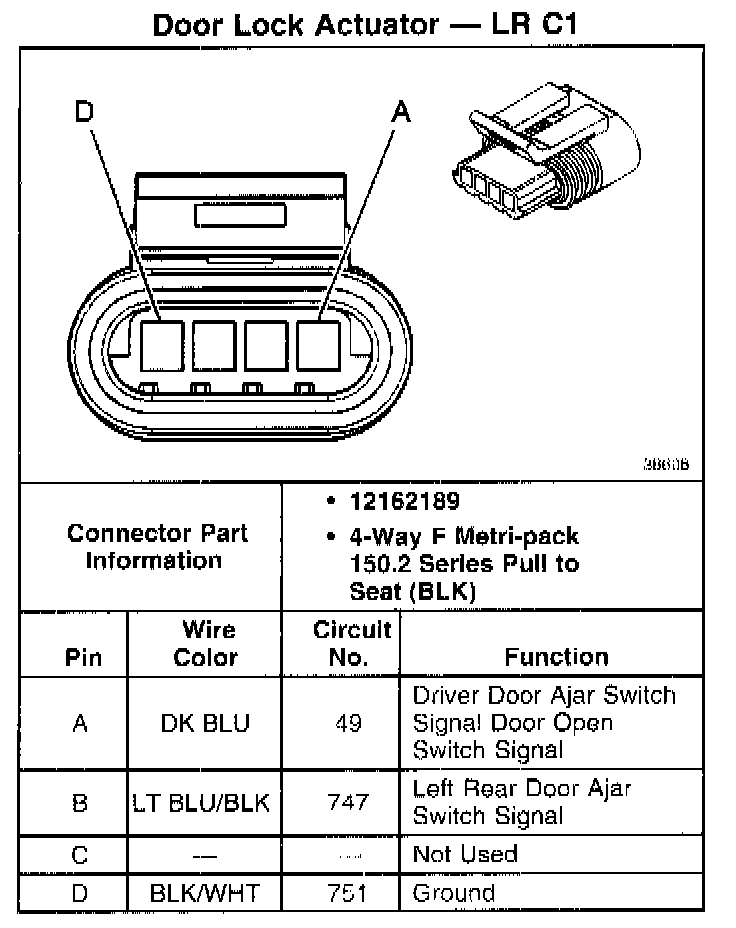

Door Lock Actuator - LR C1:

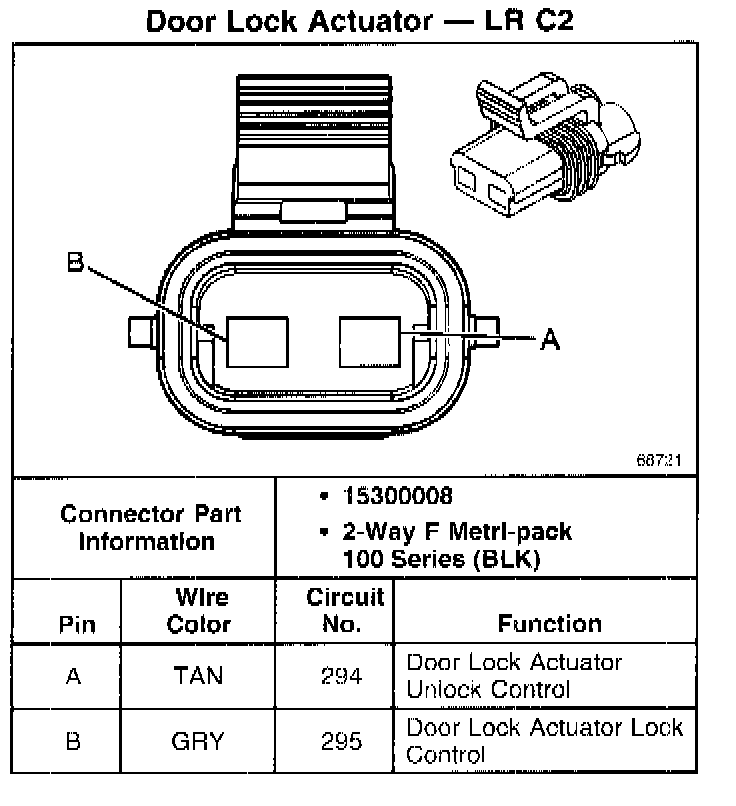

Door Lock Actuator - LR C2:
