Aurora V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Motor
>>
Seat Front Vertical Motor-Driver
Seat Front Vertical Motor-Driver

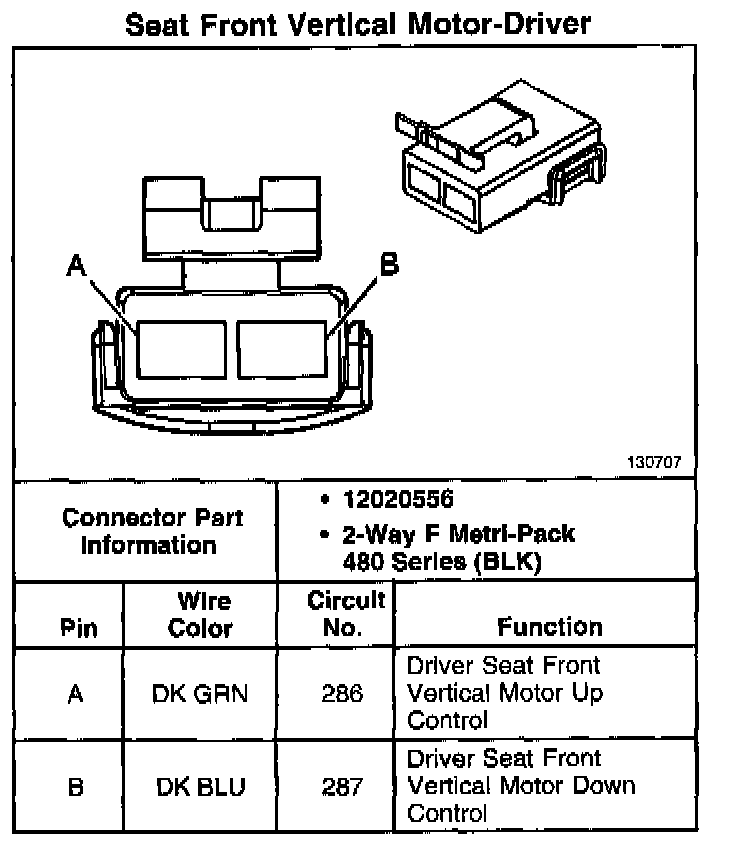

Seat Front Vertical Motor-Driver:
