Home
>>
Oldsmobile
>>
2002
>>
Aurora V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Motor
>>
Seat Horizontal Motor-Front Passenger
Seat Horizontal Motor-Front Passenger

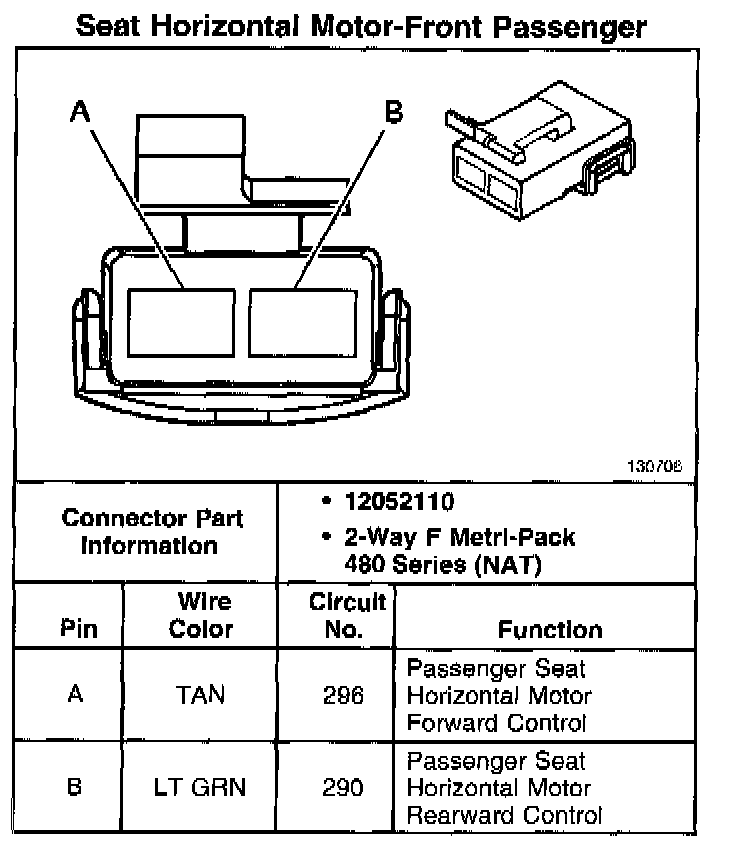

Seat Horizontal Motor-Front Passenger:
