Home >> Oldsmobile >> 2002 >> Aurora V6-214 3.5L VIN H SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Motor >> Seat Lumbar Horizontal Motor-Driver

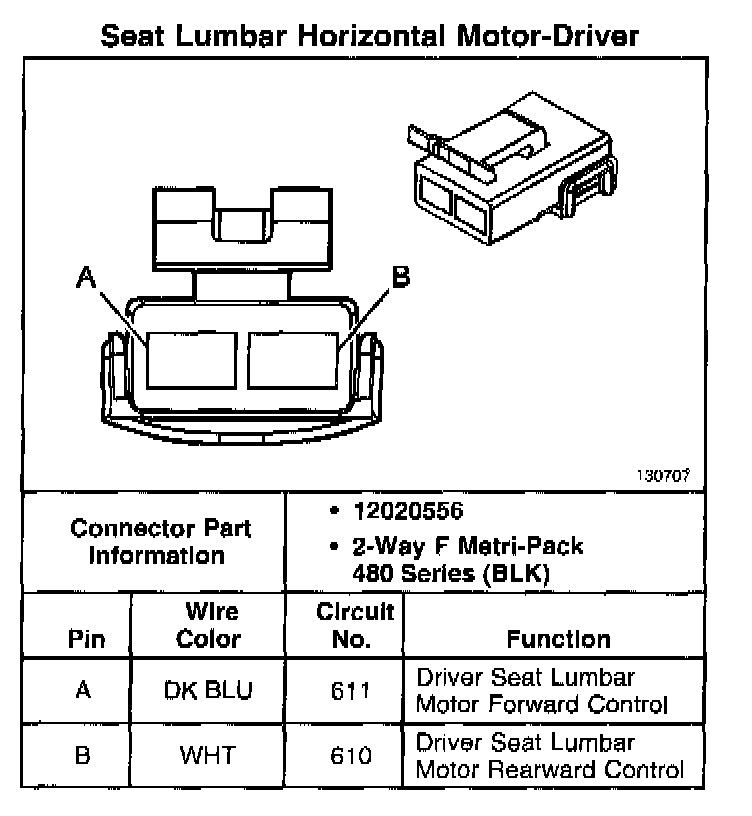

Seat Lumbar Horizontal Motor-Driver

Seat Lumbar Horizontal Motor-Driver:
