Power Seat Motor
>>
Seat Rear Vertical Motor-Front Passenger
Seat Rear Vertical Motor-Front Passenger

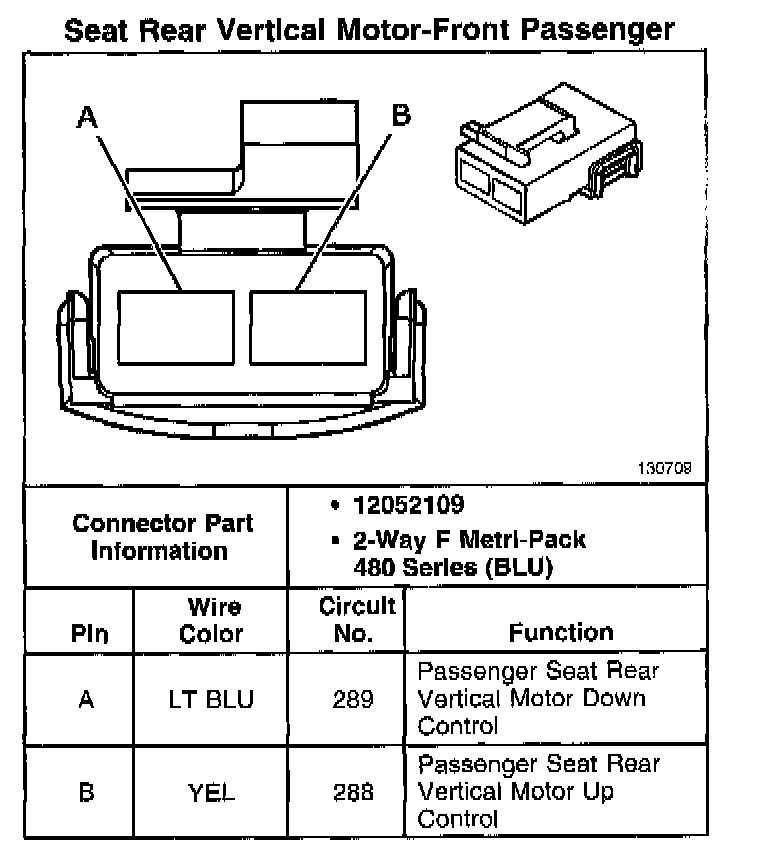

Seat Rear Vertical Motor-Front Passenger:
