Home >> Oldsmobile >> 2002 >> Aurora V6-214 3.5L VIN H SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Motor >> Seat Recline Motor-Front Passenger

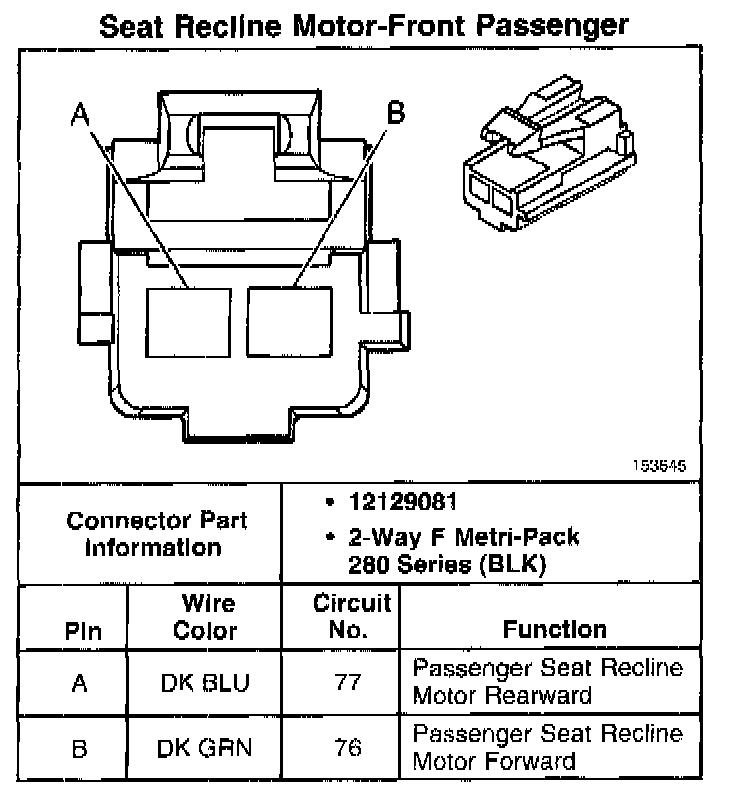

Seat Recline Motor-Front Passenger

Seat Recline Motor-Front Passenger:
