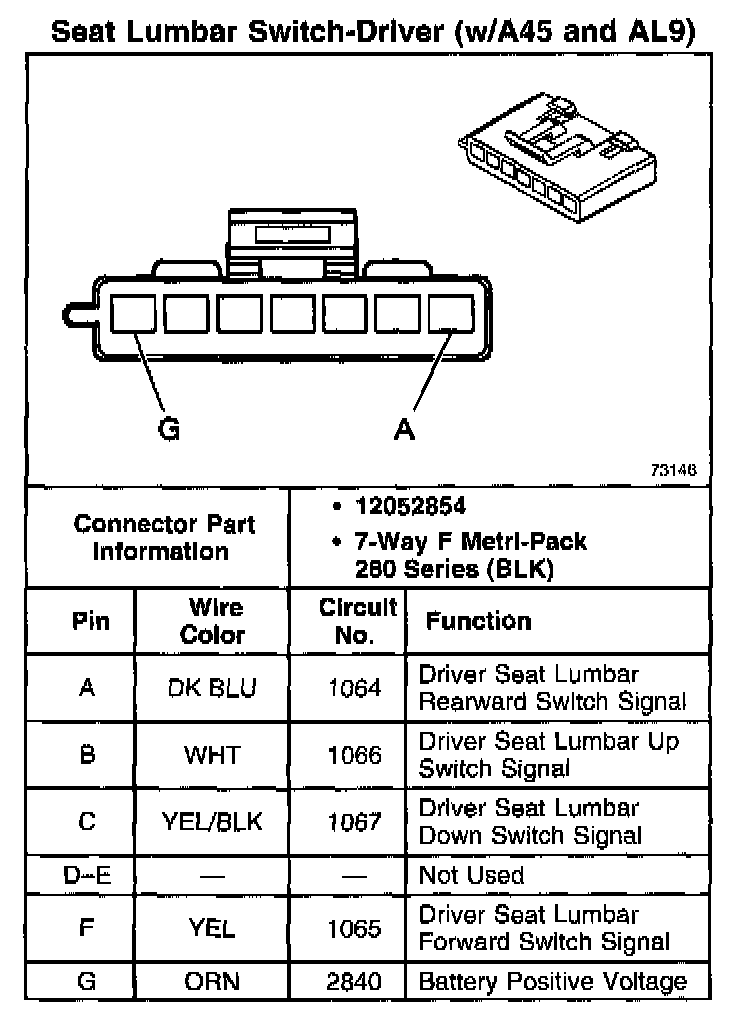

Seat Lumbar Switch-Driver (W/A45 and AL9)

Seat Lumbar Switch-Driver (W/A45 And AL9):





"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application". RPO Codes
