Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
2002
>>
Aurora V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>

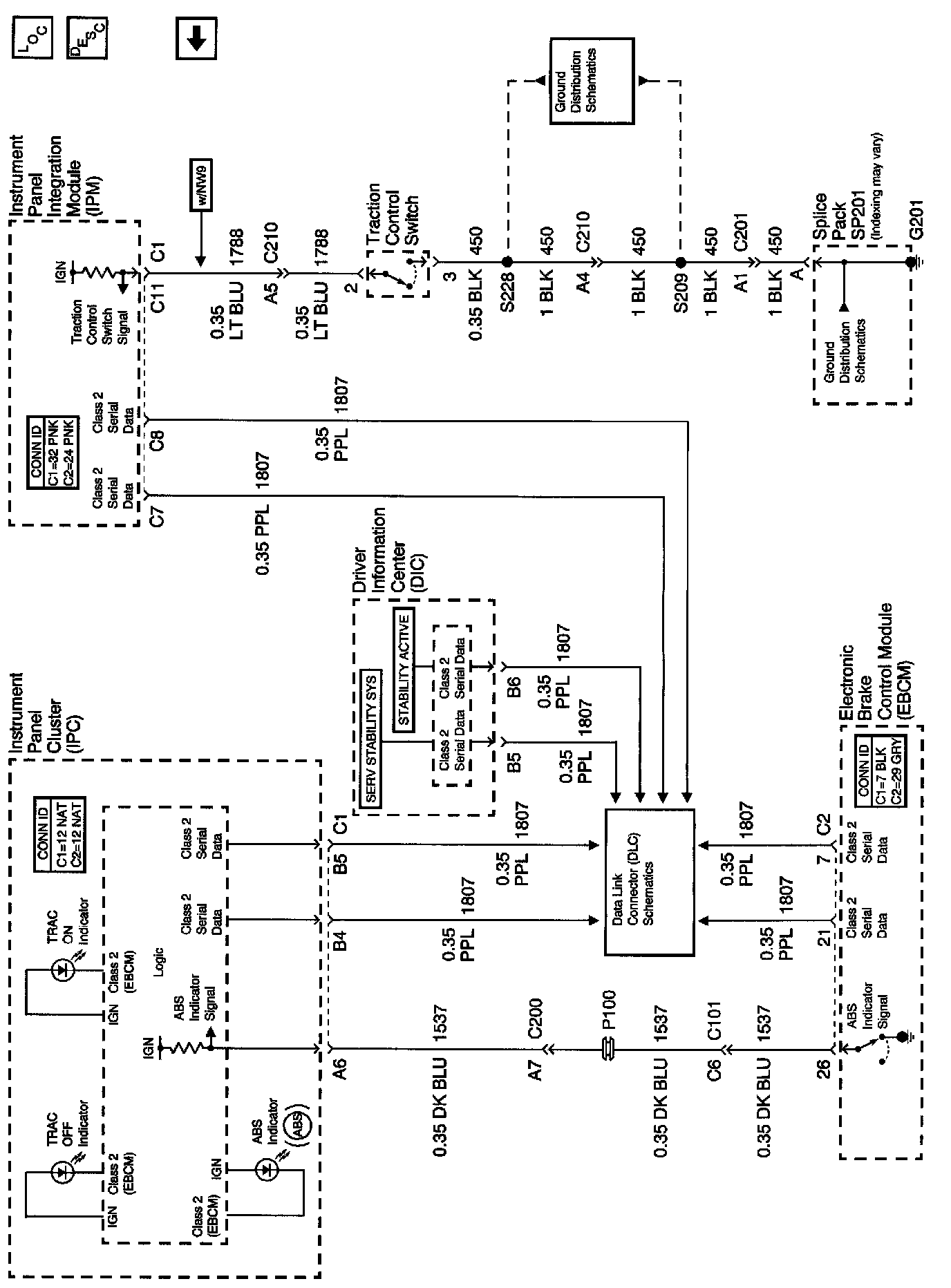

ABS Schematics (Indicators Traction Control Switch)
ABS Schematics (Indicators Traction Control Switch)
