Aurora V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>

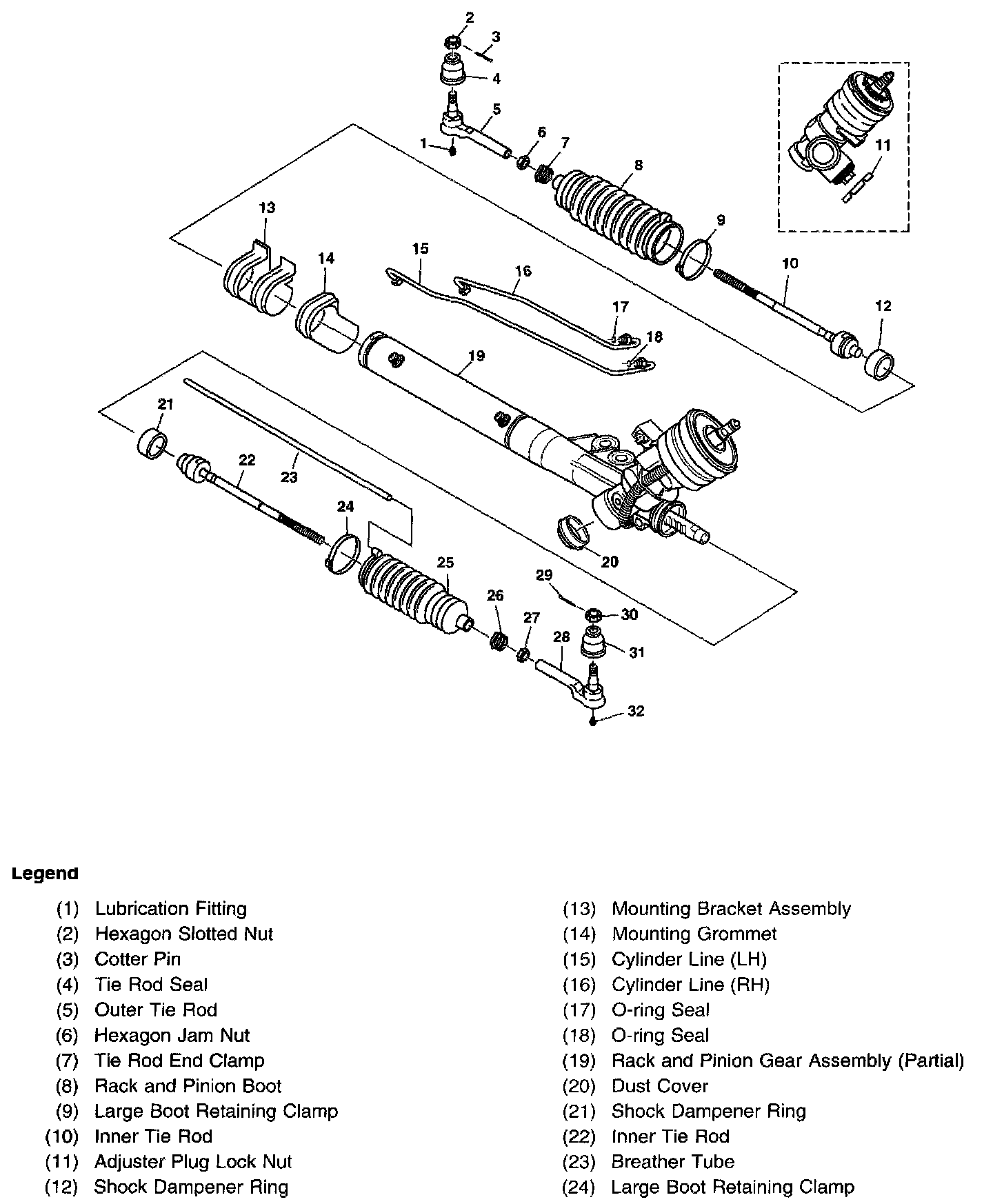

Steering Gear
Steering Gear
Power Steering Pump
Disassembled View (Magnasteer
Part 1 of 2
Part 2 of 2
