Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
2002
>>
Aurora V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>
Master Splice/Splice Pack List
Master Splice/Splice Pack List

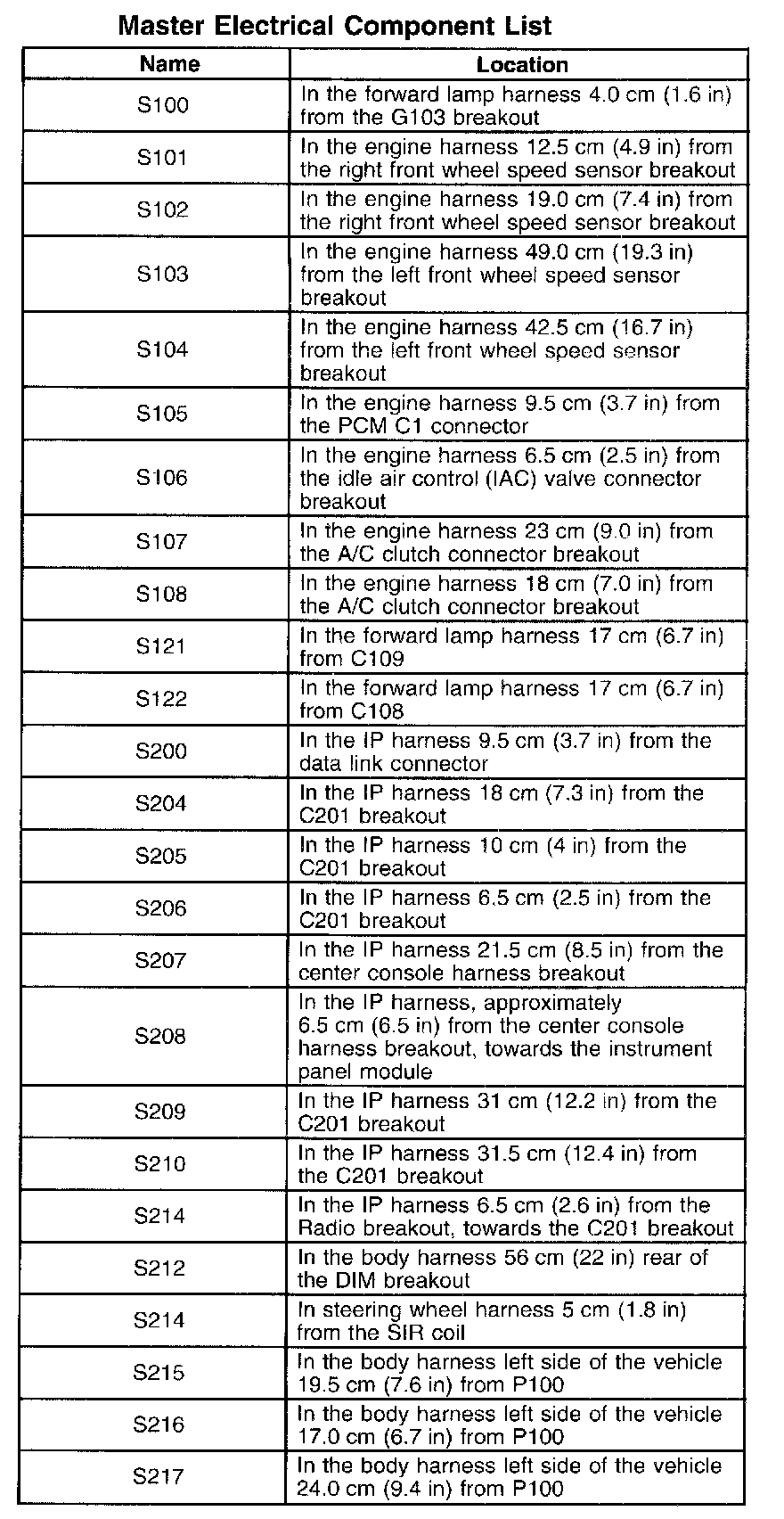

S100 - S217:

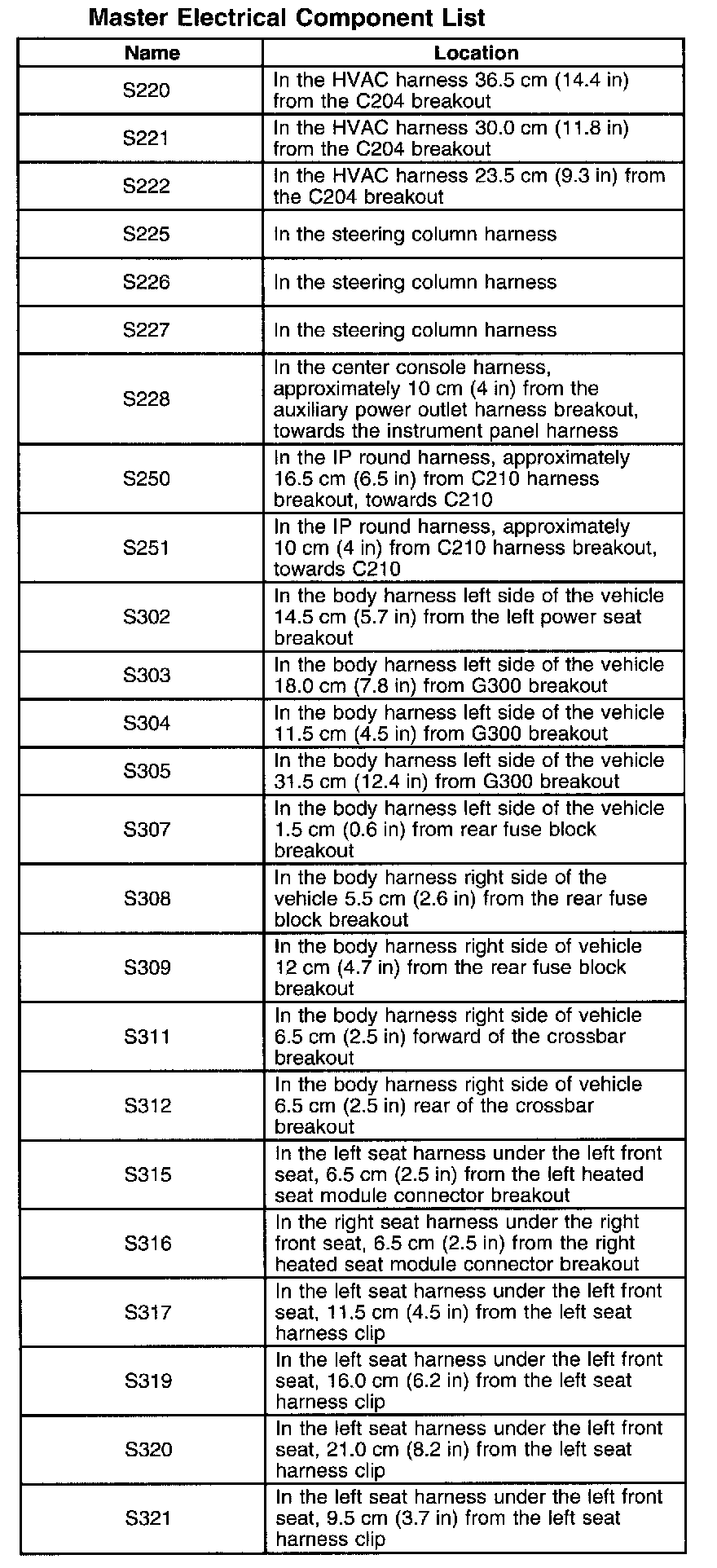

S220 - S321:

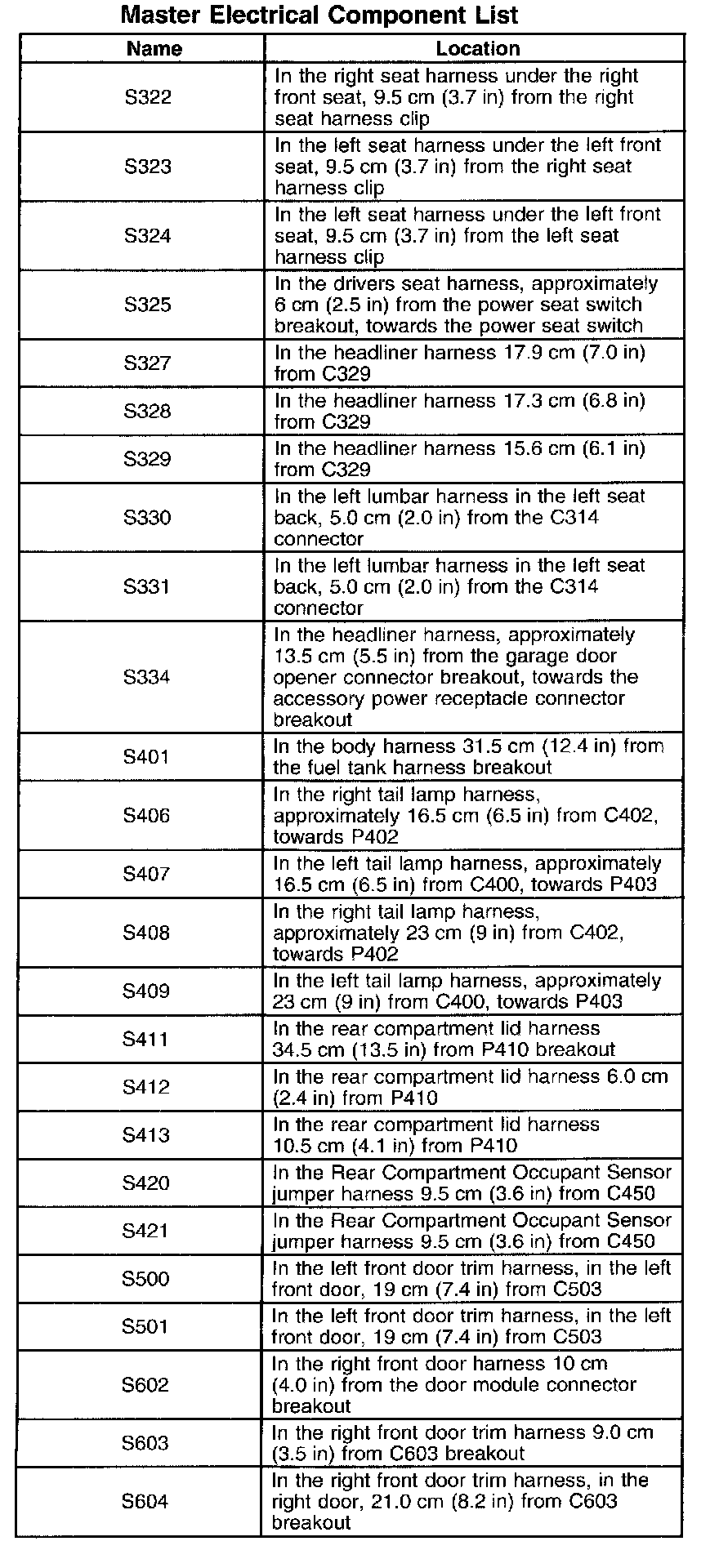

S322 - S604:

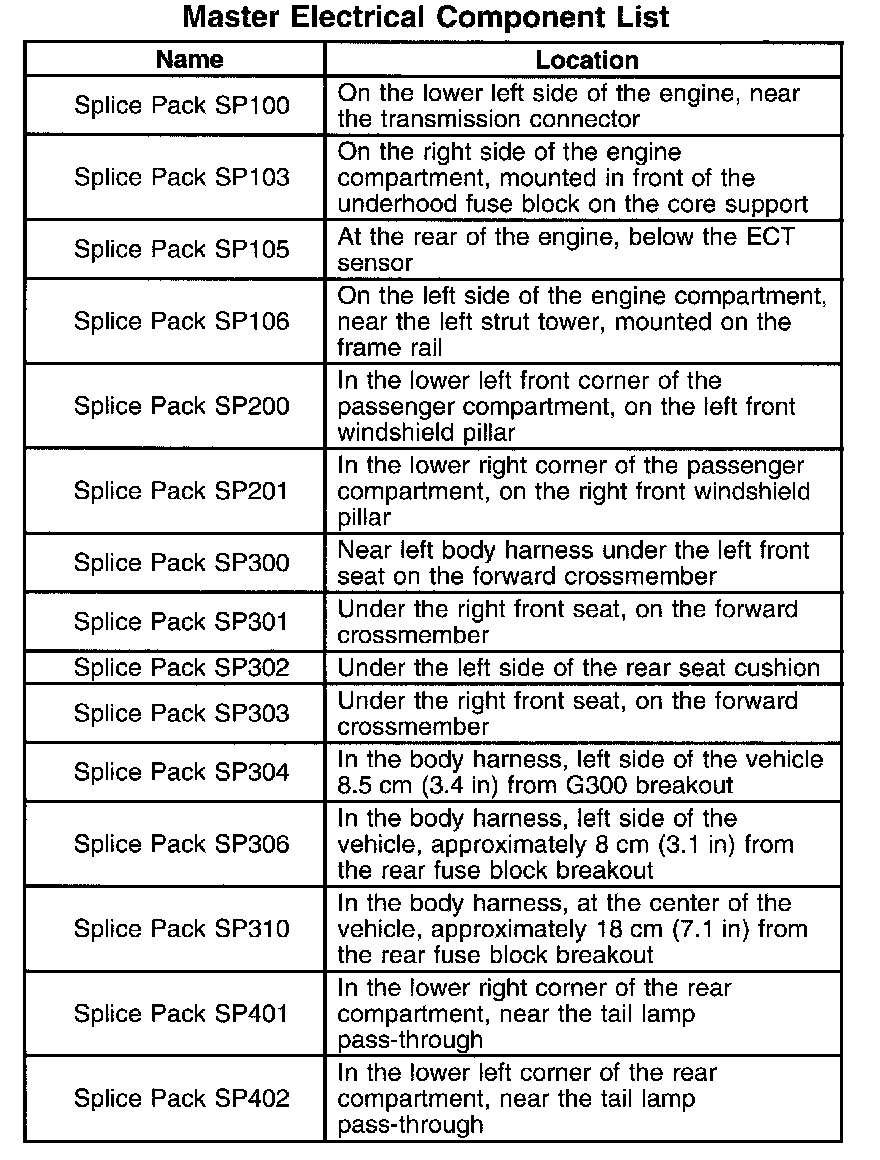

Splice Pack SP100 - Splice Pack SP402:
