97. Primary Timing Chain Guide Installation - Upper

Primary Camshaft Drive Chain Guide Installation - Upper

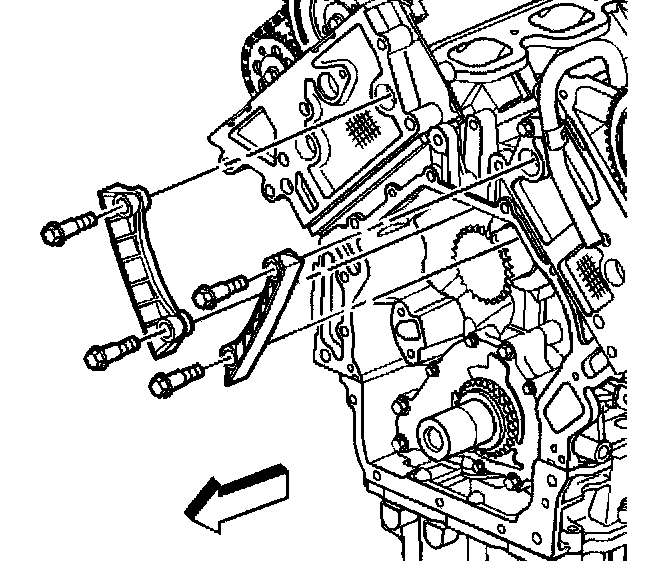

1. Install the upper primary camshaft drive chain guides.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the upper primary camshaft drive chain guides bolts.
^ Tighten the upper primary camshaft drive chain guides bolts to 30 Nm (22 ft. lbs.).
