Air Temperature Door Replacement - Right

REMOVAL PROCEDURE




1. Remove the HVAC Module.
2. Remove the mode actuator screws.
3. Remove the recirculation actuator screws.
4. Remove the recirculation actuator.
5. Remove the right temperature actuator.
6. Remove the right temperature actuator screws.
7. Remove the left temperature actuator.
8. Remove the left temperature actuator screws.
9. Remove the screws that retain the mode actuator bracket.
10. Remove the mode actuator bracket.
11. Remove the upper module case screws.

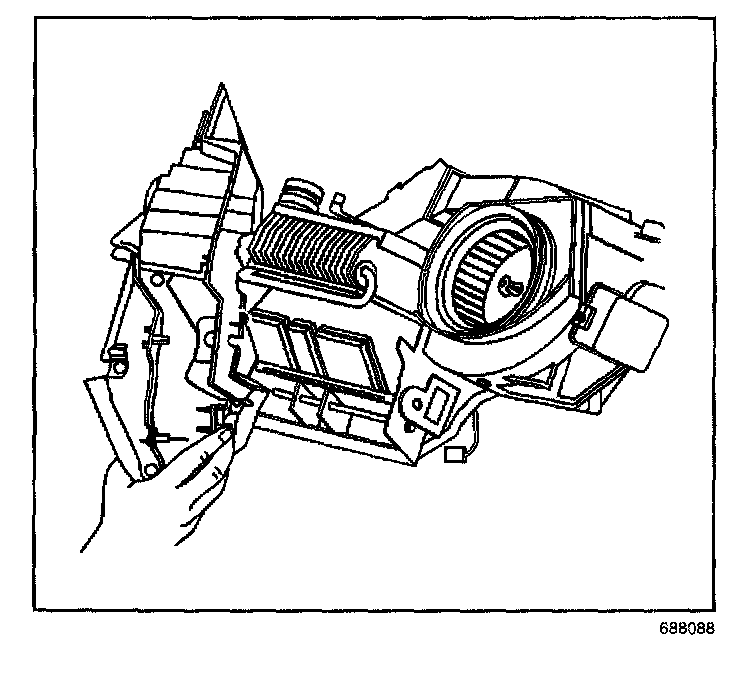

12. Peel back the foam from the heater inlet.




13. Remove the upper case.

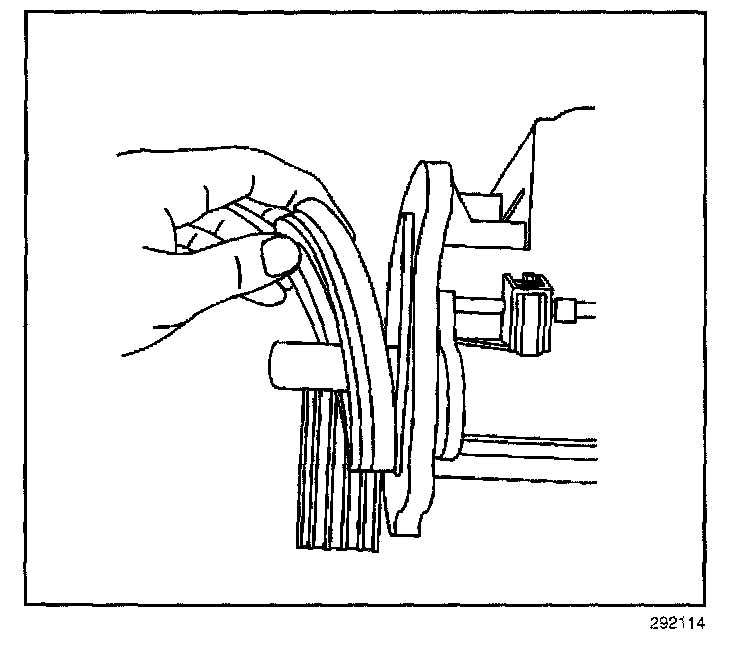

14. Remove the right temperature door.

INSTALLATION PROCEDURE

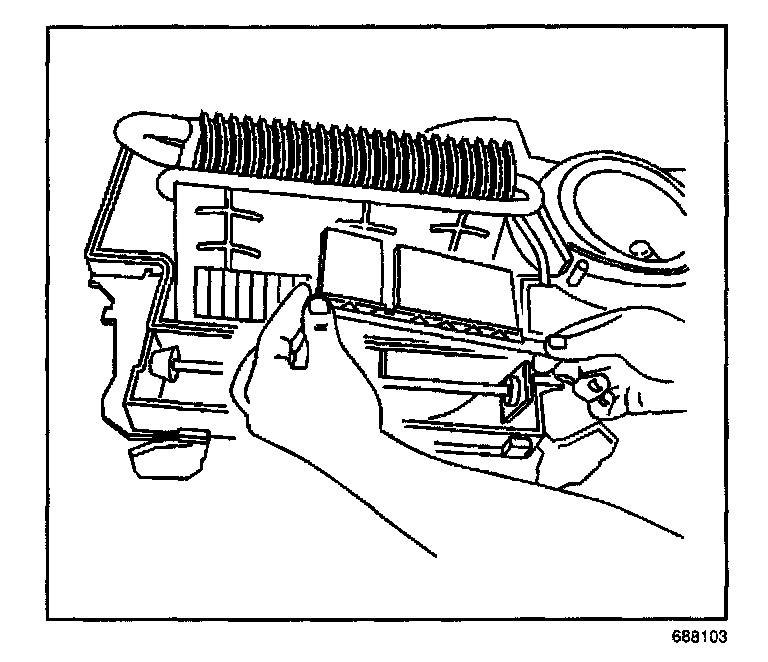

1. Install the right temperature door.




2. Install the upper module case.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the module case screws.

Tighten
Tighten the screws to 1.4 N.m (12 lb in).




4. Reapply the foam to the heater inlet.
5. Install the mode actuator and bracket.
6. Install the left temperature actuator.
7. Install the left temperature actuator screws.

Tighten
Tighten the screws to 1.4 N.m (12 lb in).

8. Install the right temperature actuator.
9. Install the right temperature actuator screws.

Tighten
Tighten the screws to 1.4 N.m (12 lb in).

10. Install the recirculation actuator.
11. Install the recirculation actuator screws.

Tighten
Tighten the screws to 1.4 N.m (12 lb in).

12. Install the HVAC module.
