Connector Views

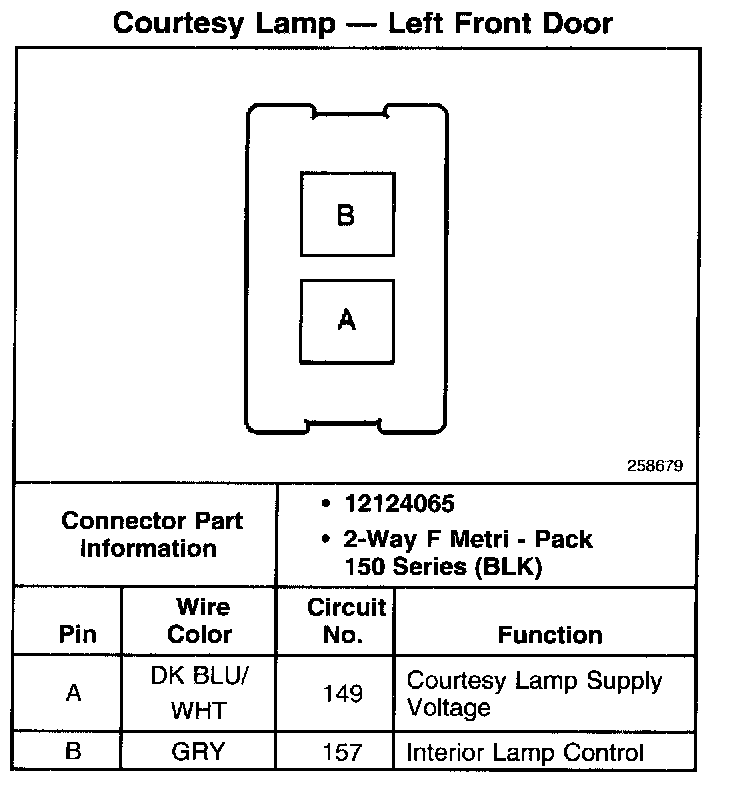

Courtesy Lamp - Left Front Door:

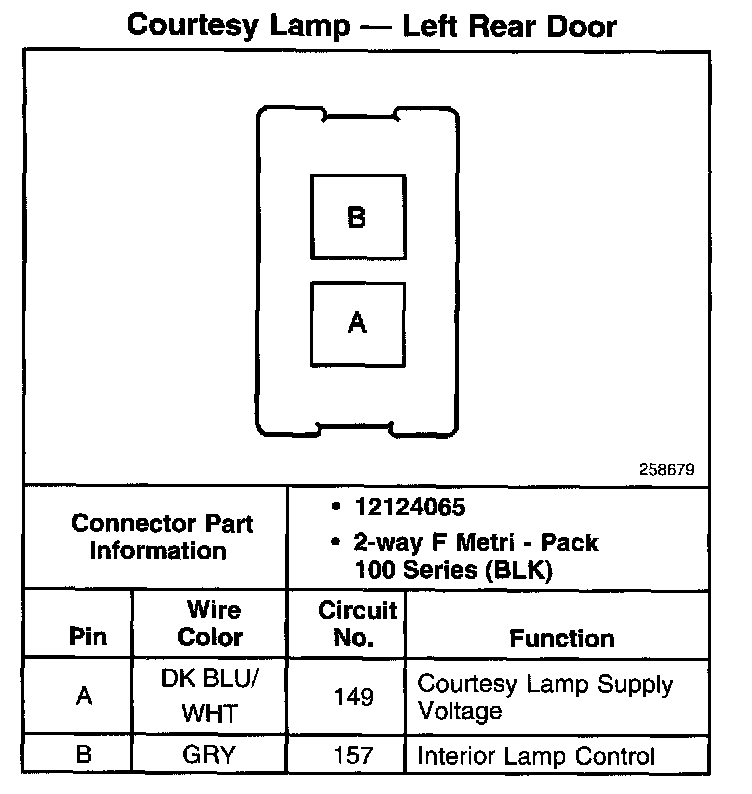

Courtesy Lamp - Left Rear Door:

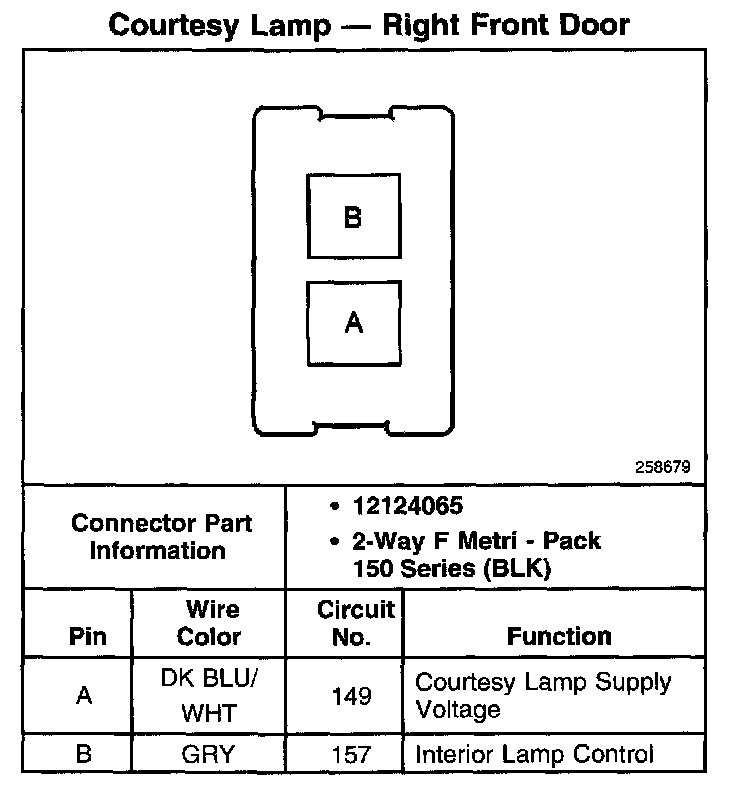

Courtesy Lamp - Right Front Door:

Courtesy Lamp - Rear Compartment:

Courtesy Lamp - Right Rear Door:

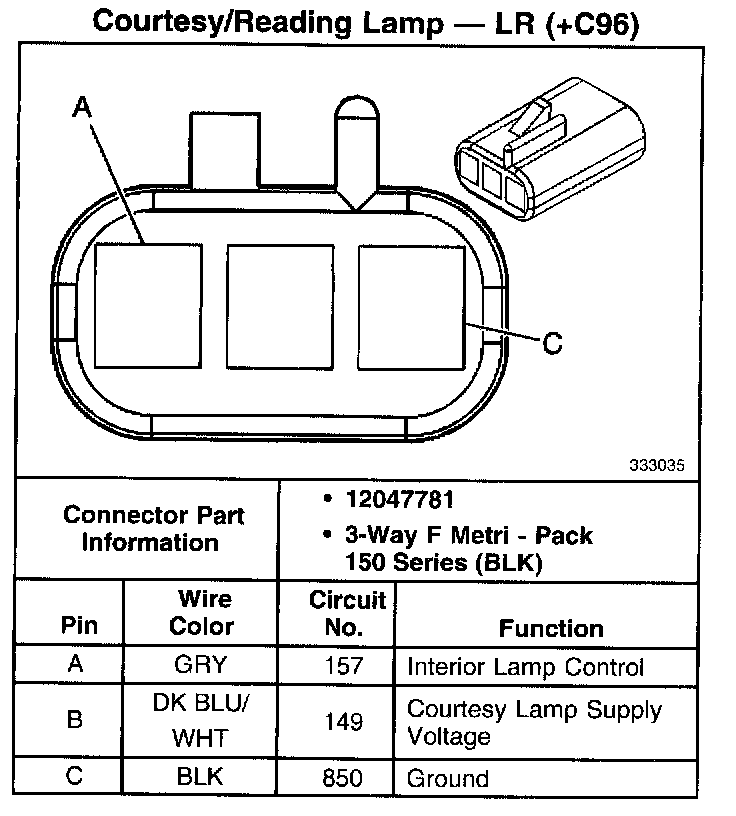

Courtesy/Reading Lamp - LR (+C96):

Courtesy/Reading Lamp - RR (W/C96):

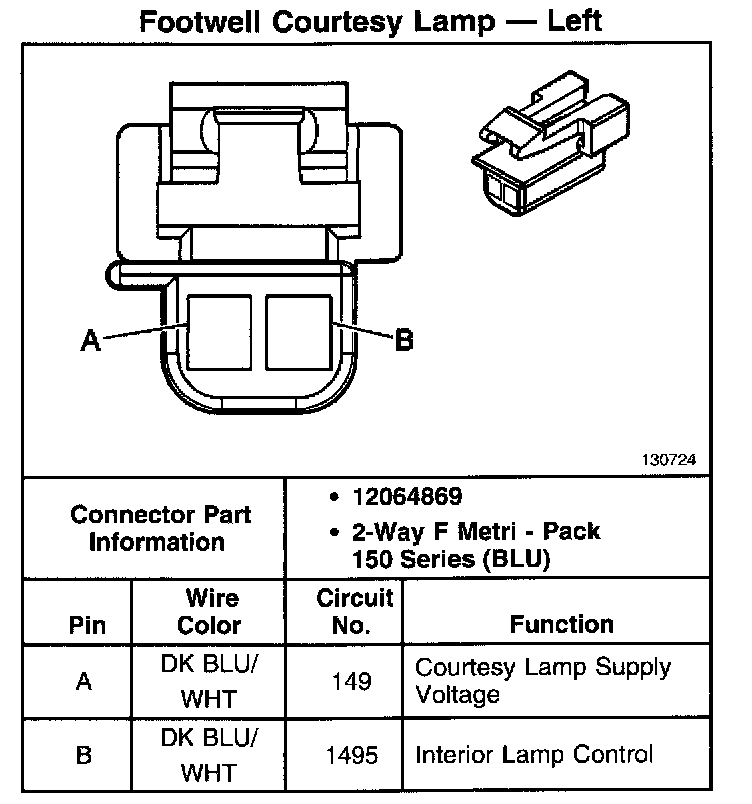

Footwell Courtesy Lamp - Left:

Footwell Courtesy Lamp - Right:

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application". RPO Codes
