Home >> Oldsmobile >> 2002 >> Aurora V6-214 3.5L VIN H SFI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Thread Repair Specifications >> Engine Block Rear

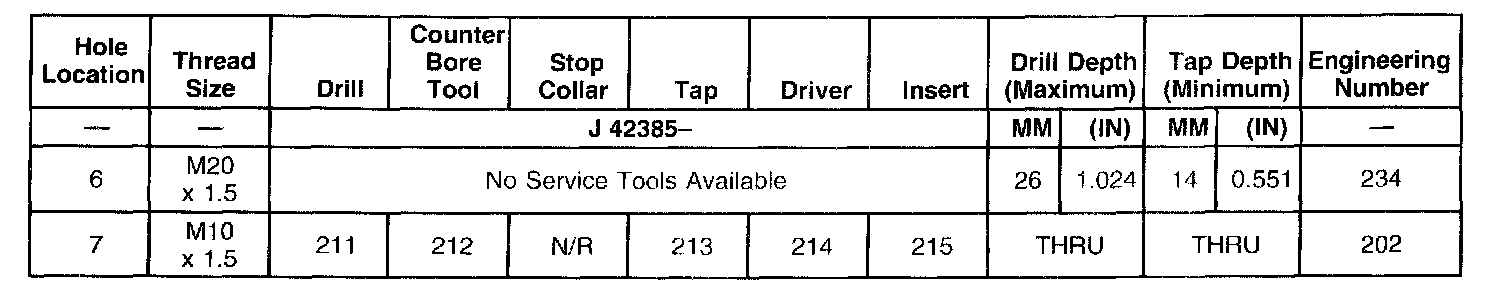

Engine Block Rear

Engine Block Rear

Part 1 of 2

Part 2 of 2
