Instrument Panel Module (IPM)
Instrument Panel Module (IPM) C1 Part 1:
Instrument Panel Module (IPM) C1 Part 2:

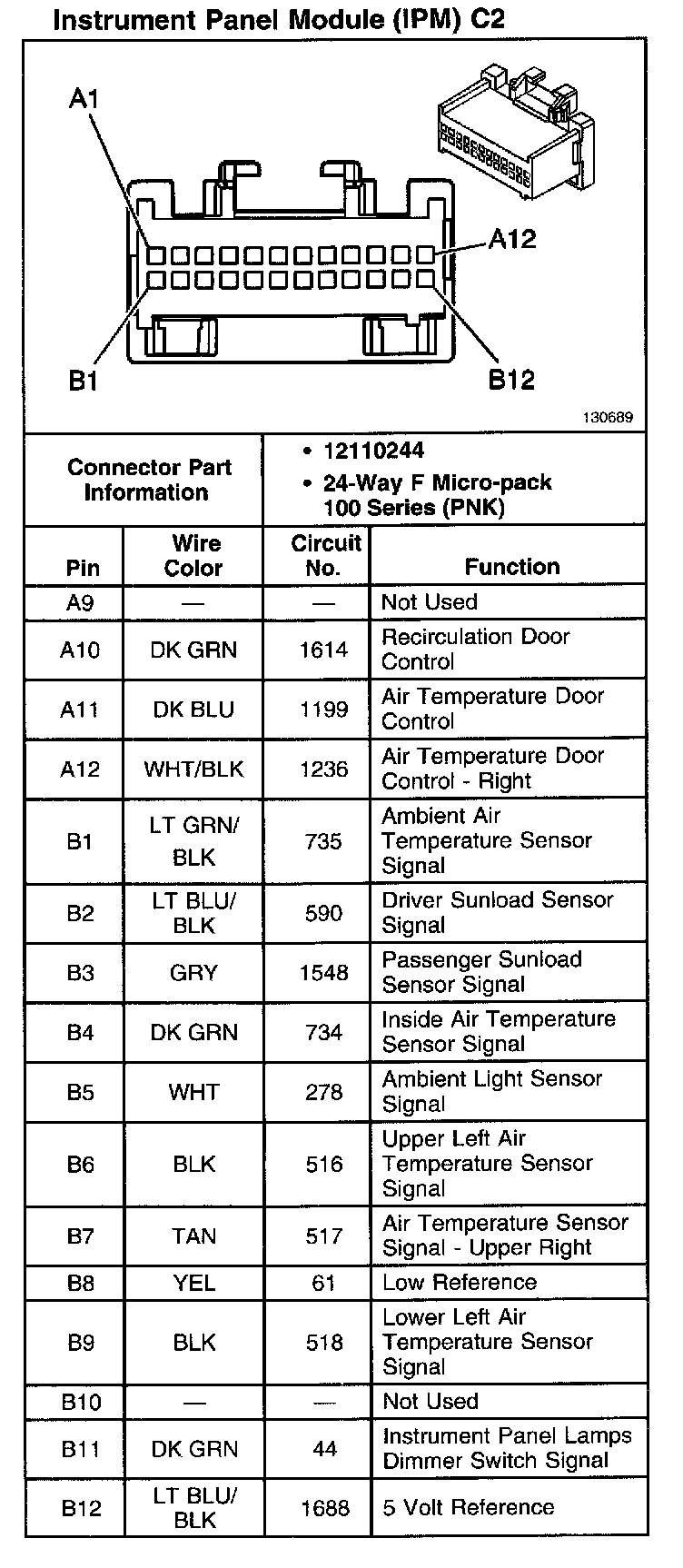

Instrument Panel Module (IPM) C2:
