Connector Views
Connector Views

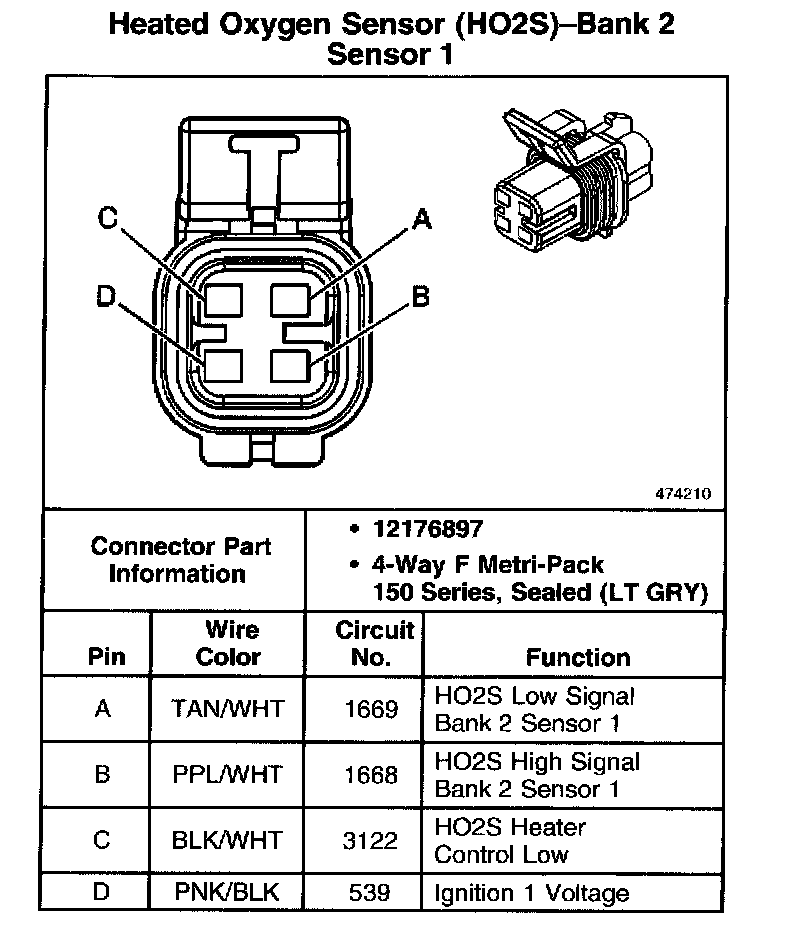

Heated Oxygen Sensor (H02S)-Bank 2 Sensor 1:

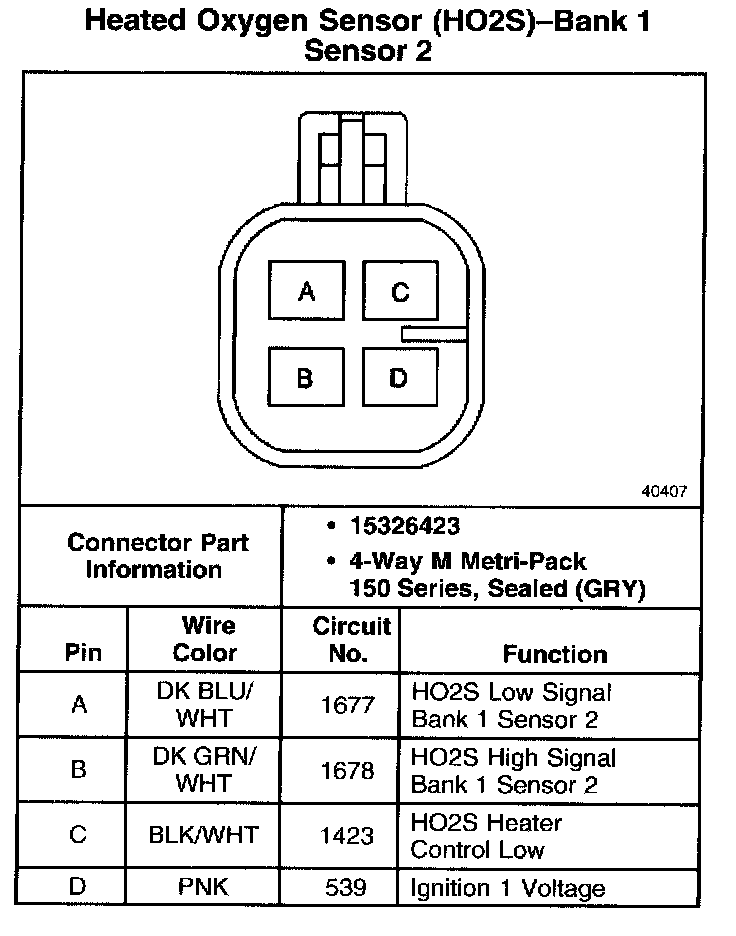

Heated Oxygen Sensor (H02S)-Bank 1 Sensor 2:

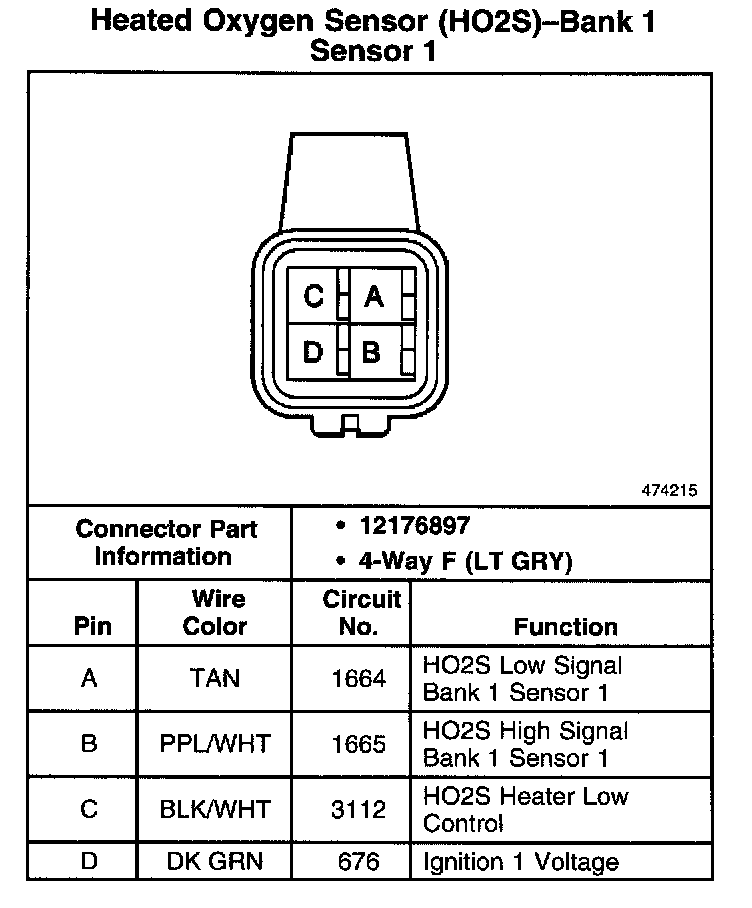

Heated Oxygen Sensor (HO2S)-Bank 1 Sensor 1:
