Transmission

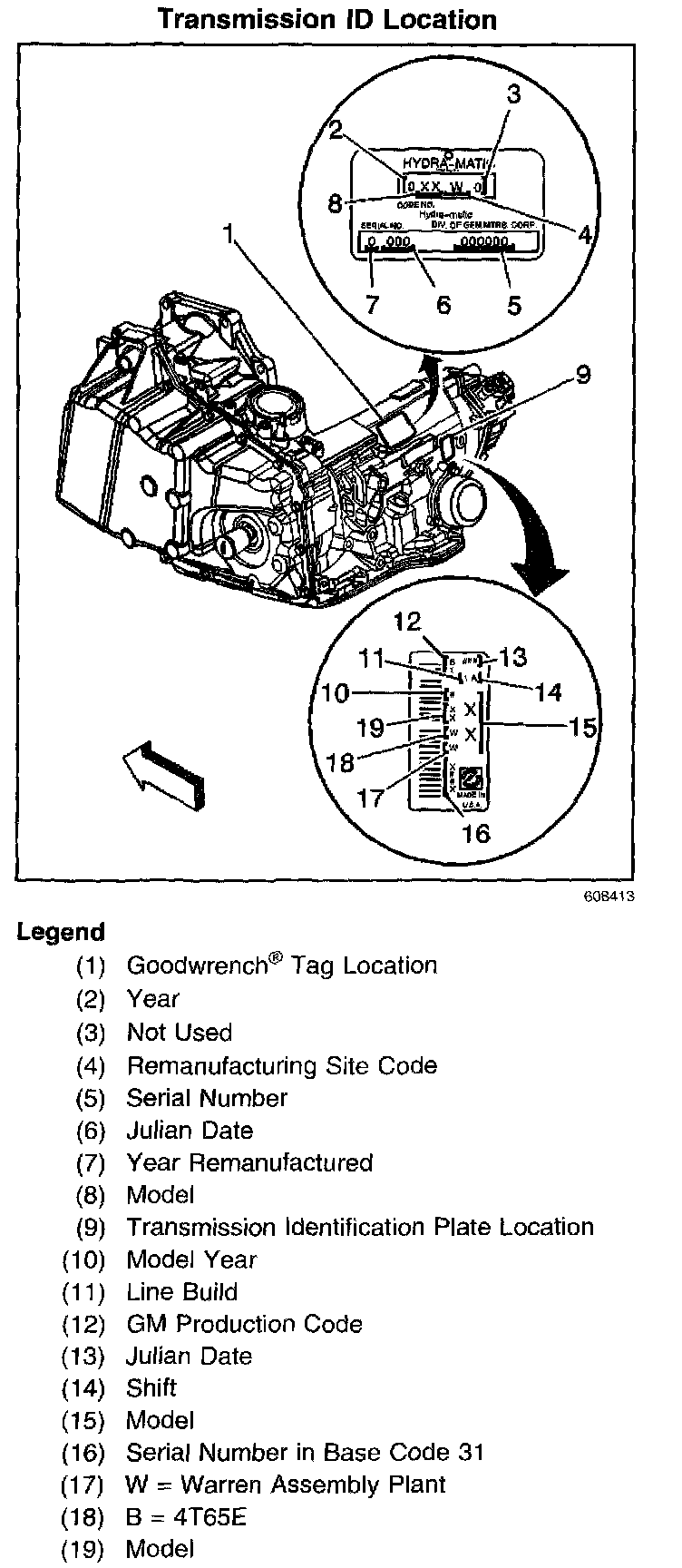

Transmission ID Location:




All automatic transmissions have a metal identification (ID) nameplate (9) attached to the case exterior.

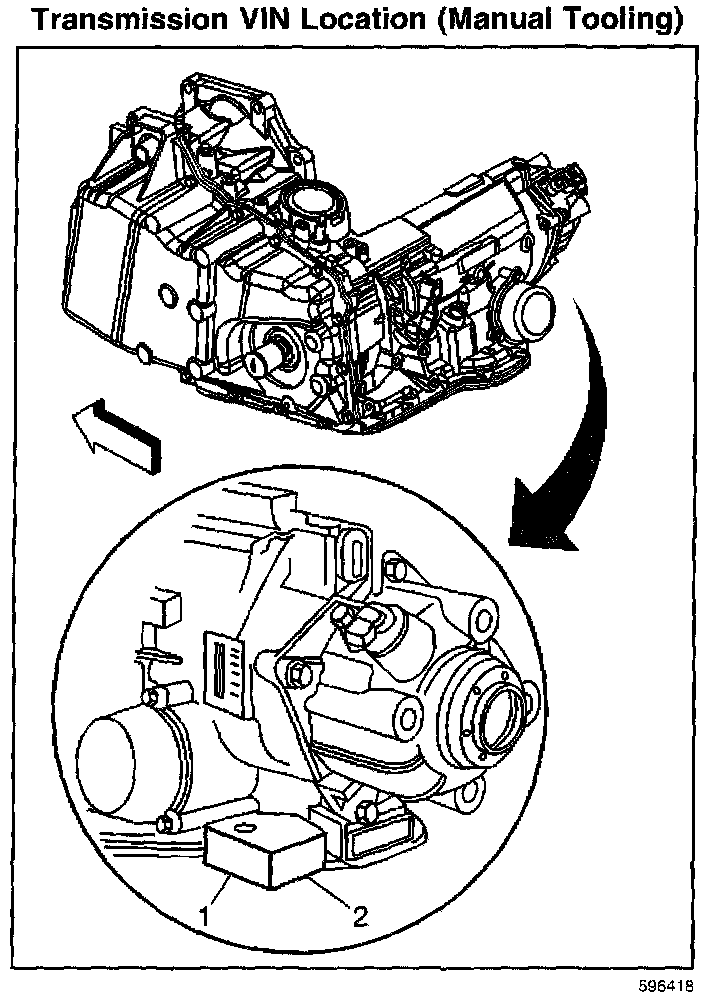

Transmission VIN Location (Manual Tooling):




The primary (1) and secondary (2) Manual Tooling Vin Derivative Locations are on the casting of the transmission housing.

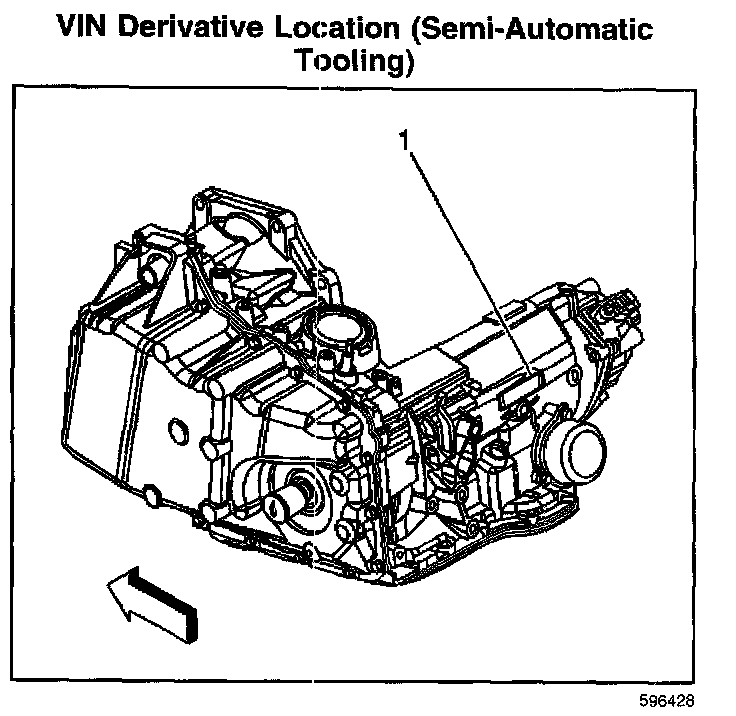

VIN Derivative Location (Semi-Automatic Tooling):




The location for the Semi-Automatic Vin Derivative Location (1) is on the transmission housing.
