Sunroof / Moonroof: Adjustments

Sunroof Panel Vertical Adjustment





1. Slide the sunroof sunshade to the open position.
2. Position the sunroof glass panel to the full closed position.

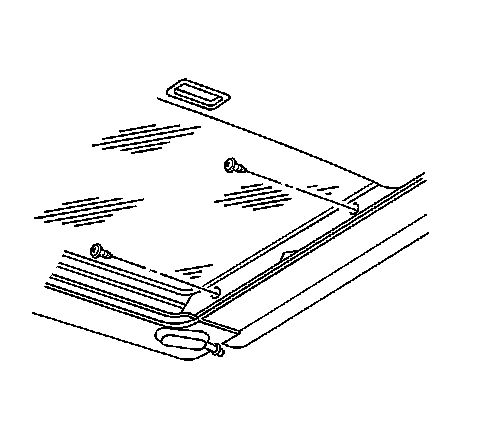

3. Separately loosen the sunroof glass panel screws.




4. Individually adjust the 4 corners of the sunroof glass panel.
5. Adjust the front of the sunroof glass panel. Ensure that the sunroof glass panel front (3) is 0.5 mm (0.020 in) below the top surface of the roof panel. Also, the sunroof glass panel seal (1) is centered.
6. Adjust the rear of the sunroof glass panel. Ensure that the rear of the sunroof glass panel (2) is 0.5 mm (0.020 in) above the top surface of the roof panel.




7.
Notice: Refer to Fastener Notice in Cautions and Notices.

Tighten the sunroof glass panel to sunroof module screws.

Tighten the sunroof glass panel to sunroof module screws to 4 N.m (35 lb in).
