Oldsmobile
>>
2002
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

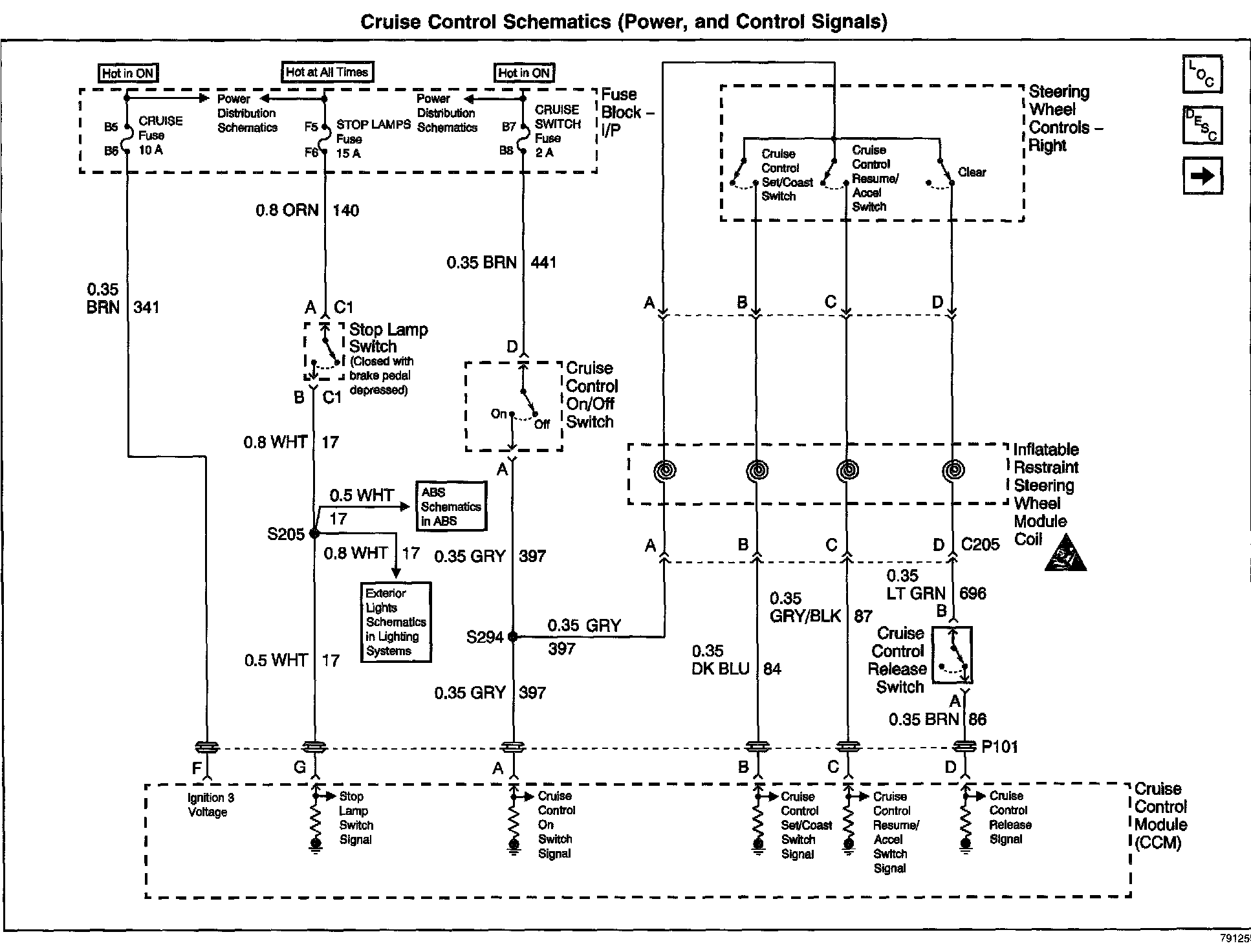

Cruise Control Schematics: Power, And Control Signals:

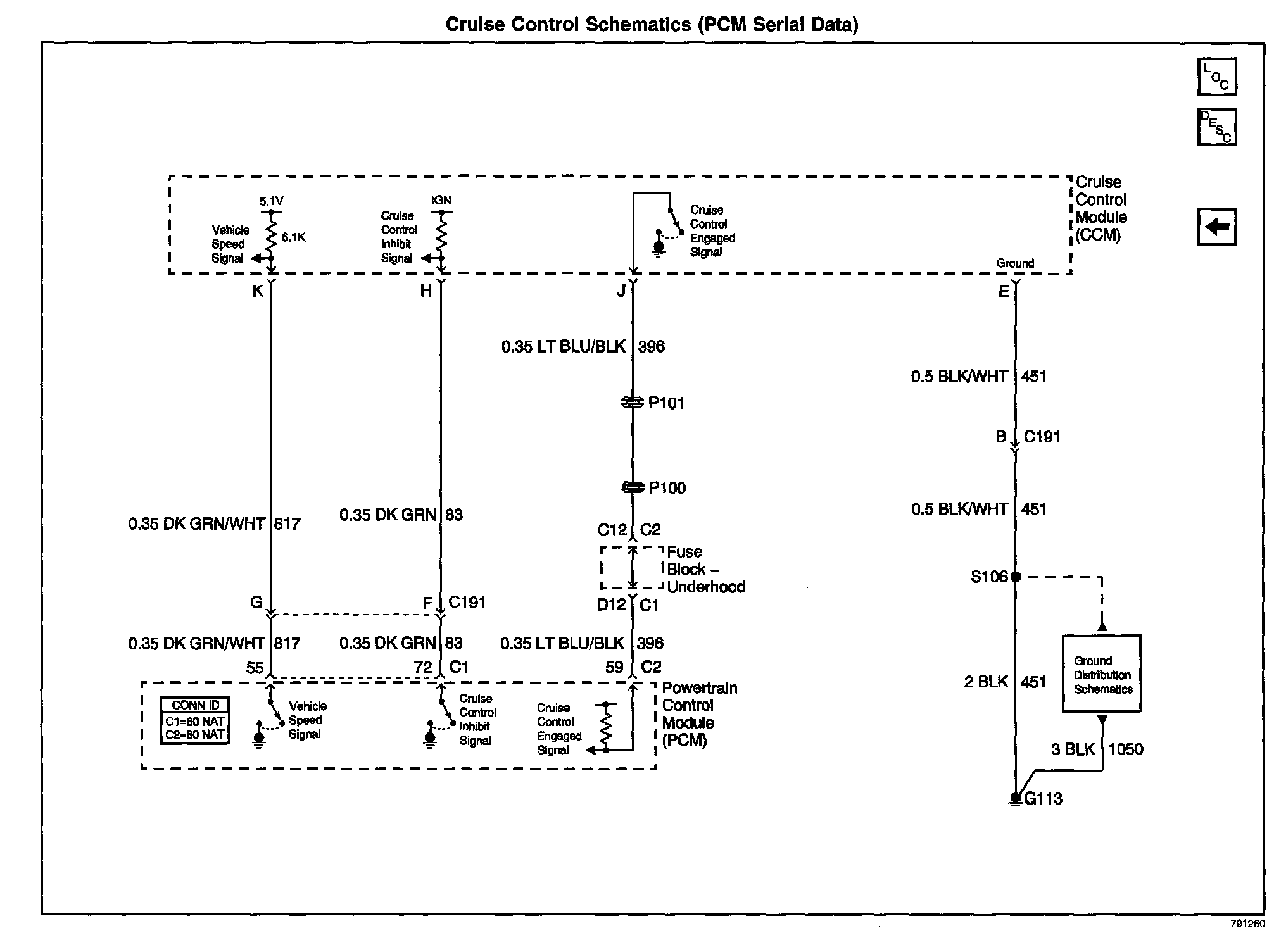

Cruise Control Schematics: PCM Serial Data:
