A - Z Master Electrical Component List

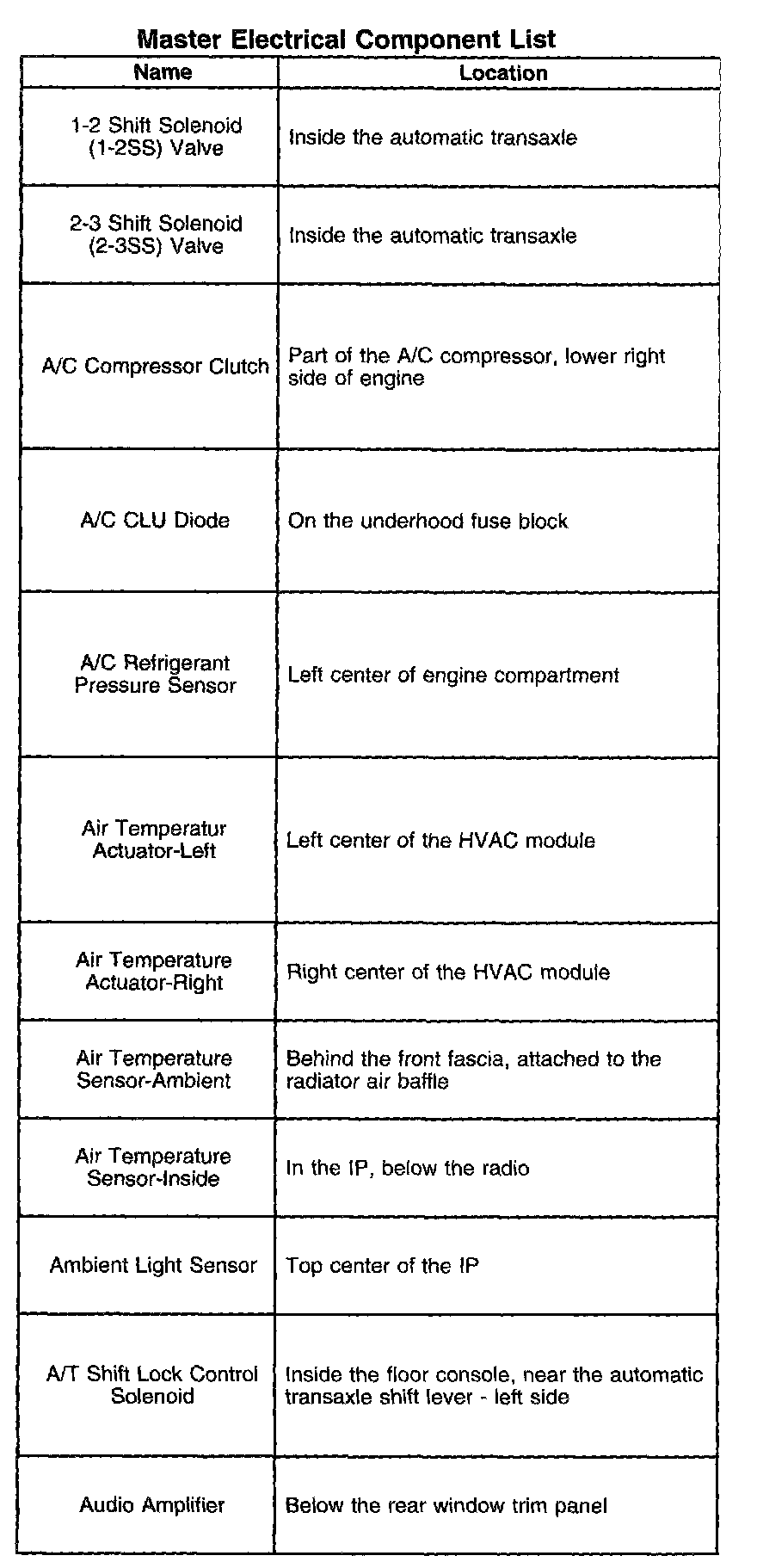

1-2 Shift Solenoid (1-2SS) Valve - Audio Amplifier:

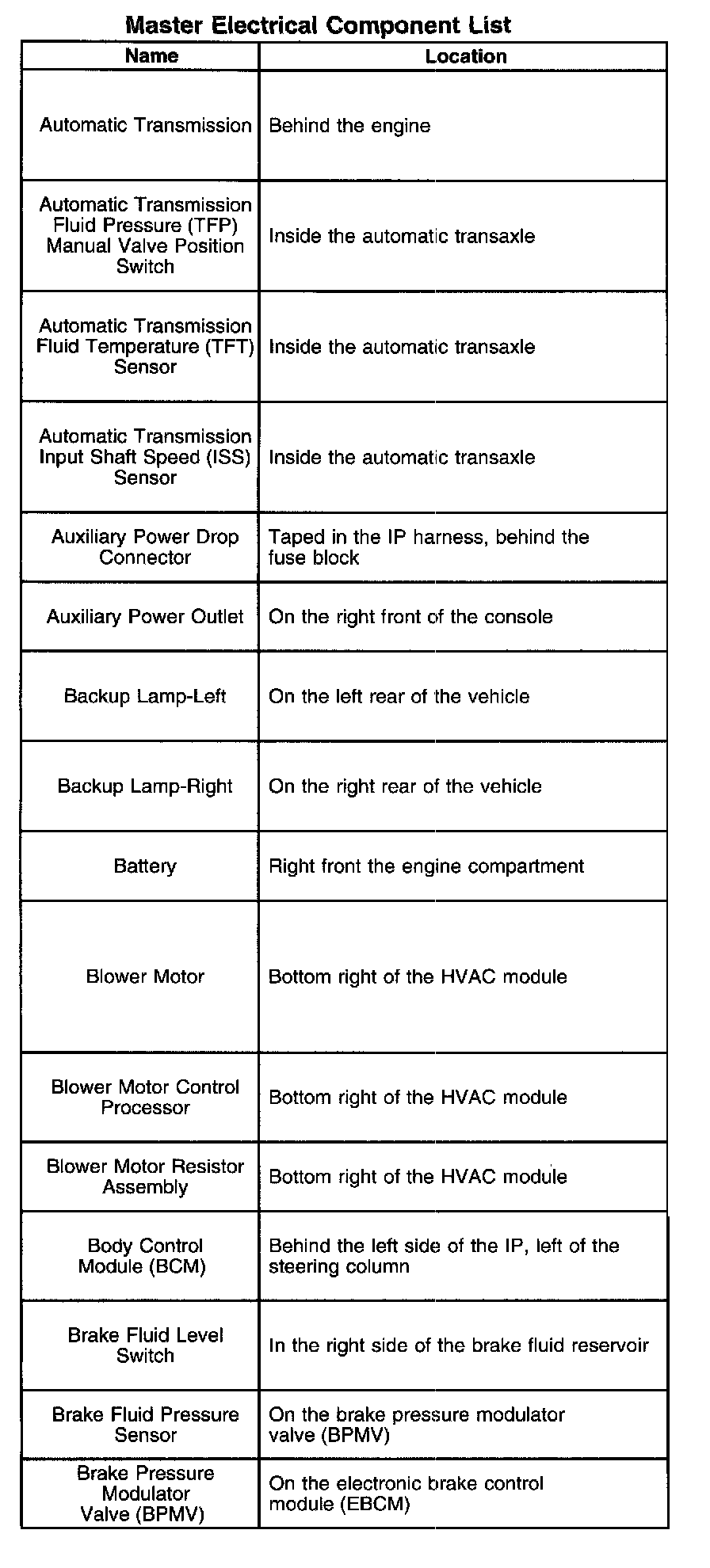

Automatic Transmission - Brake Pressure Modulator Valve (BPMV):

Camshaft Position (CMP) Sensor - Dimmer Switch:

Door Lock-Driver - Footwell Courtesy Lamp-Left:

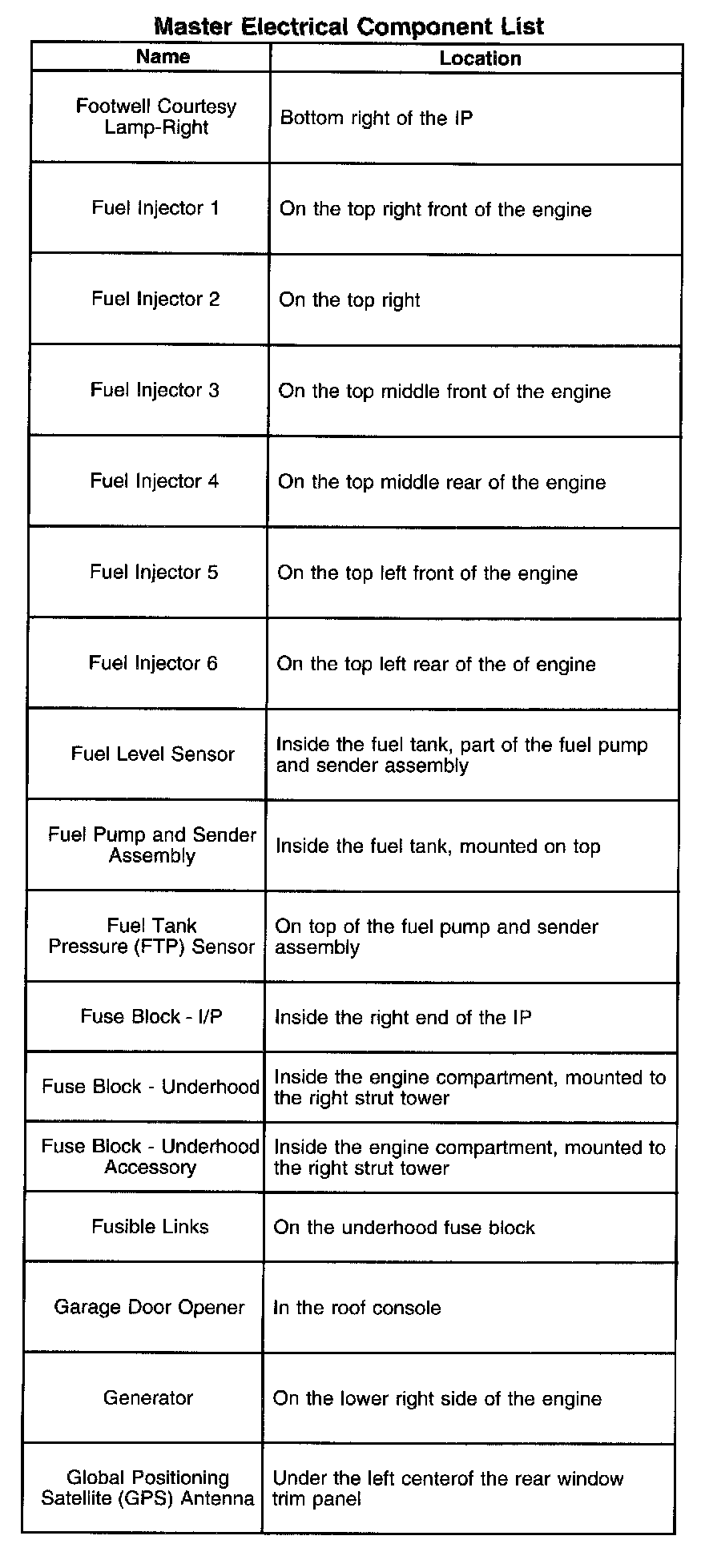

Footwell Courtesy Lamp-Right - Global Positioning Satellite (GPS) Antenna:

Hazard Switch - Horn Switch:

HVAC Control Module - I/P Compartment Lamp And Switch:

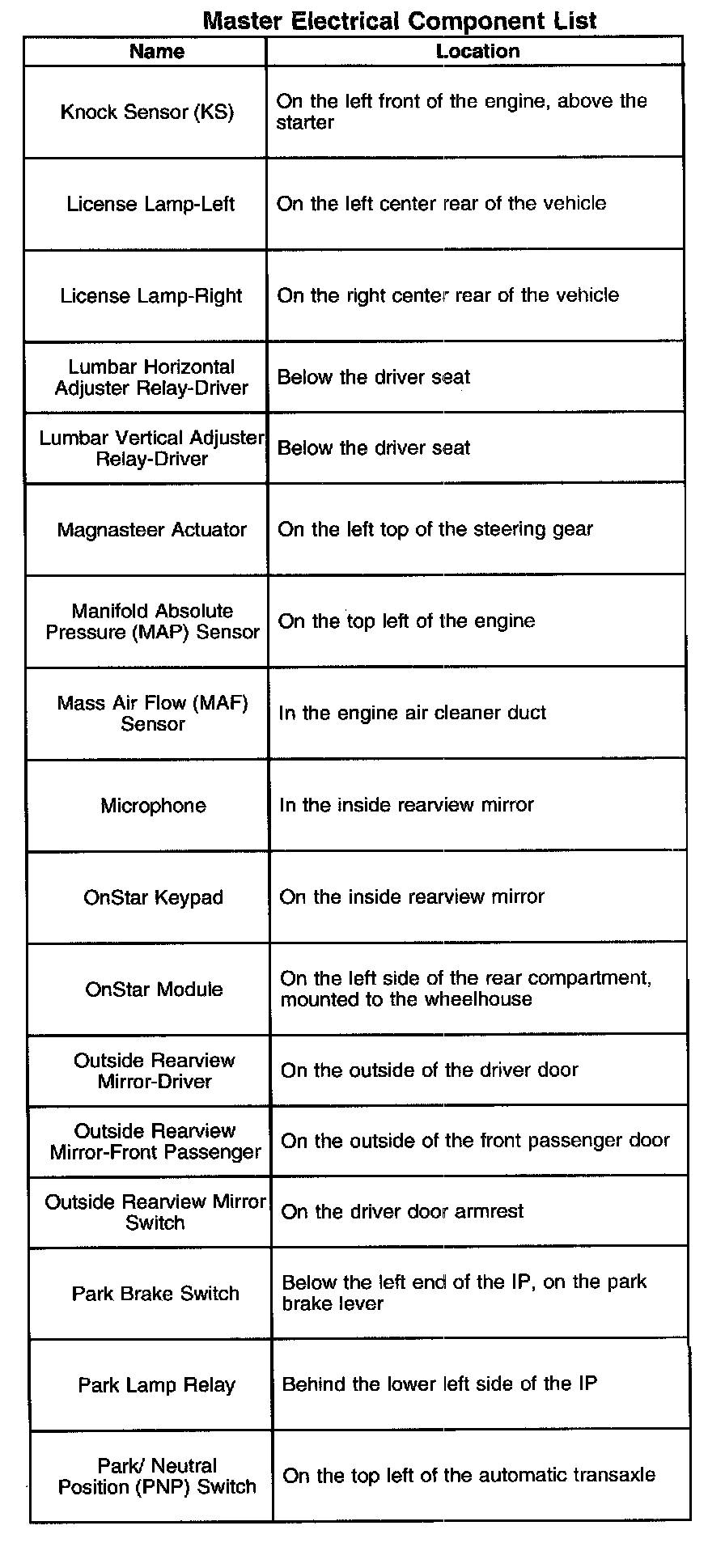

Knock Sensor (KS) - Park/Neutral Position (PNP) Switch:

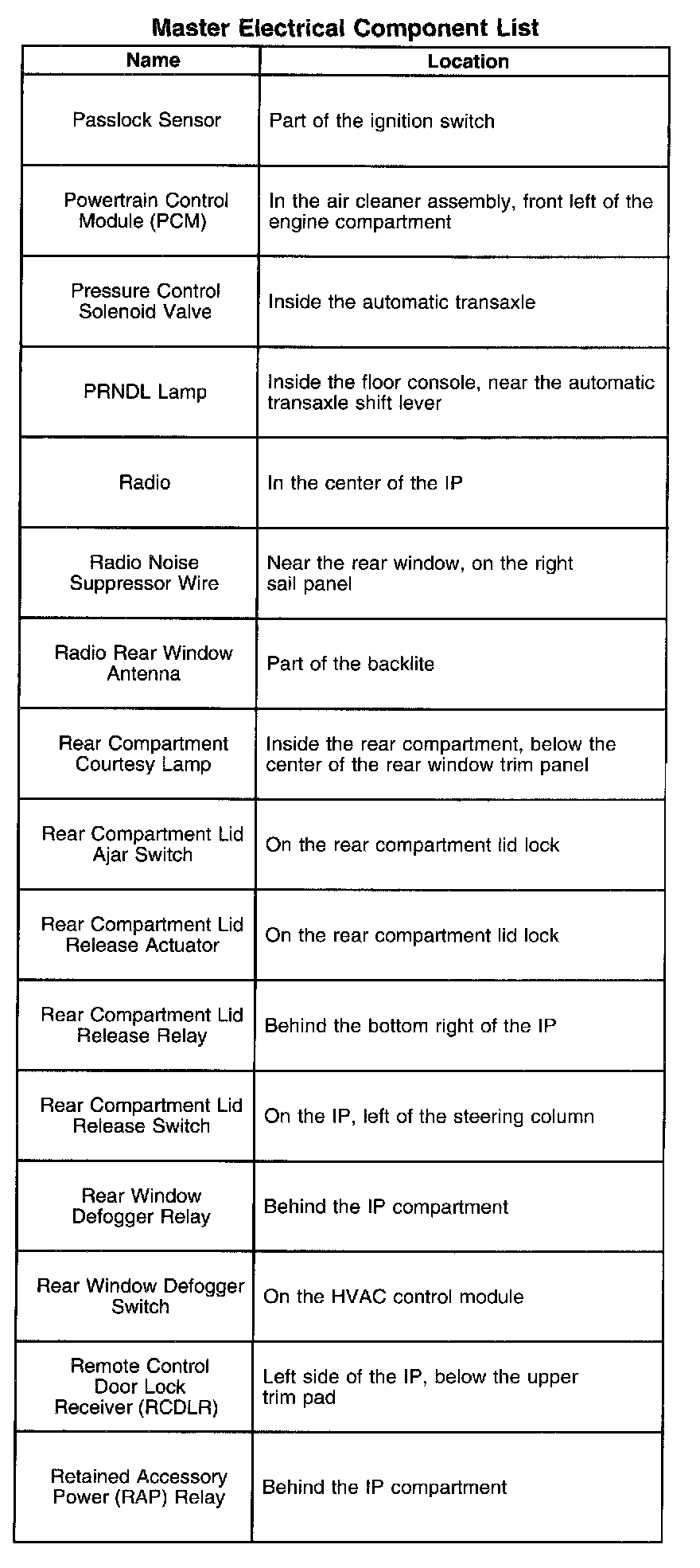

Passlock Sensor - Retained Accessory Power (RAP) Relay:

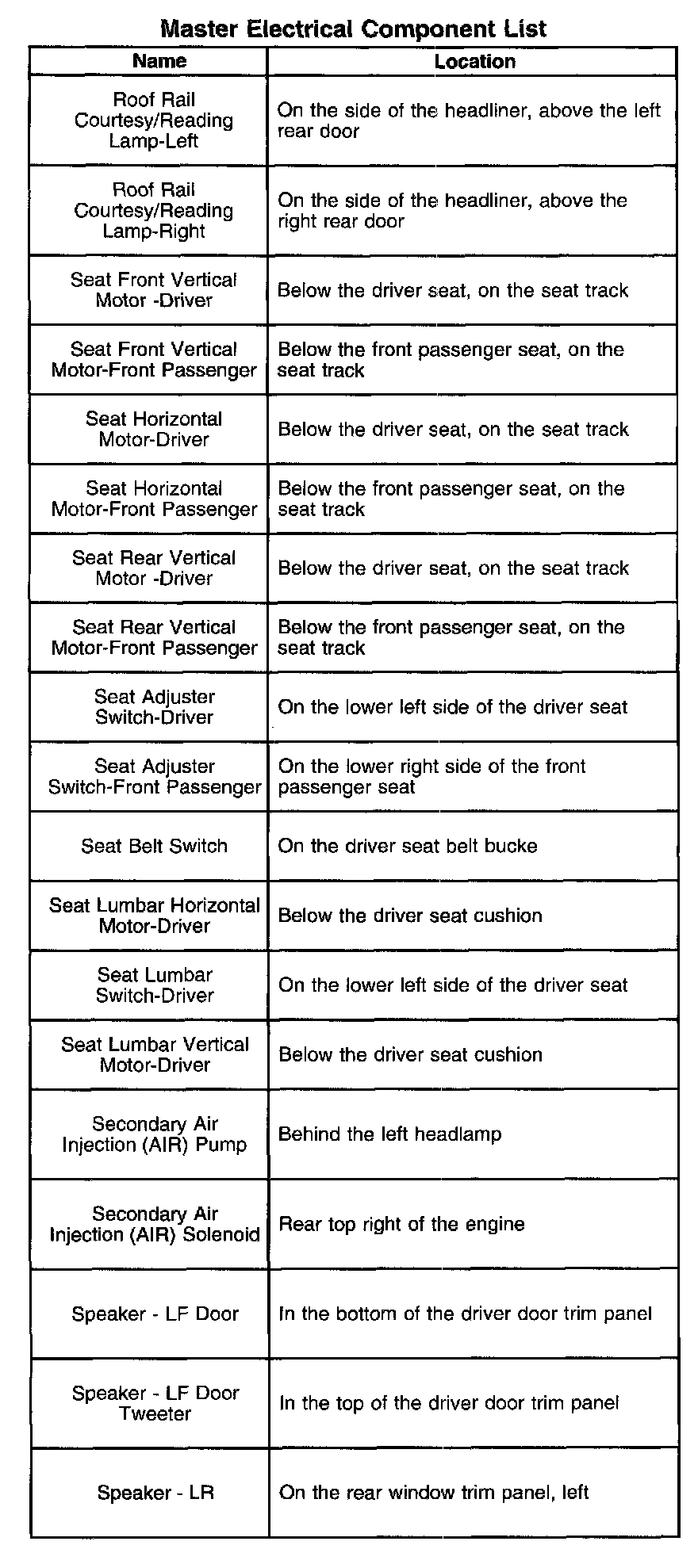

Roof Rail Courtesy/Reading Lamp-Left - Speaker- LR:

Speaker-RF Door - Tail Lamp-Right:

Throttle Position (TP) Sensor - Window Motor-Front Passenger:

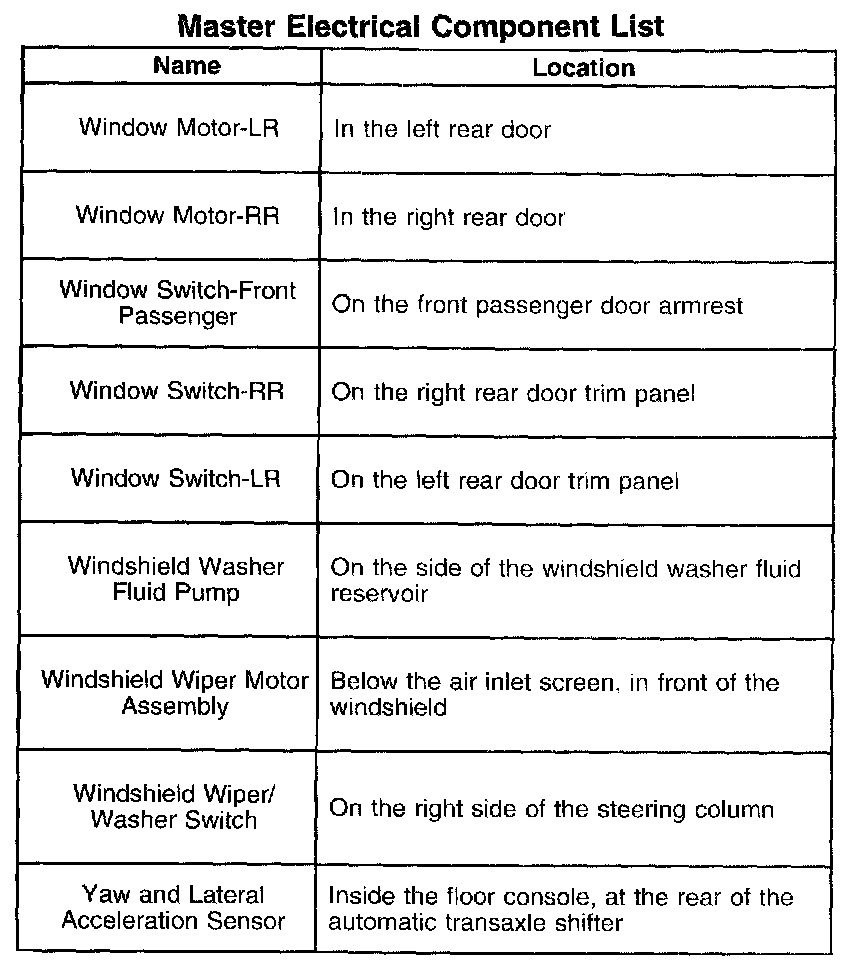

Window Motor-LR - Yaw And Lateral Acceleration Sensor:

For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application RPO Codes
