Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Sensors
>>

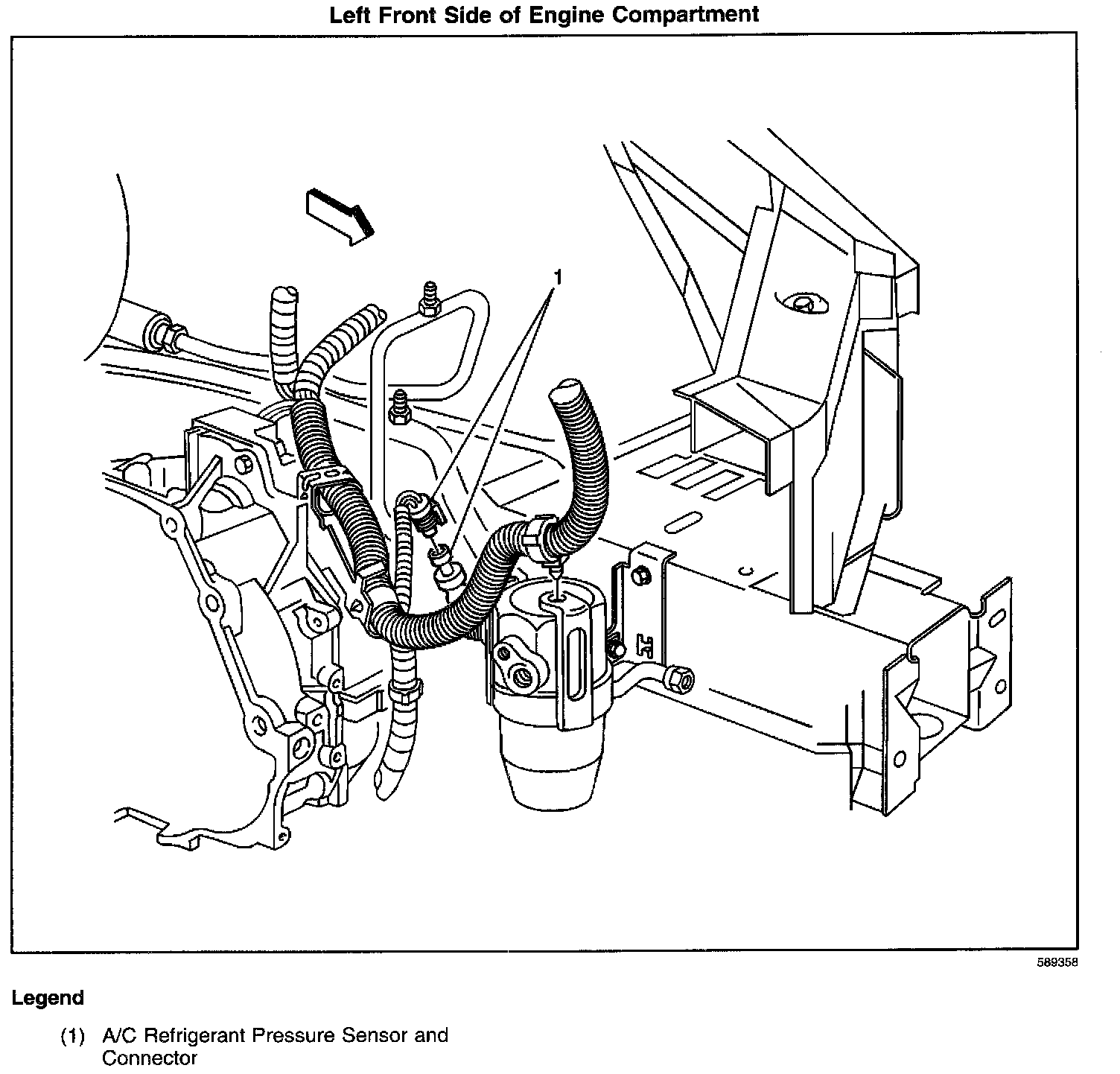

A/C Refrigerant Pressure Sensor and Connector
A/C Refrigerant Pressure Sensor and Connector
Locations View:
