Transmission Position Sensor/Switch, A/T

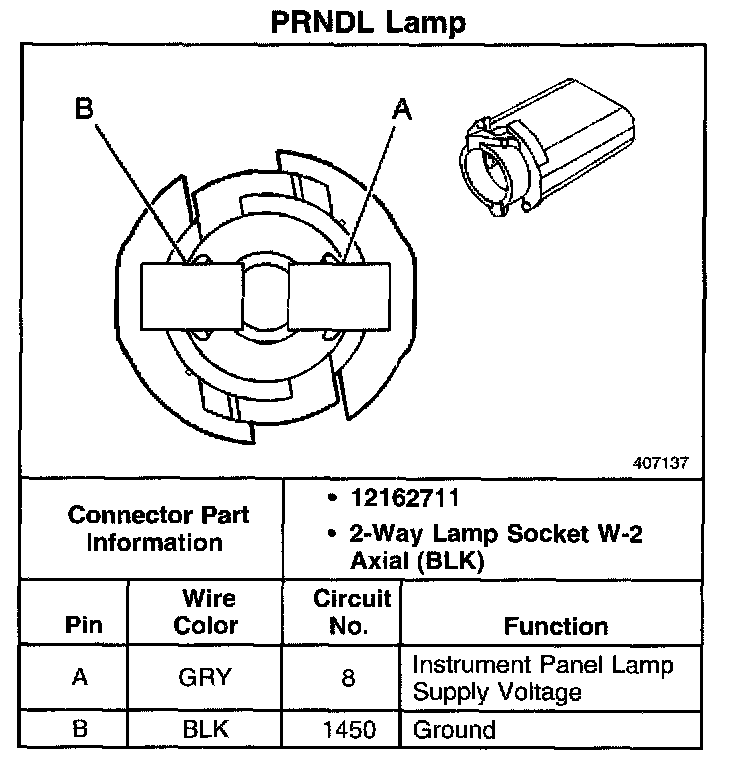

PRNDL Lamp:

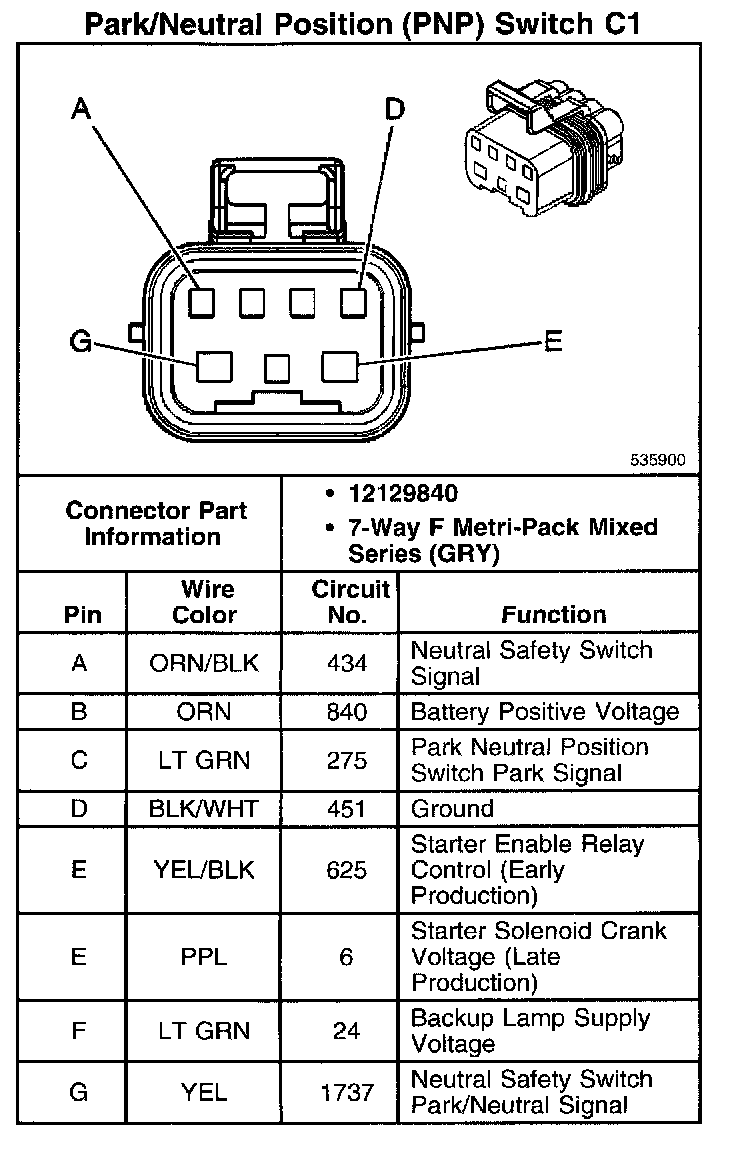

Park/Neutral Position (PNP) Switch C1:

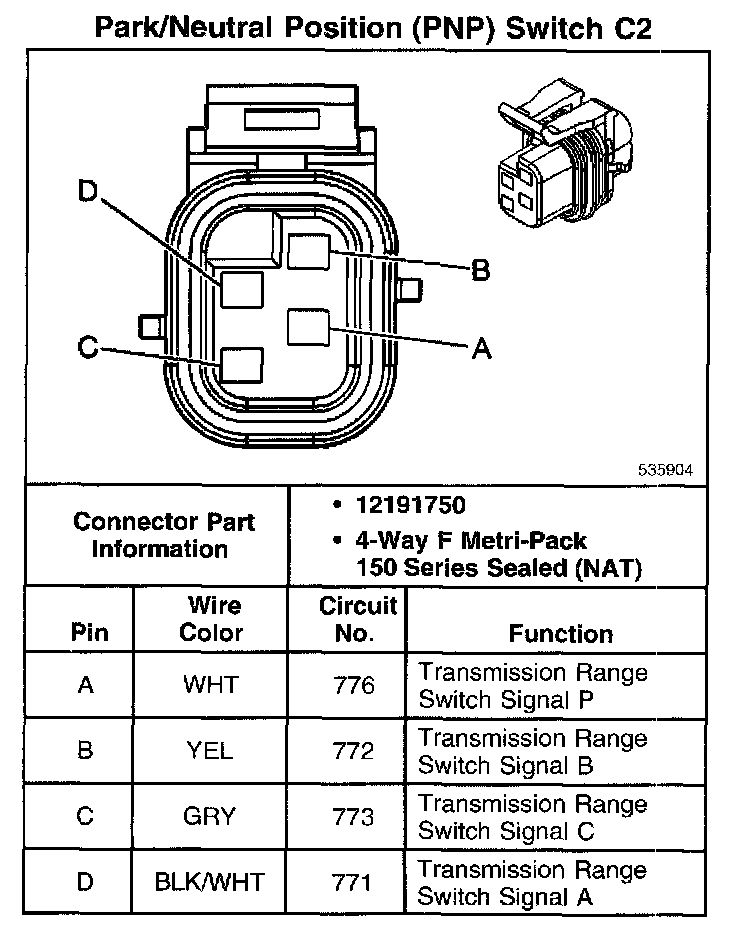

Park/Neutral Position (PNP) Switch C2:
