Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C112 - C196
>>
C172
C172

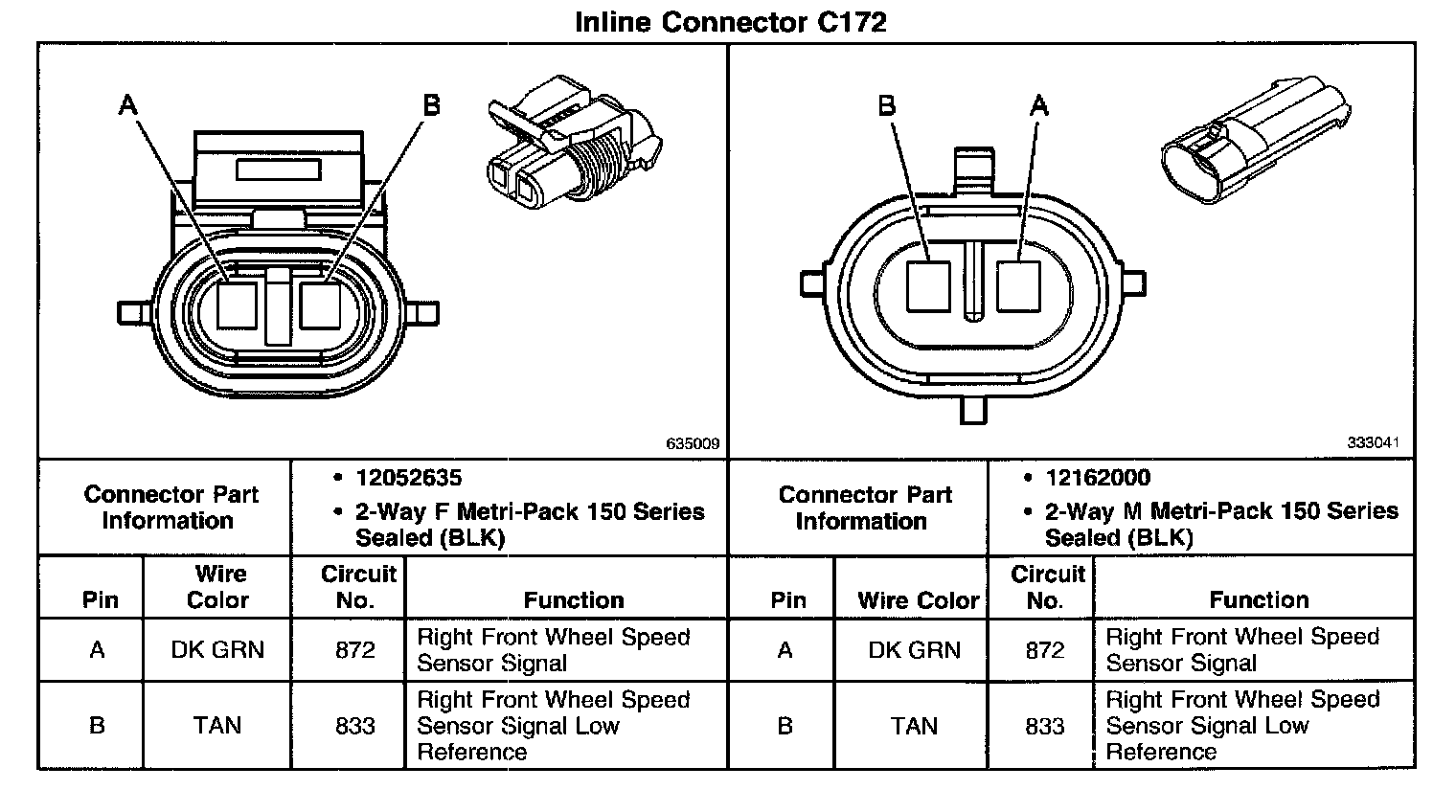

Inline Connector C172:
