C175 (LX5)
C175 (LX5)

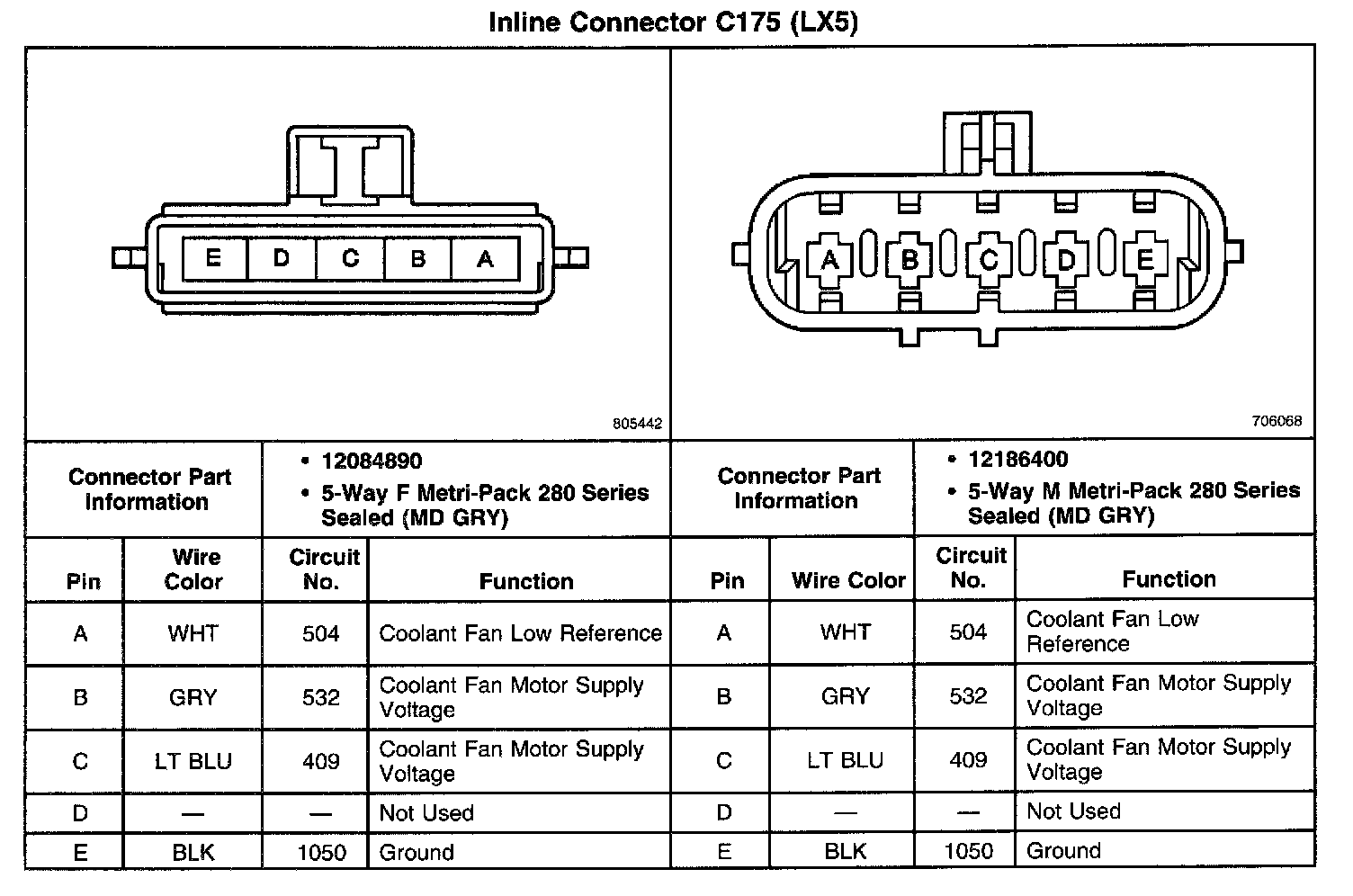

Inline Connector C175 (LX5):
For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application
RPO Codes
