C410
C410

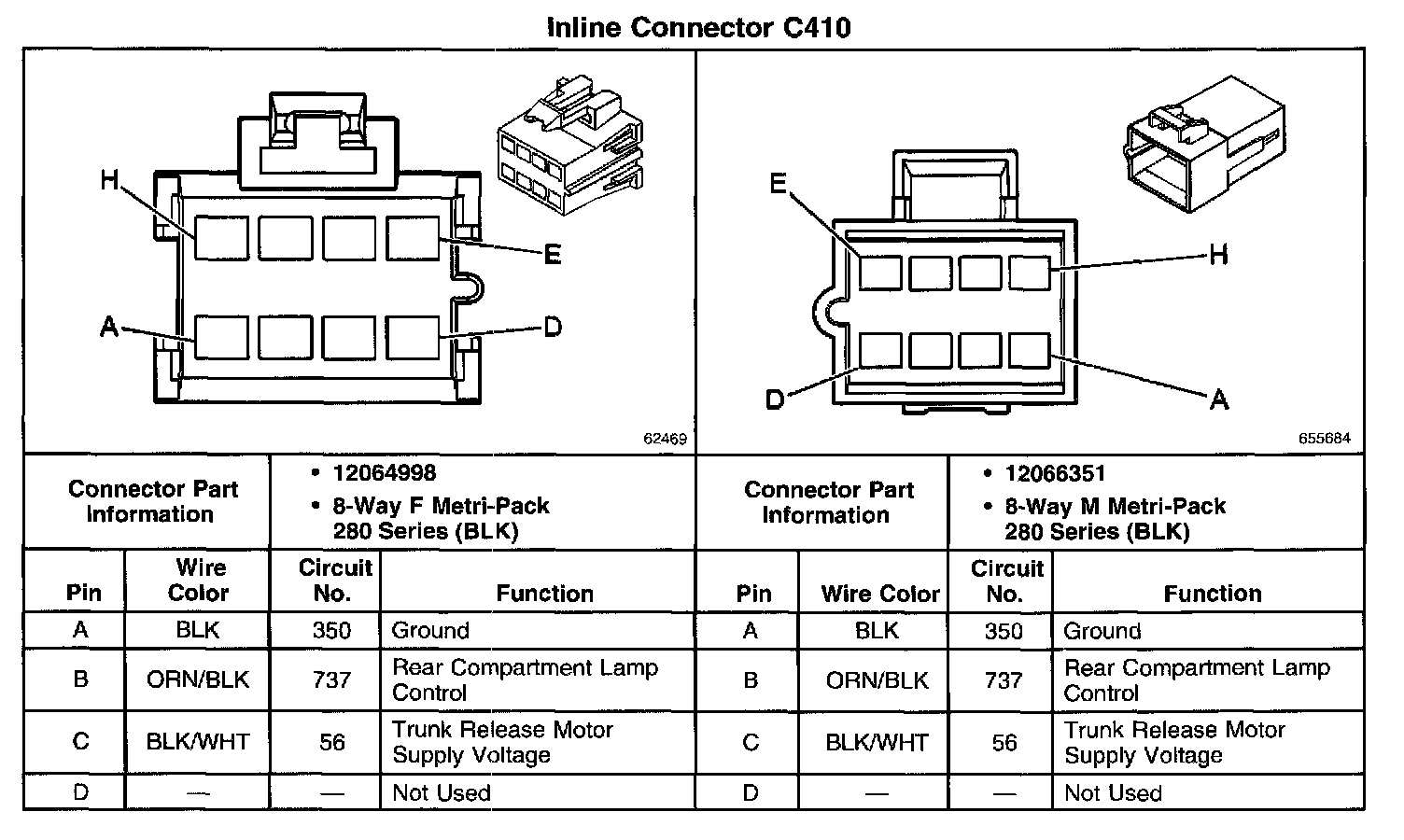

Inline Connector C410 Part 1:

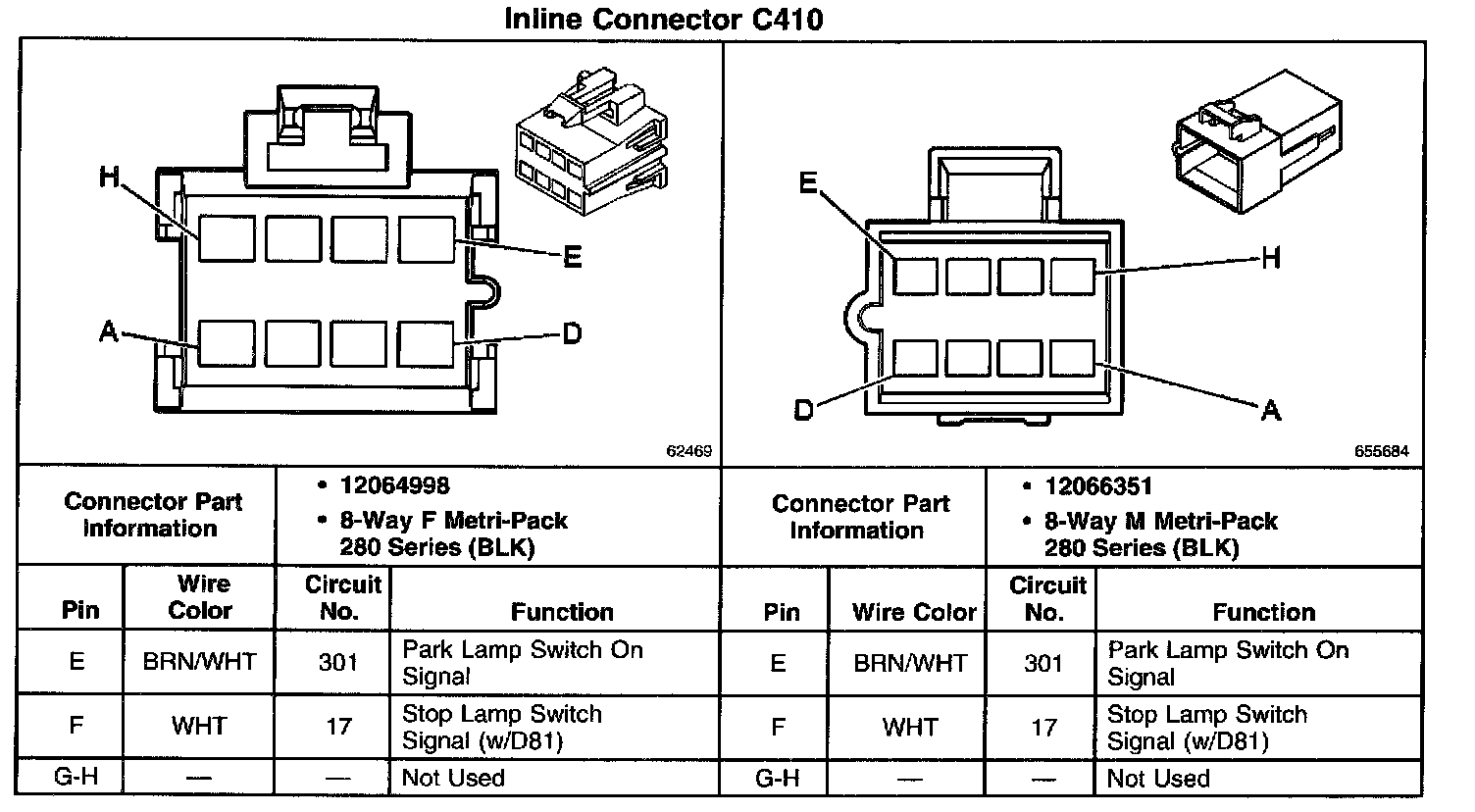

Inline Connector C410 Part 2:
For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application
RPO Codes
