Home >> Oldsmobile >> 2002 >> Intrigue V6-214 3.5L VIN H SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Cellular Phone

Cellular Phone

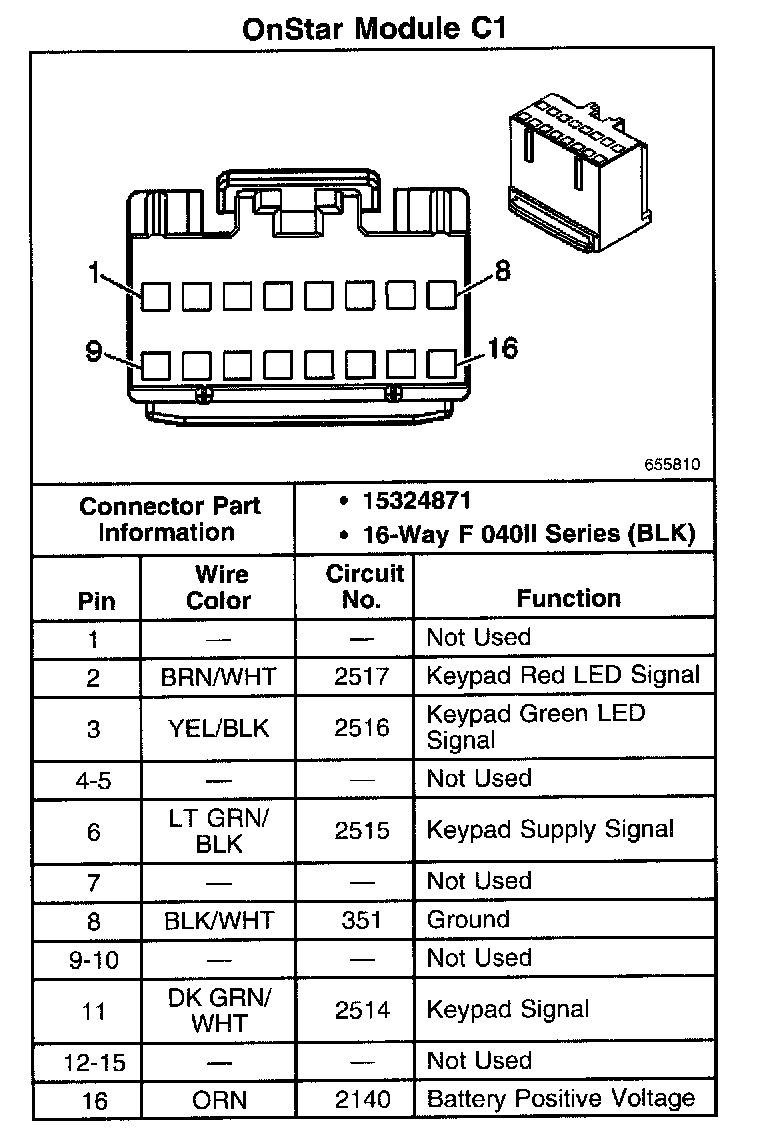

OnStar Module C1:

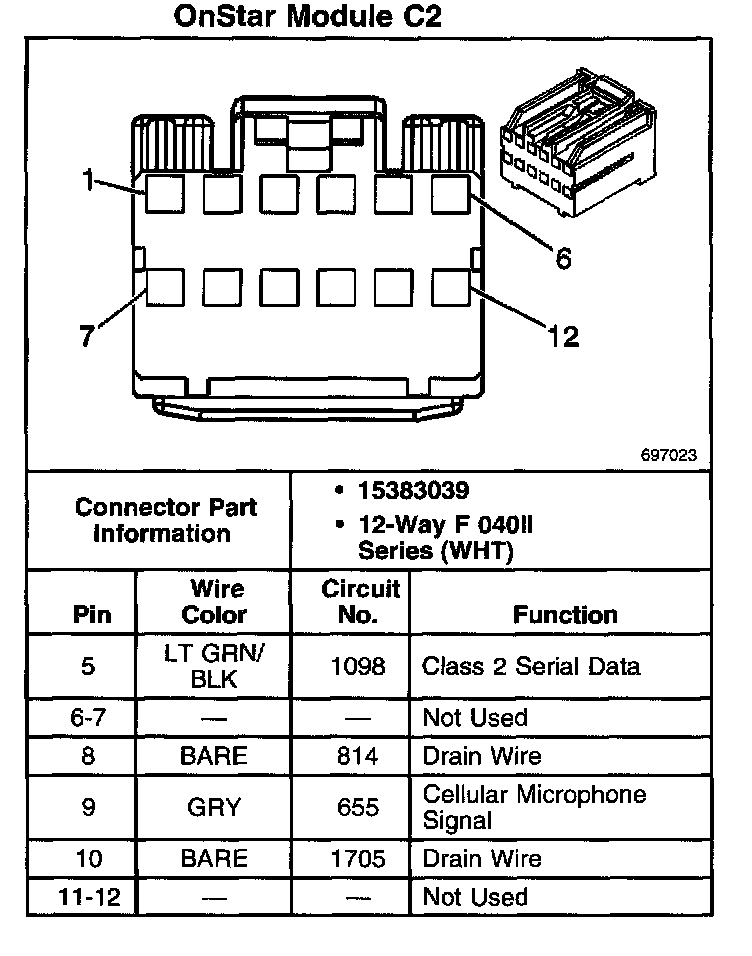

OnStar Module C2 Part 1:



OnStar Module C2 Part 2:
