Home >> Oldsmobile >> 2002 >> Intrigue V6-214 3.5L VIN H SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> HVAC Systems - Automatic

HVAC Systems - Automatic

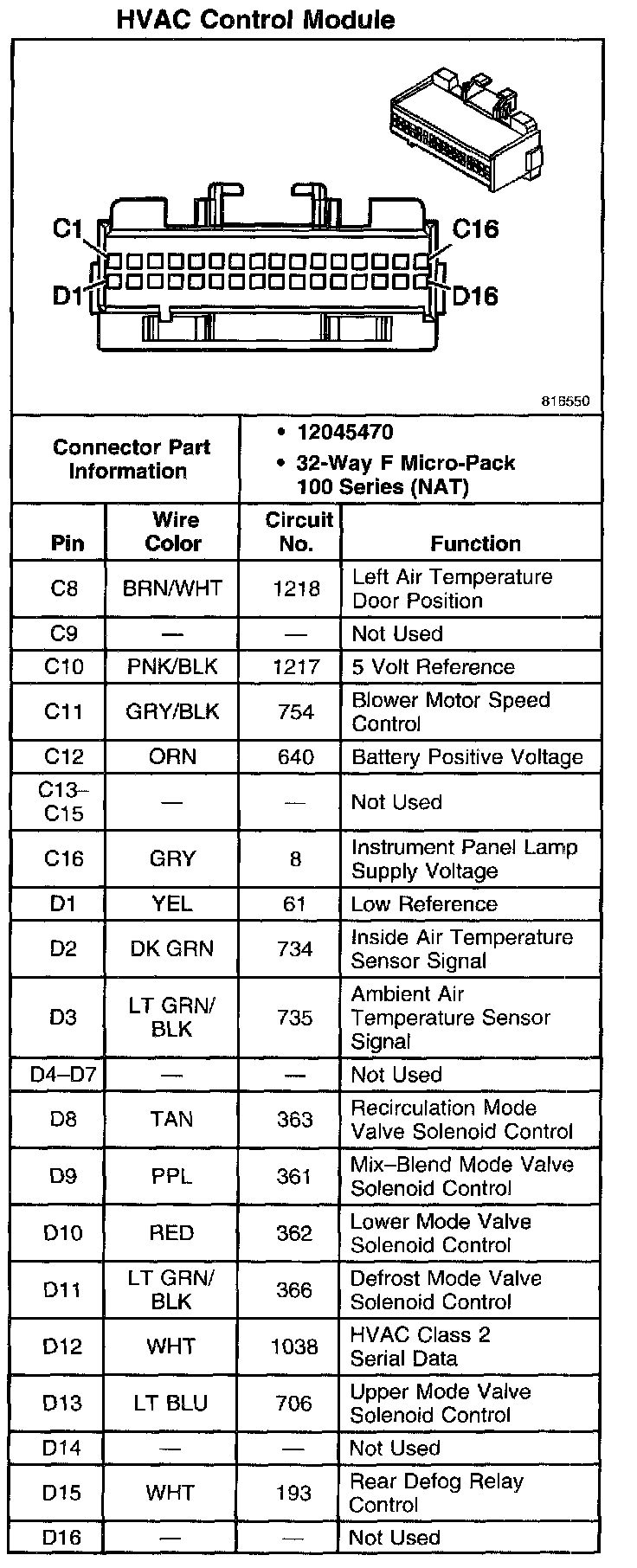

HVAC Control Module - HVAC Systems - Automatic Part 1:



HVAC Control Module - HVAC Systems - Automatic Part 2:
