Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
2002
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Switch
>>
LR C1
LR C1

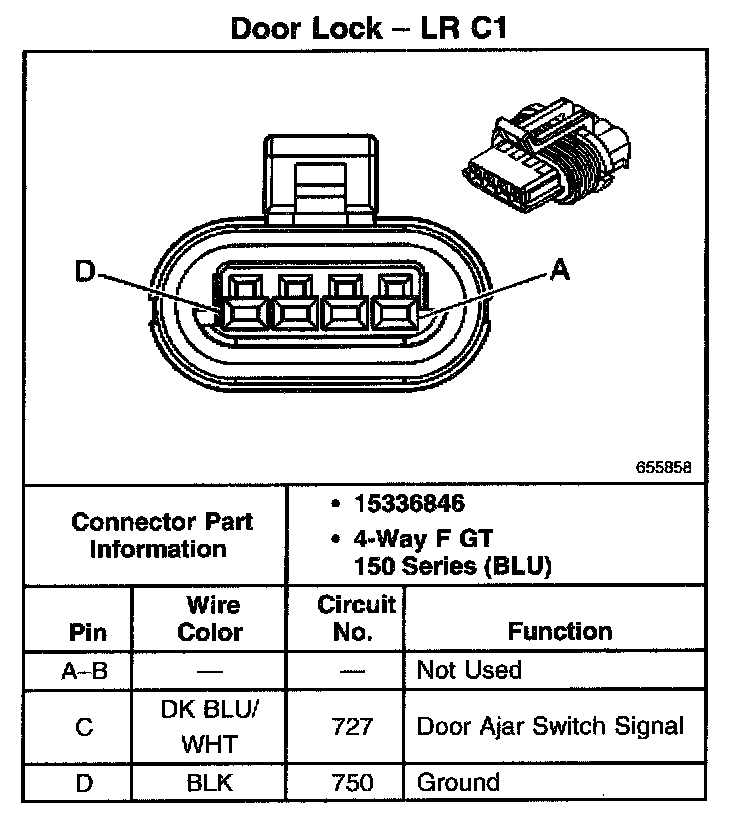

Door Lock - LR C1:
