Power Door Lock Switch
Power Door Lock Switch
Door Lock Switch-Driver:

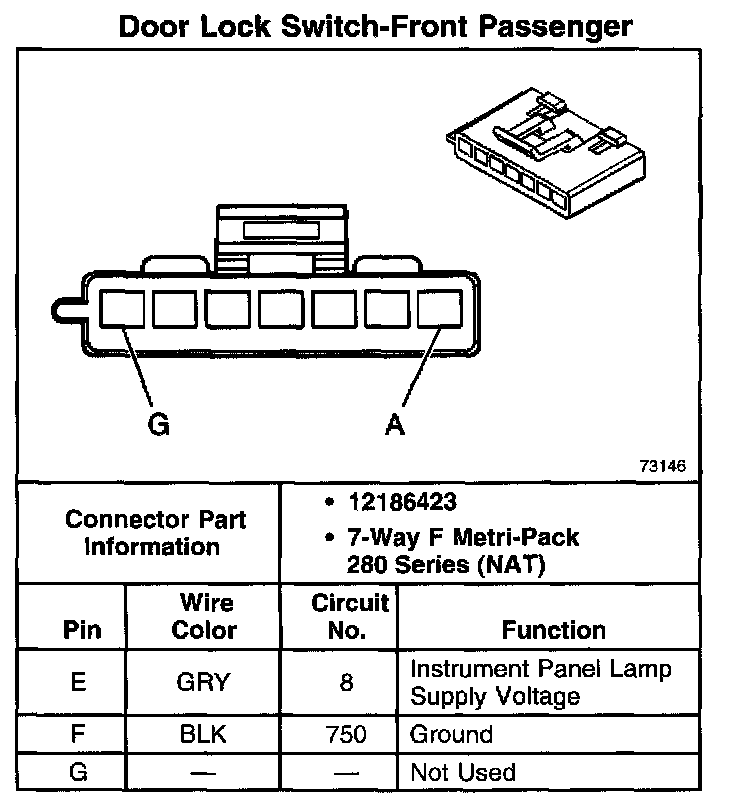

Door Lock Switch-Front Passenger Part 2:
Door Lock Switch-Front Passenger Part 1:
