Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>
Seat Adjuster Switch - Front Passenger (AG2)
Seat Adjuster Switch - Front Passenger (AG2)

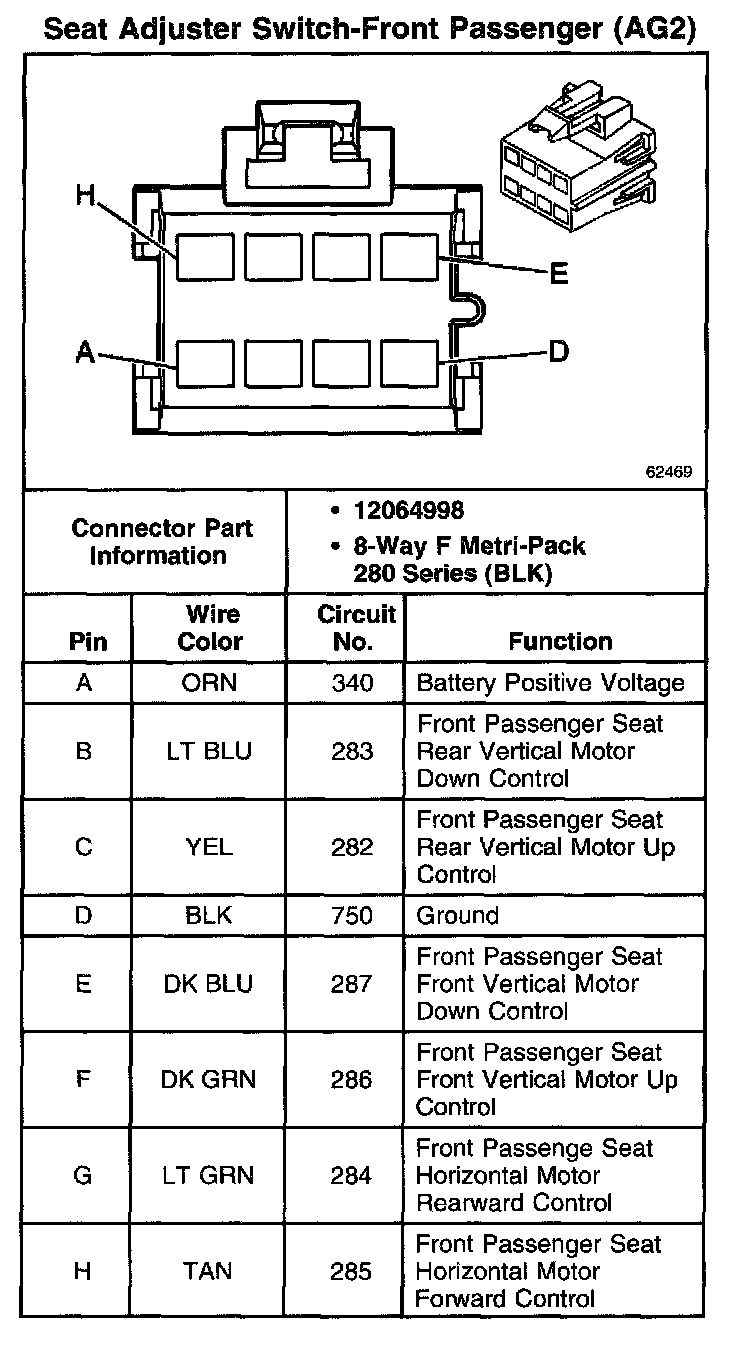

Seat Adjuster Switch-Front Passenger (AG2):
For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application
RPO Codes
