Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Trunk / Liftgate Lock Switch
Power Trunk / Liftgate Lock Switch

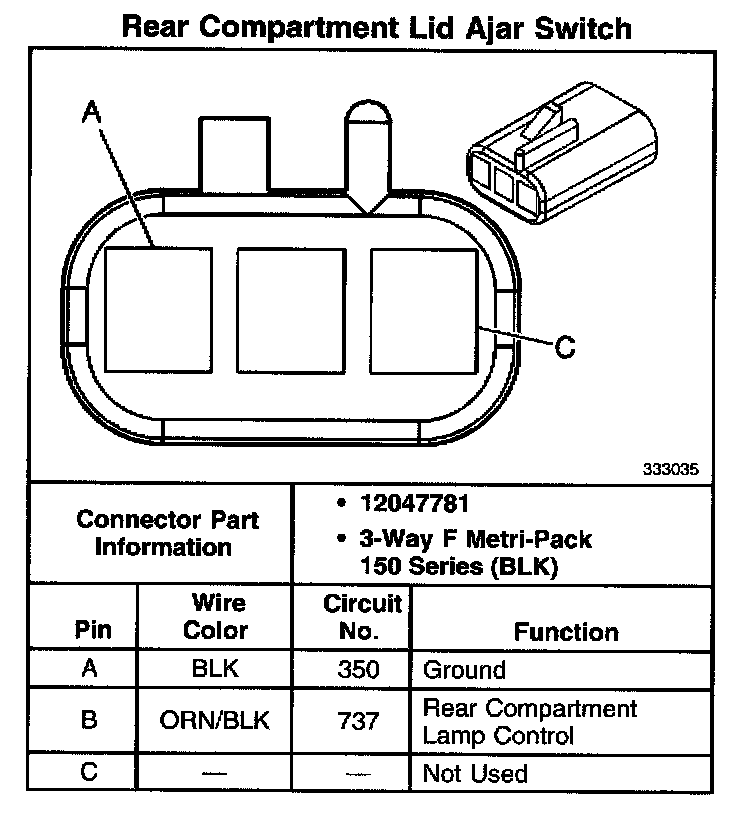

Rear Compartment Lid Ajar Switch:
