Passenger C1

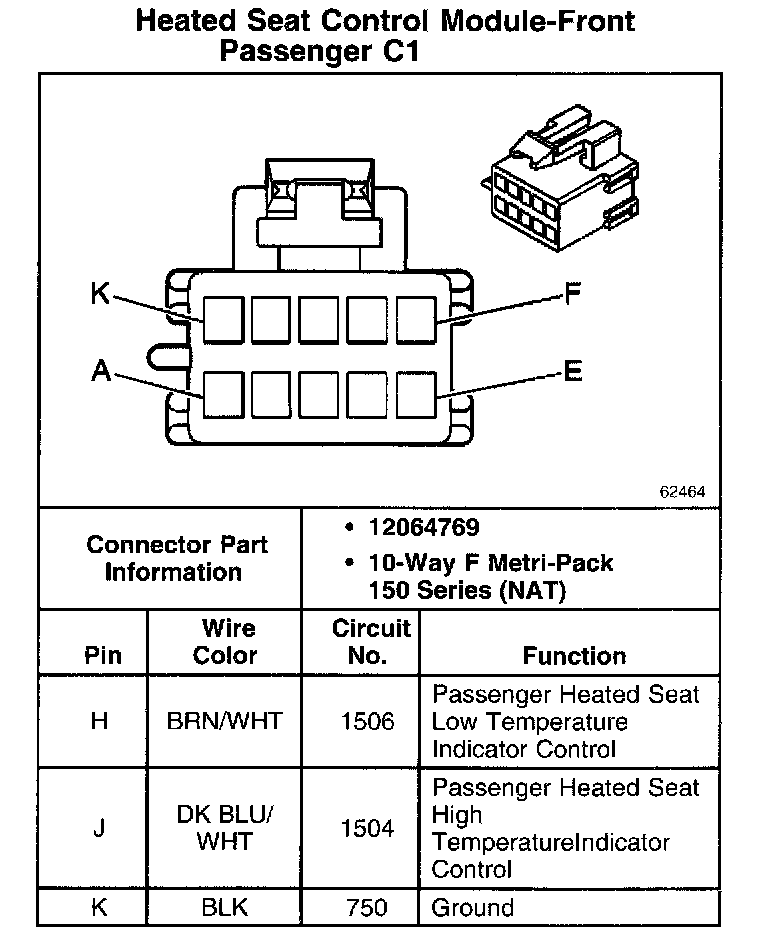

Heated Seat Control Module - Front Passenger C1 Part 1:

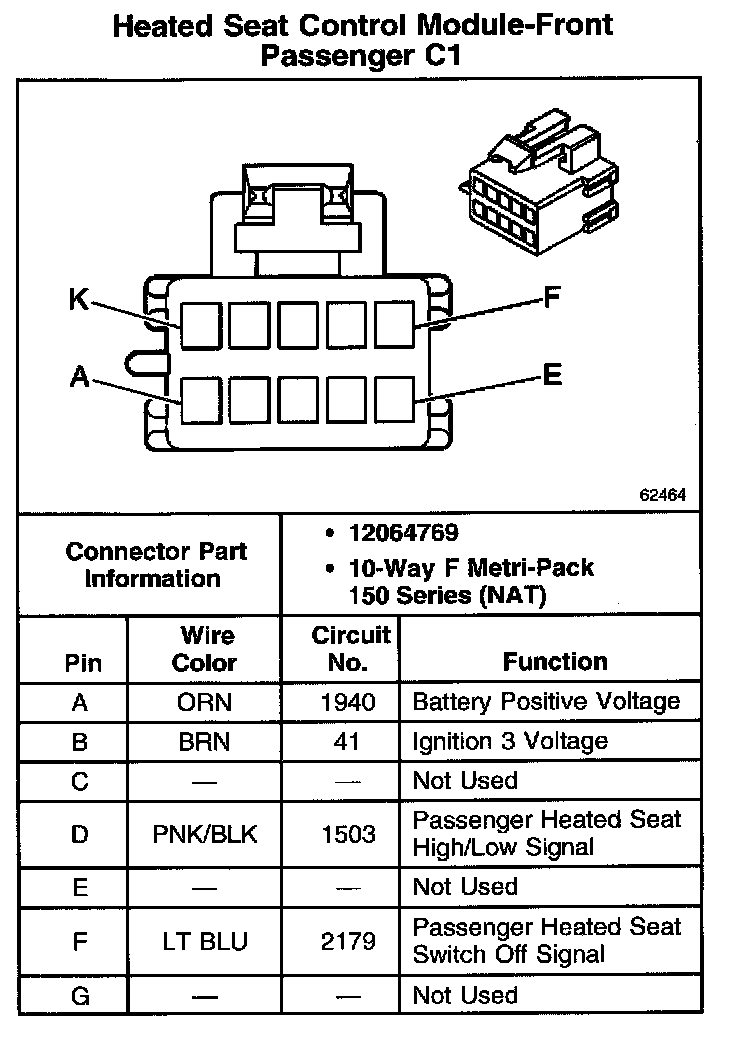

Heated Seat Control Module - Front Passenger C1 Part 2:
