Home >> Oldsmobile >> 2002 >> Intrigue V6-214 3.5L VIN H SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> Passenger C2

Passenger C2

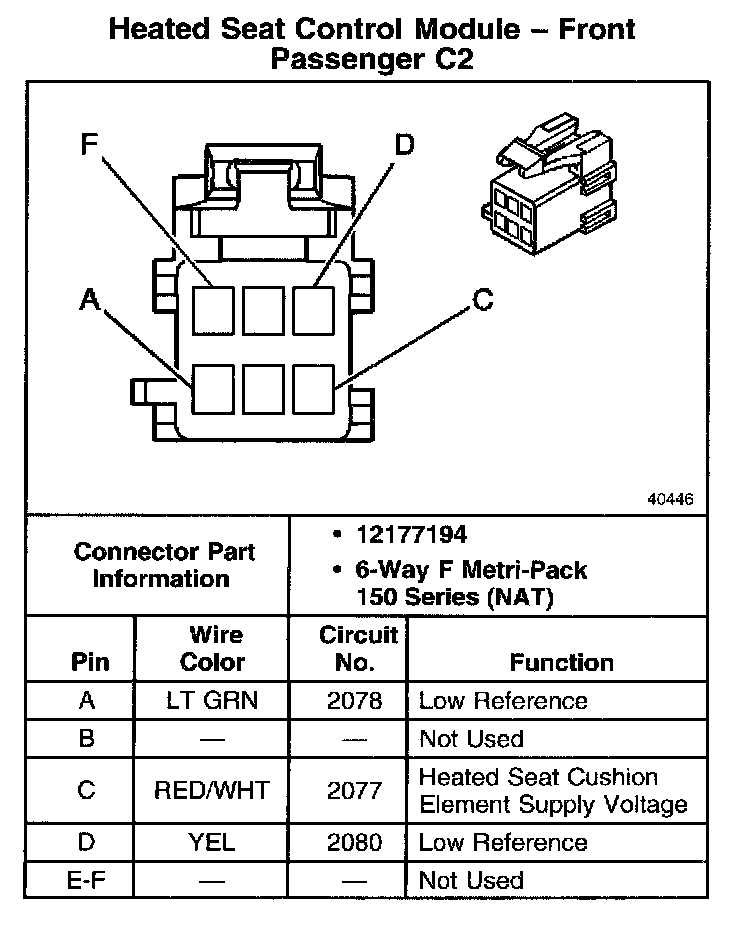

Heated Seat Control Module - Front Passenger C2:
