Oldsmobile
>>
2002
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Vacuum Controller, HVAC
>>
HVAC Systems - Automatic
HVAC Systems - Automatic

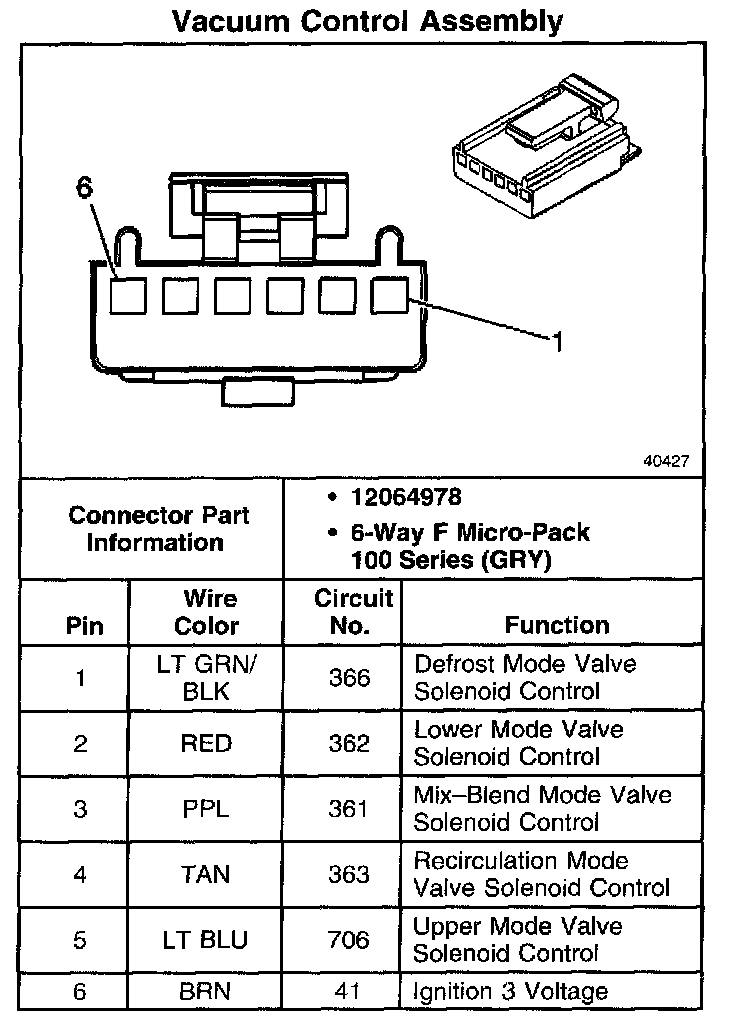

Vacuum Control Assembly:
