ABS Indicator, Torque Signals, and Traction Control Switch
ABS Indicator, Torque Signals, and Traction Control Switch

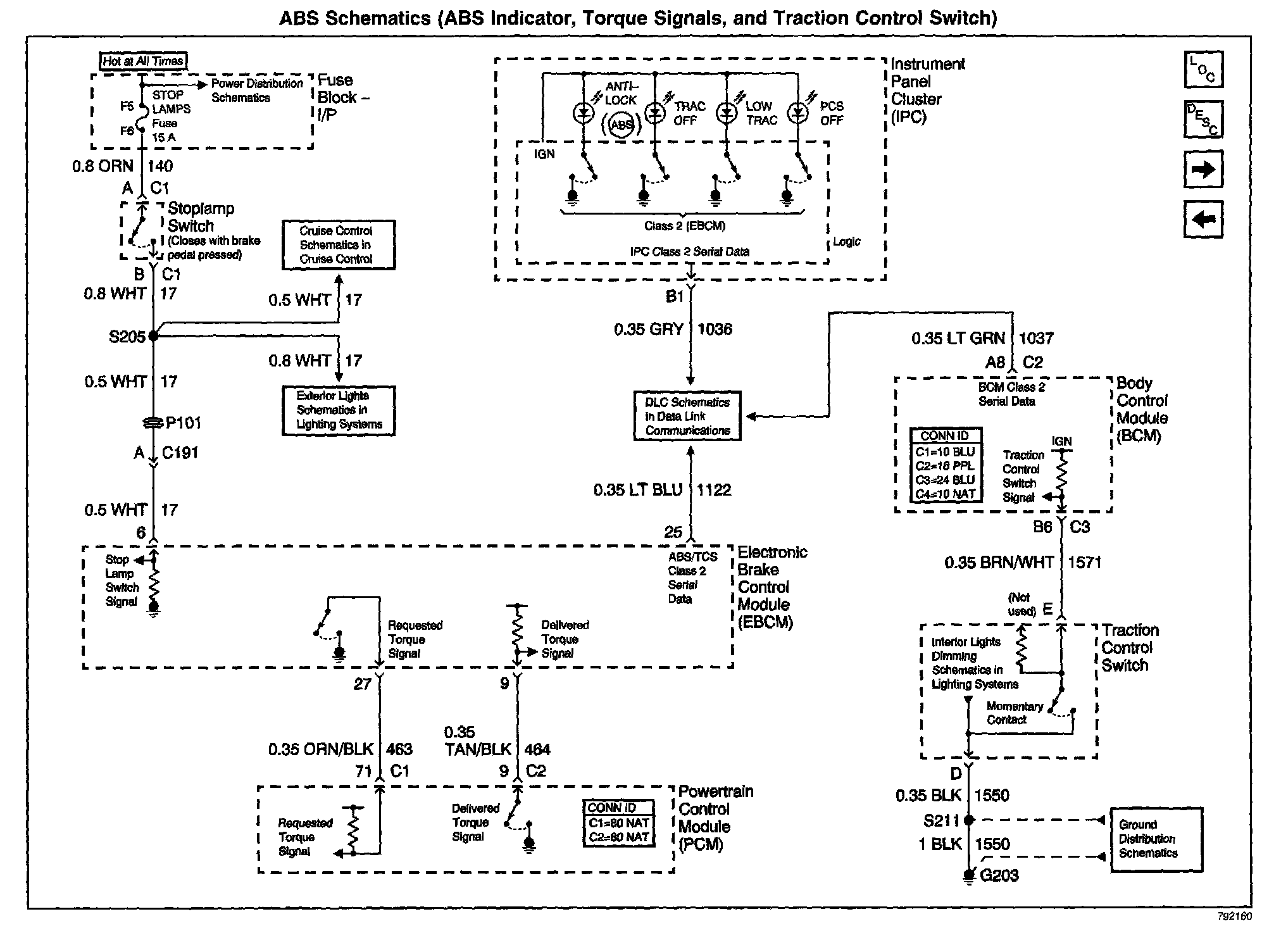

ABS Schematics: ABS Indicator, Torque Signals, And Traction Control Switch:
