Power, Grounds, and BPMV

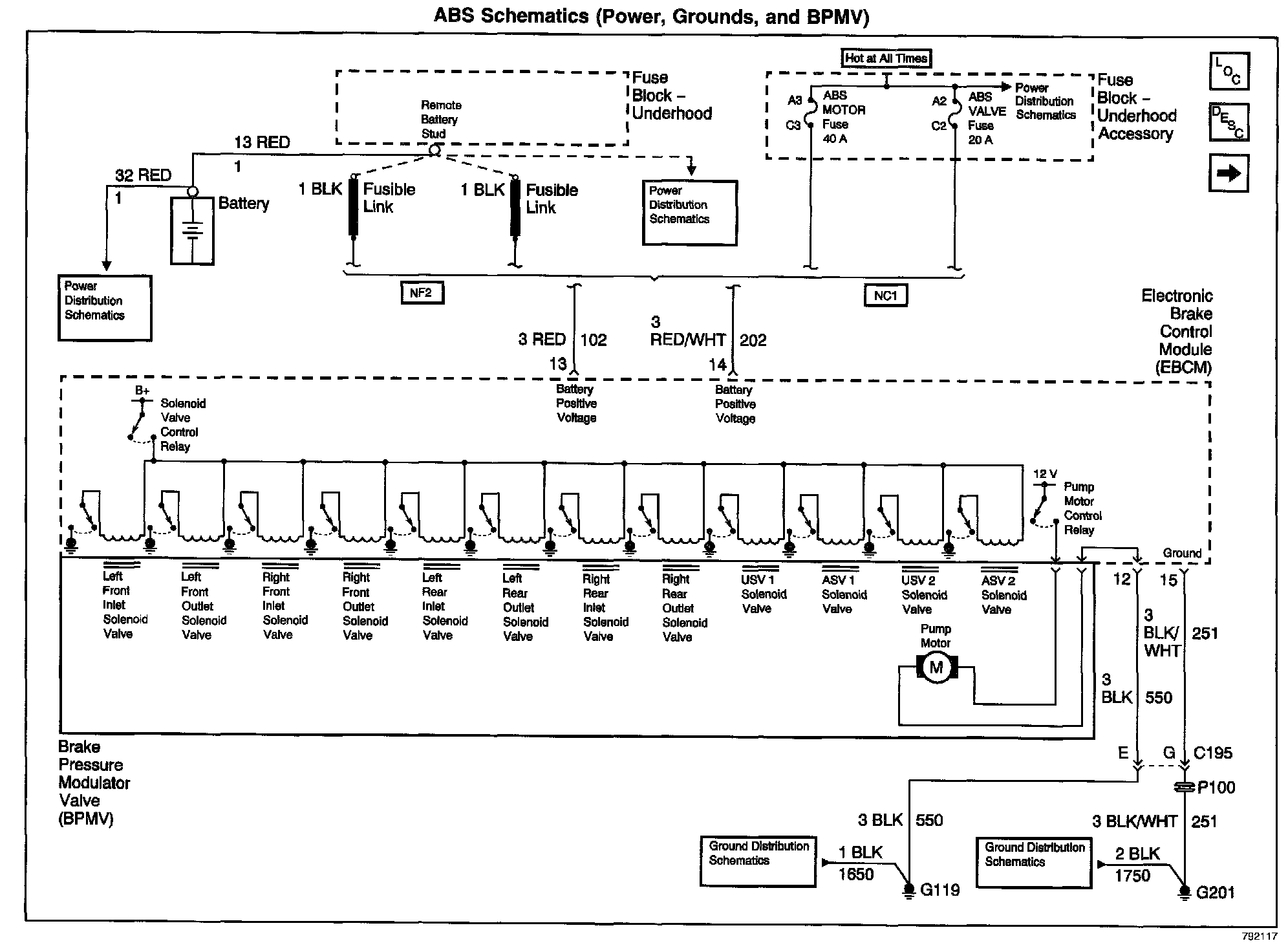

ABS Schematics: Power, Grounds, And BPMV:

For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application RPO Codes
