Cellular Phone

Onstar Schematics: Power, Grounds, And DLC:

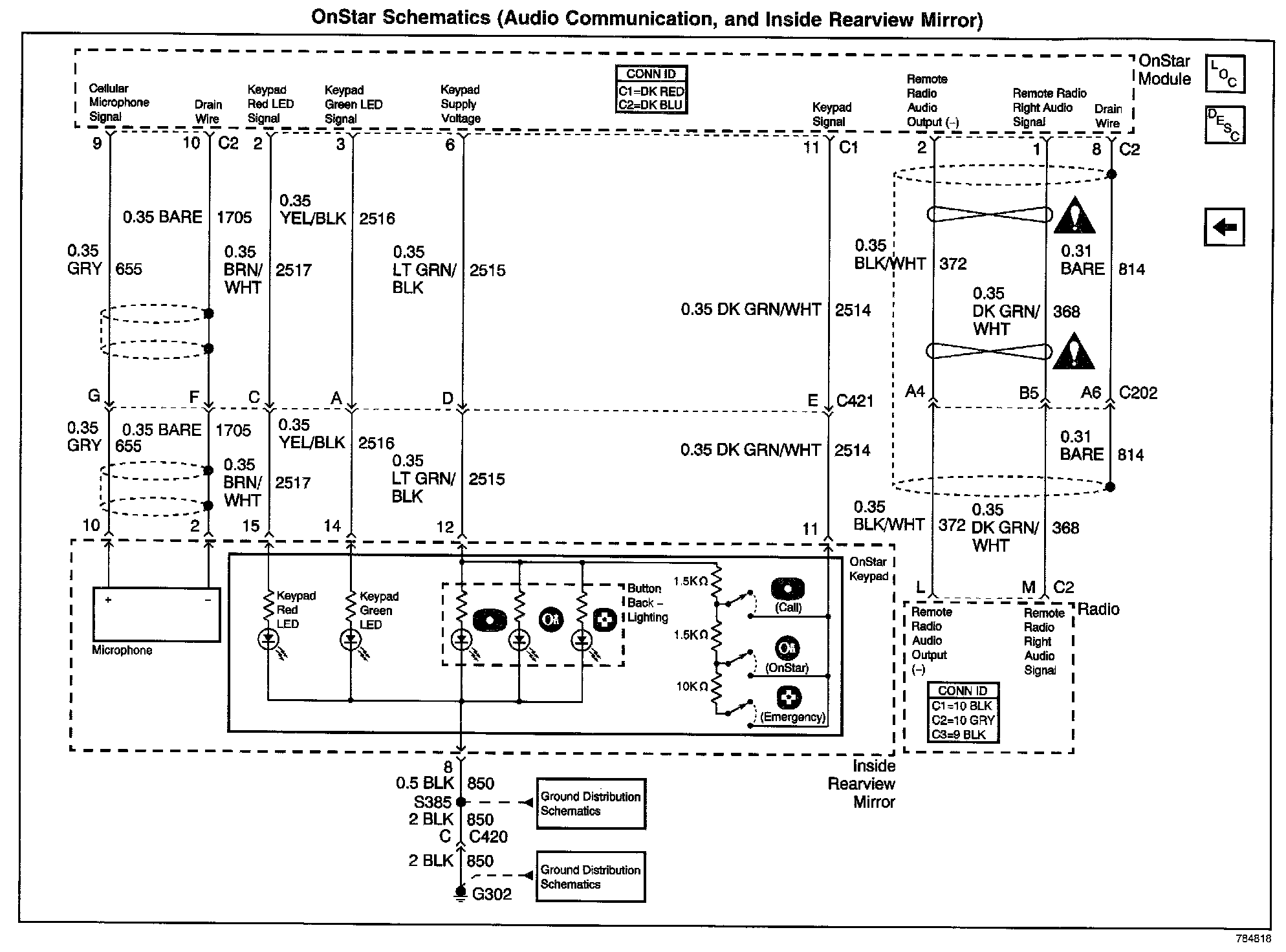

OnStar Schematics: Audio Communication, And Inside Rearview Mirror:

For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application RPO Codes
