POWER DROP, And WIPER Fuses, PWR WINDOWS/PWR SUNROOF Circuit Breakers
POWER DROP, And WIPER Fuses, PWR WINDOWS/PWR SUNROOF Circuit Breakers

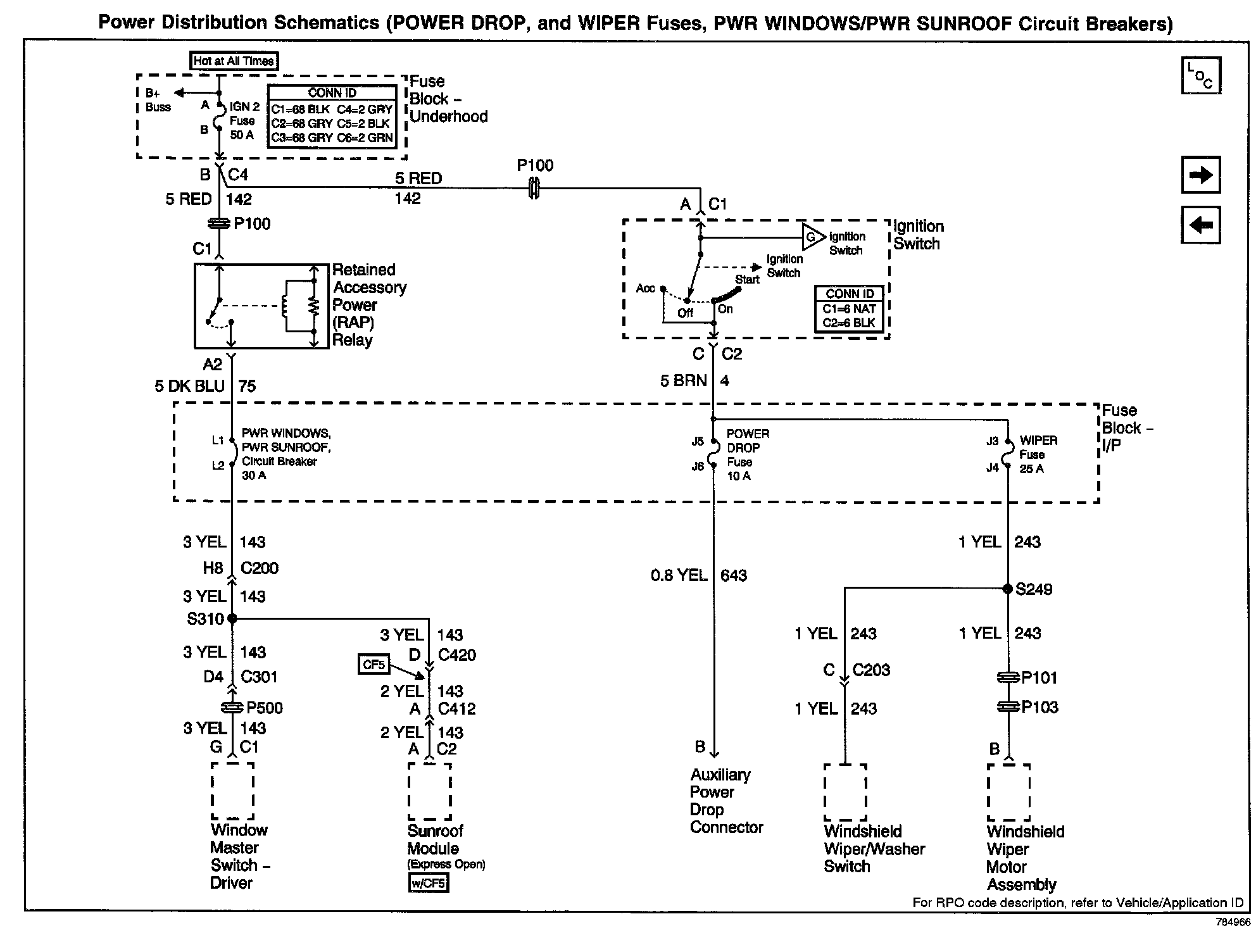

Power Distribution Schematics: POWER DROP, And WIPER Fuses, PWR WINDOWS/PWR SUNROOF Circuit Breakers:
