Home >> Oldsmobile >> 2002 >> Intrigue V6-214 3.5L VIN H SFI >> Repair and Diagnosis >> Diagrams >> Harness >> Front Right of Passenger Compartment

Front Right of Passenger Compartment

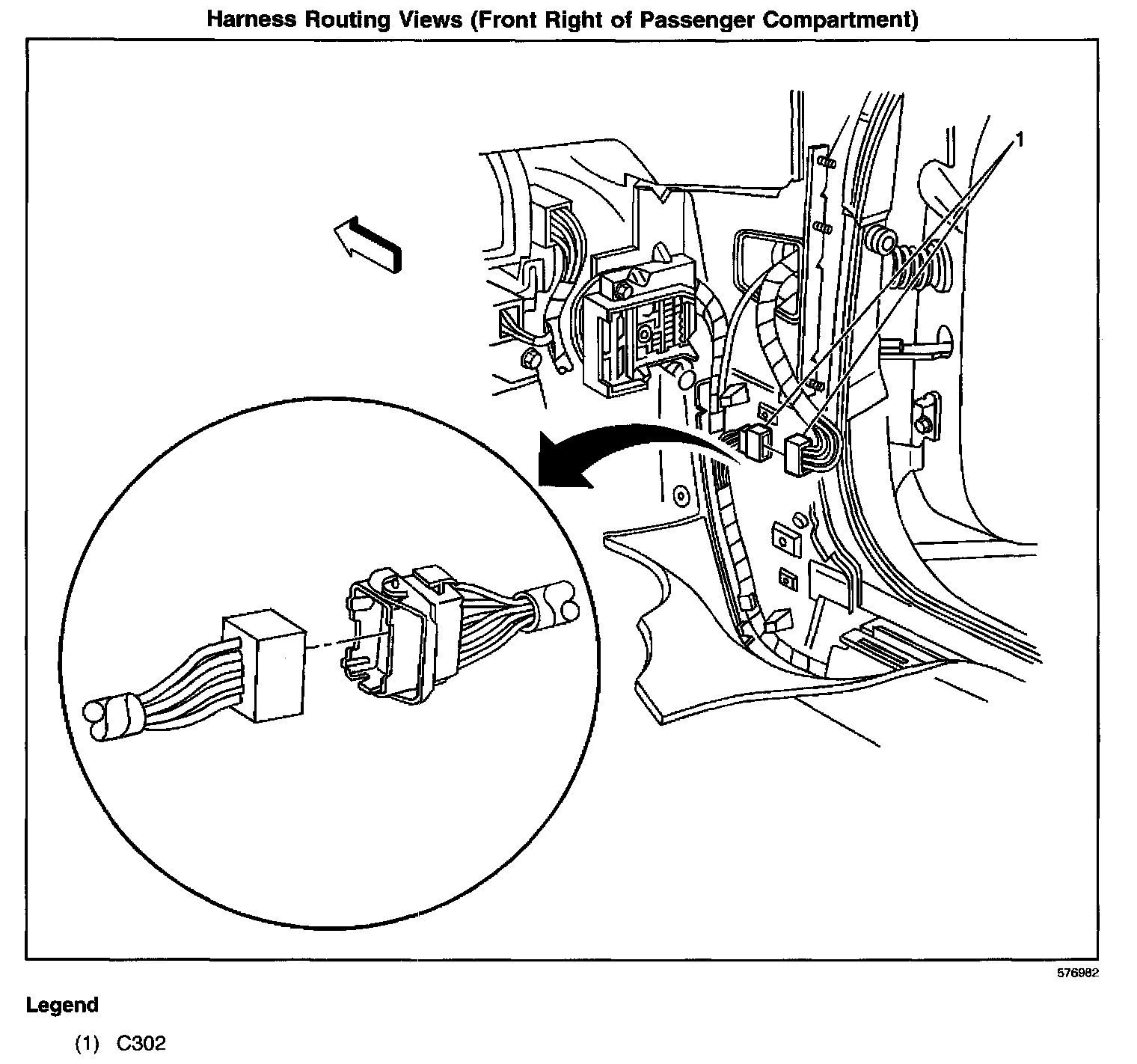

Harness Routing Views (Front Right Of Passenger Compartment):
