Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
2002
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Front of Engine Compartment
Front of Engine Compartment

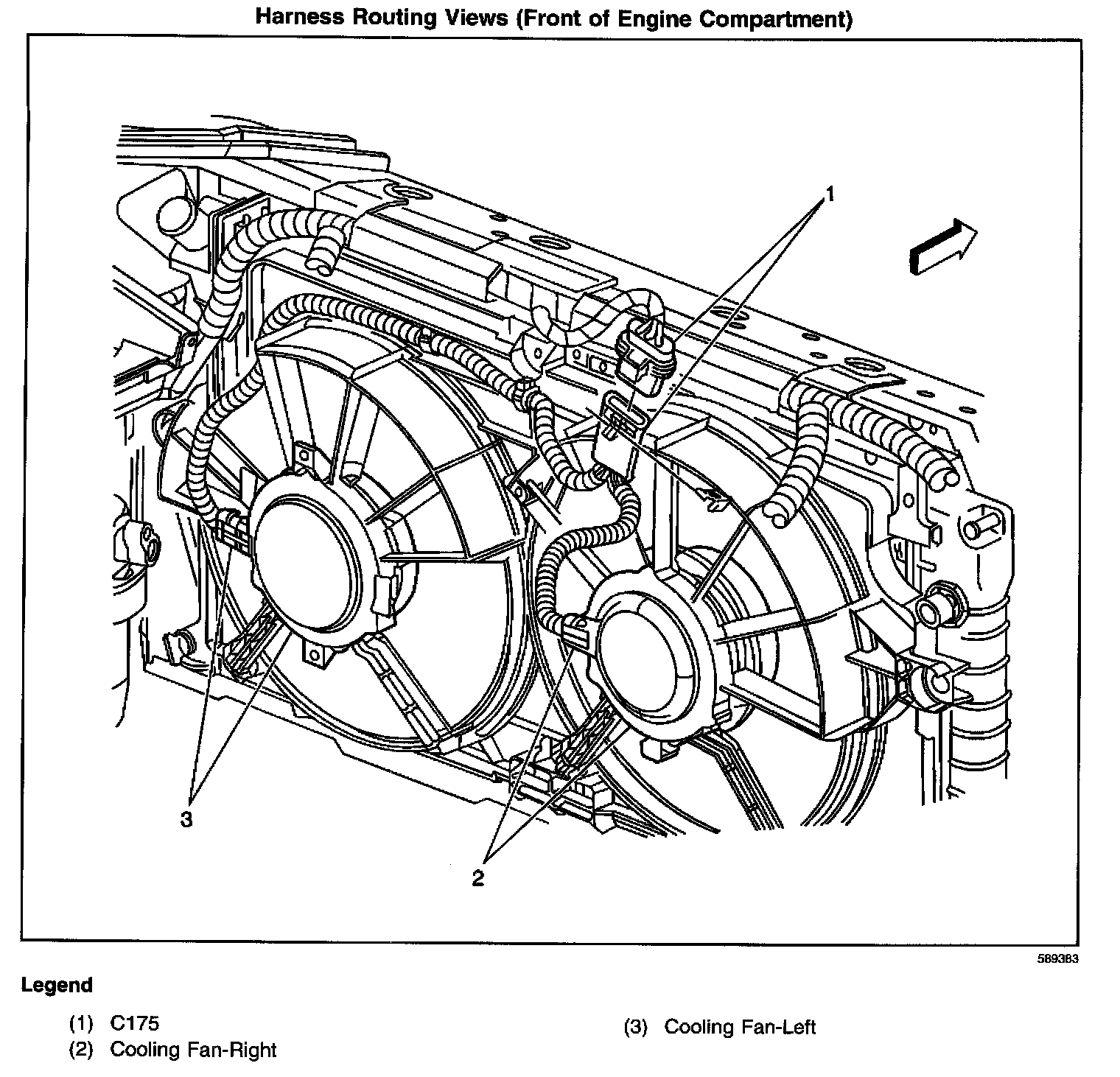

Harness Routing Views (Front Of Engine Compartment):
