Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Inside Rear Compartment
Inside Rear Compartment

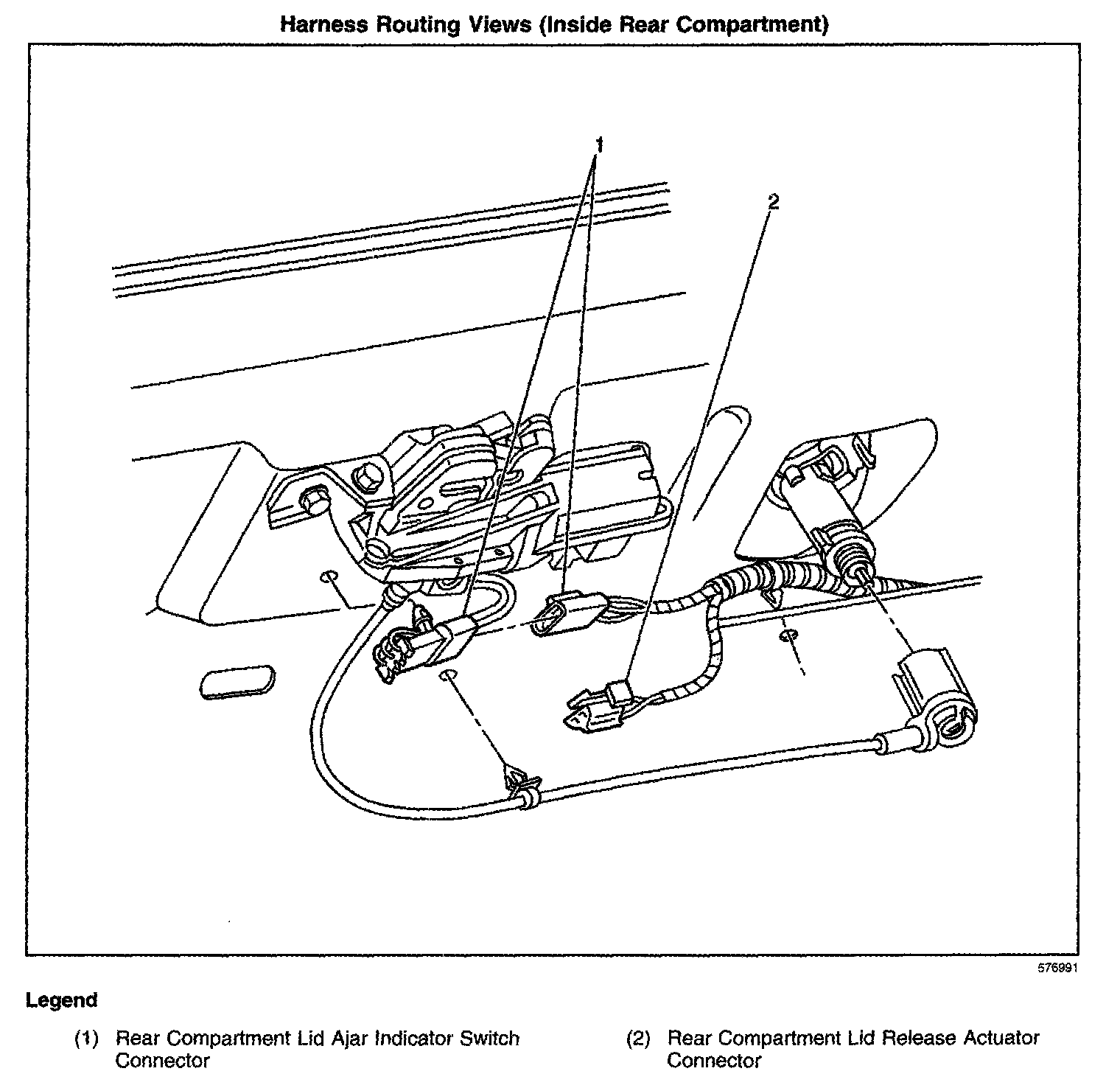

Harness Routing Views (Inside Rear Compartment):
