Home
>>
Oldsmobile
>>
2002
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Upper Left Rear of Engine Compartment
Upper Left Rear of Engine Compartment

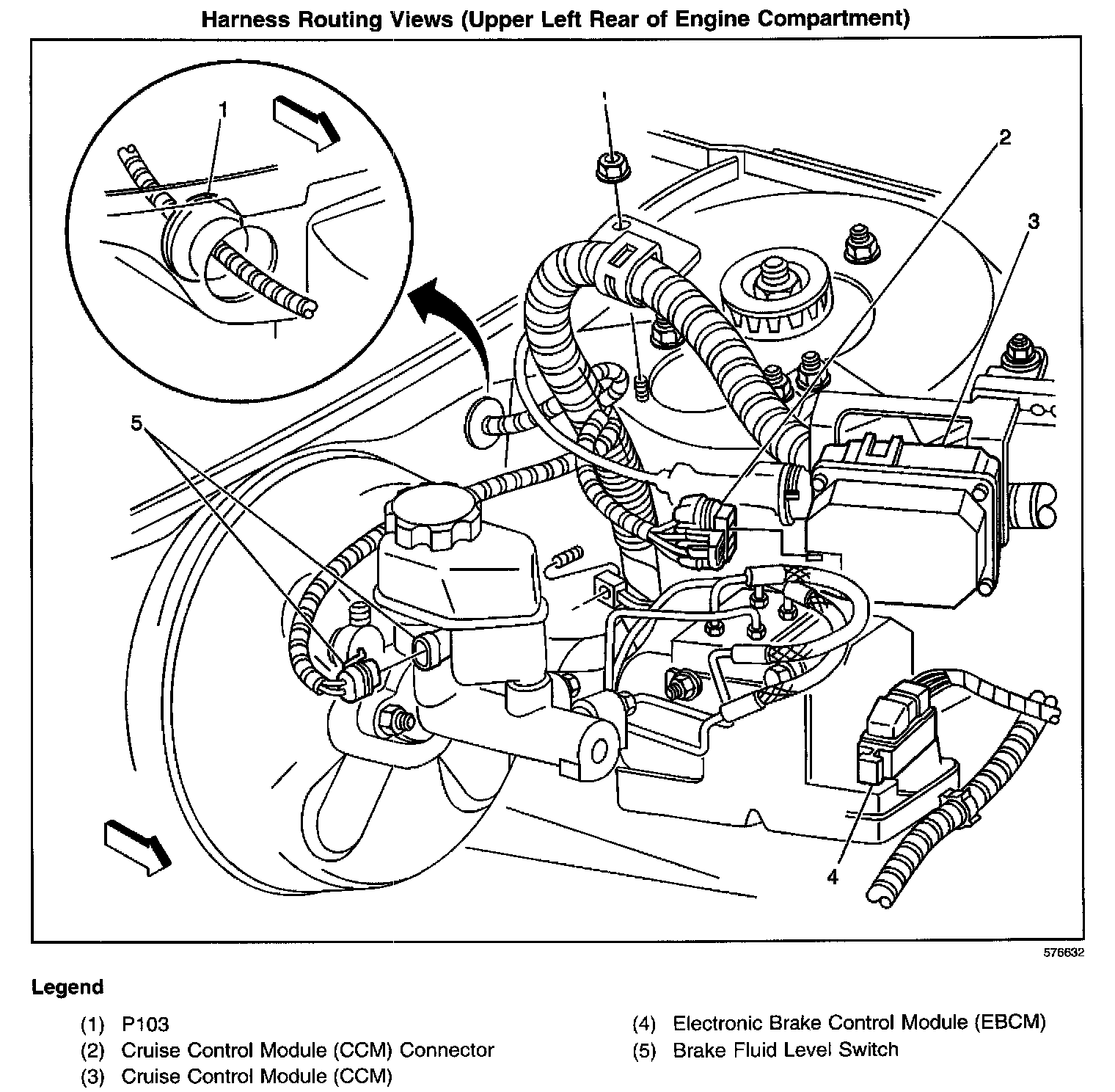

Harness Routing Views (Upper Left Rear Of Engine Compartment):
