Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
2002
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
Splices

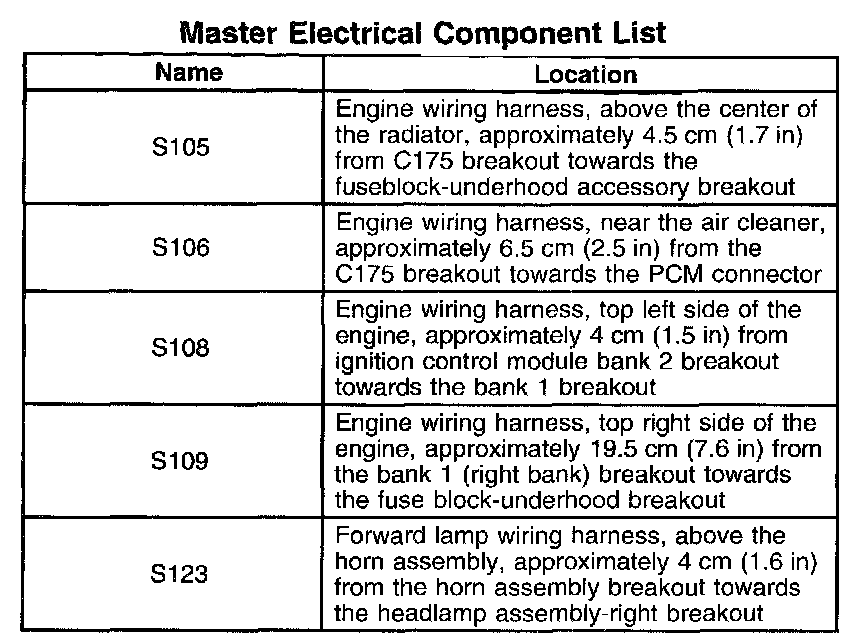

S105 - S123:

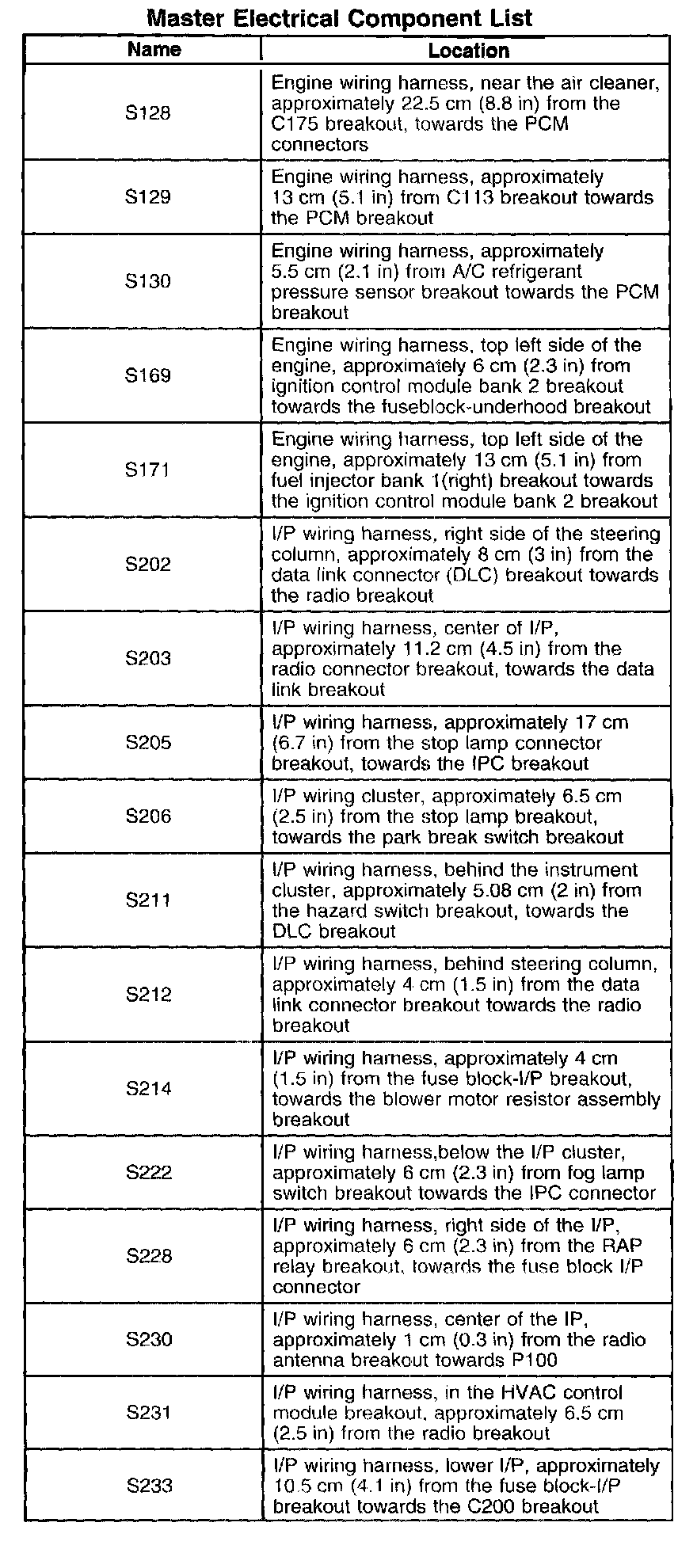

S128 - S233:
S234 - S303:

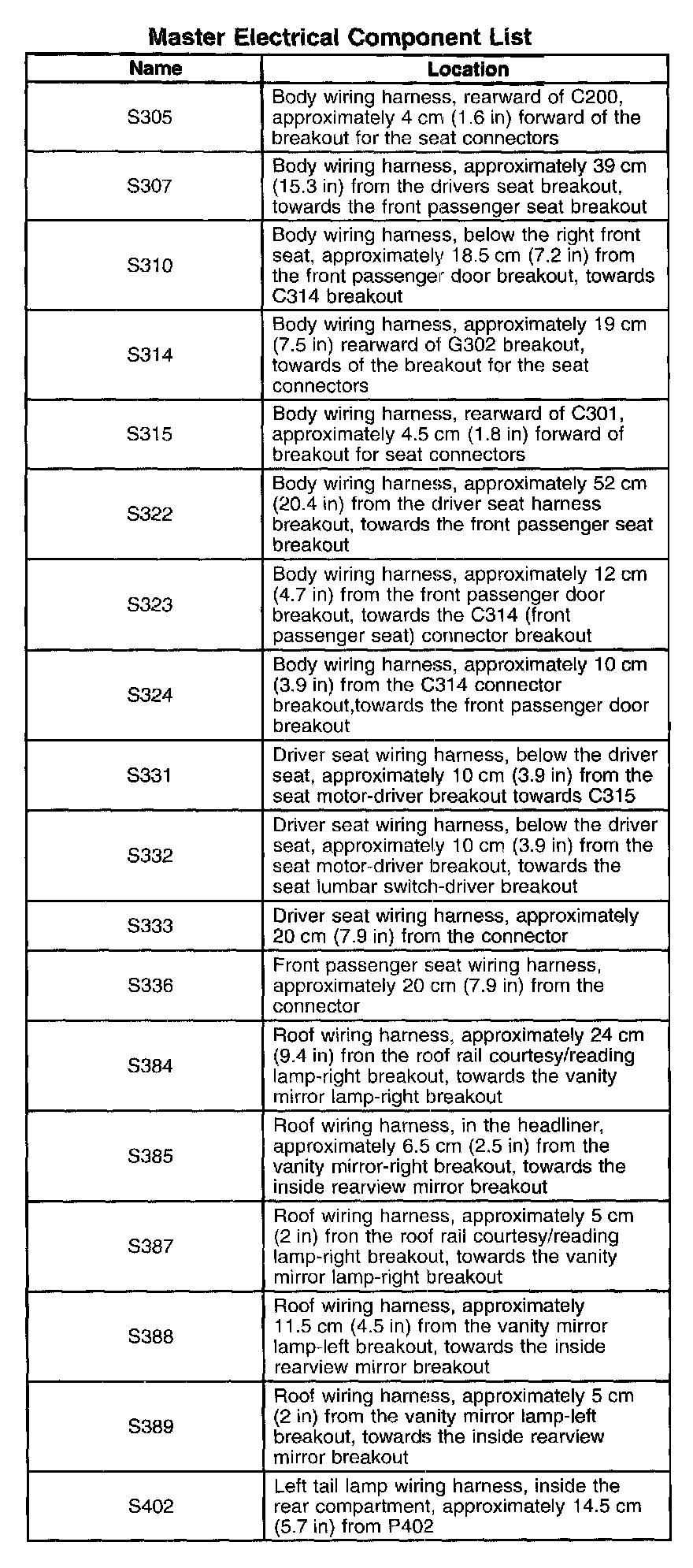

S305 - S402:

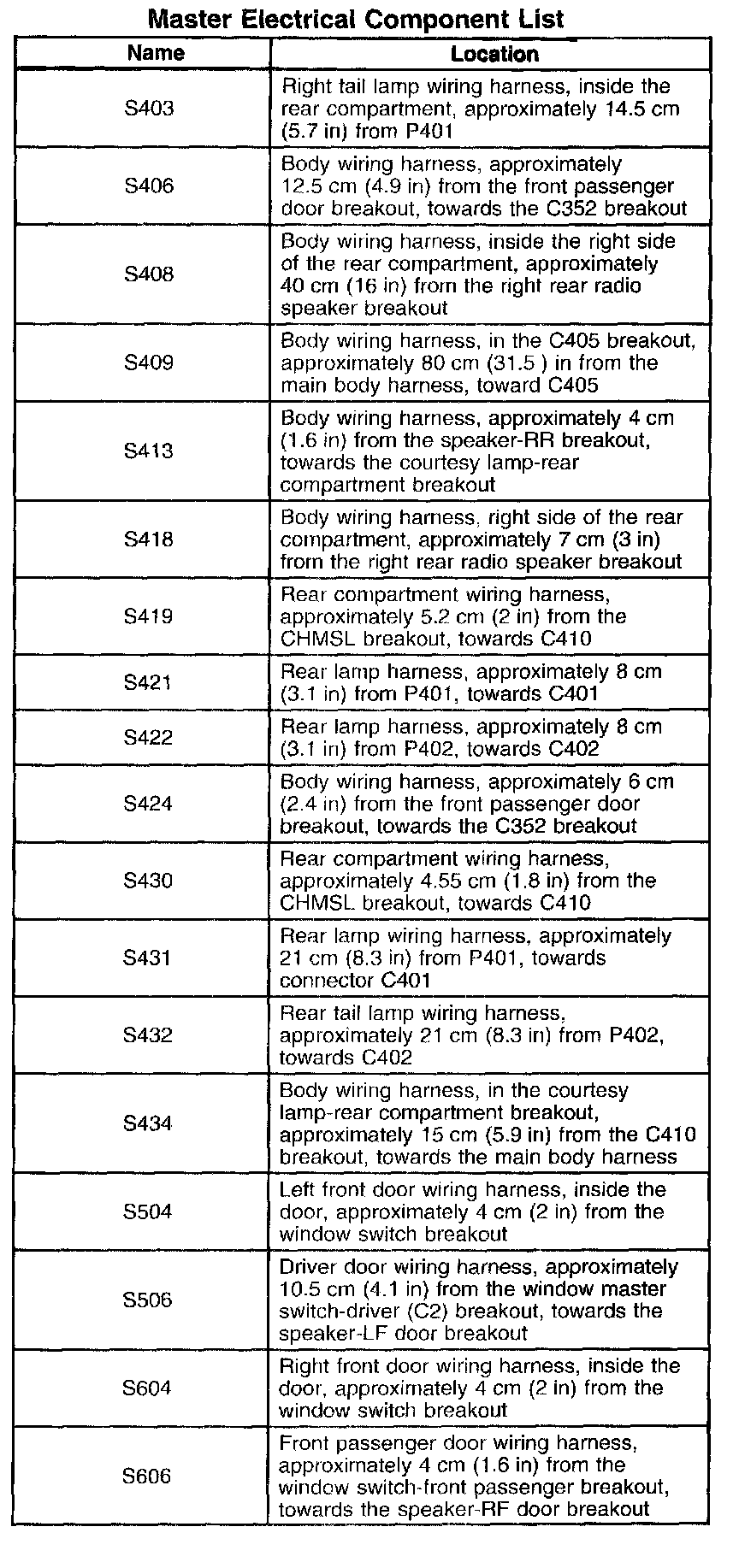

S403 - S606:
