Thread Repair Specifications

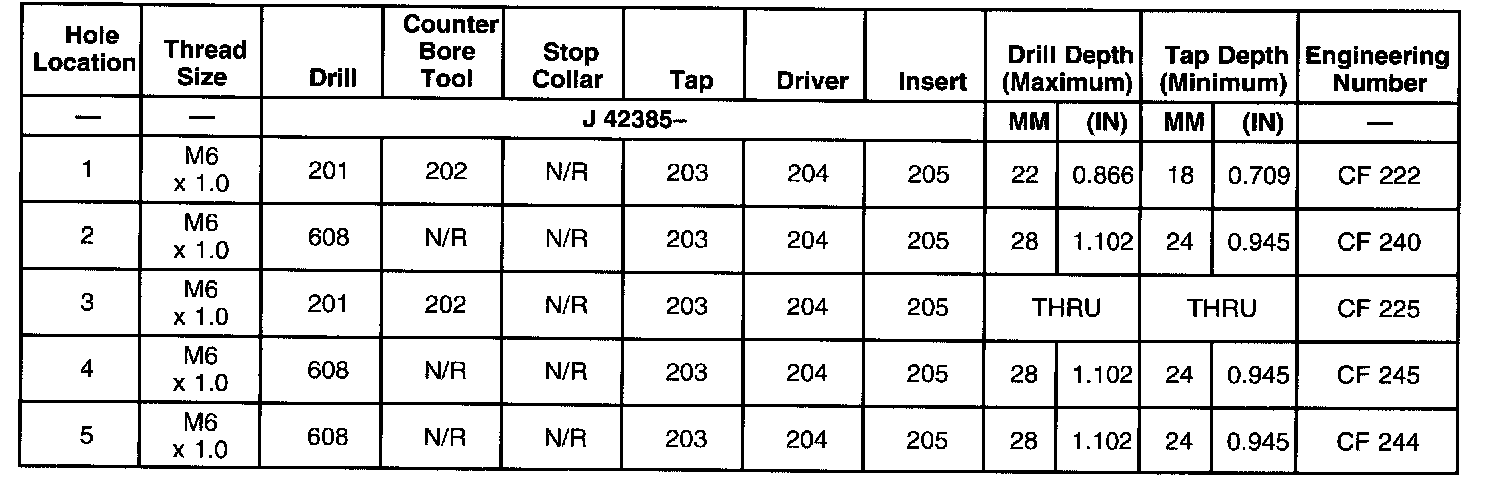

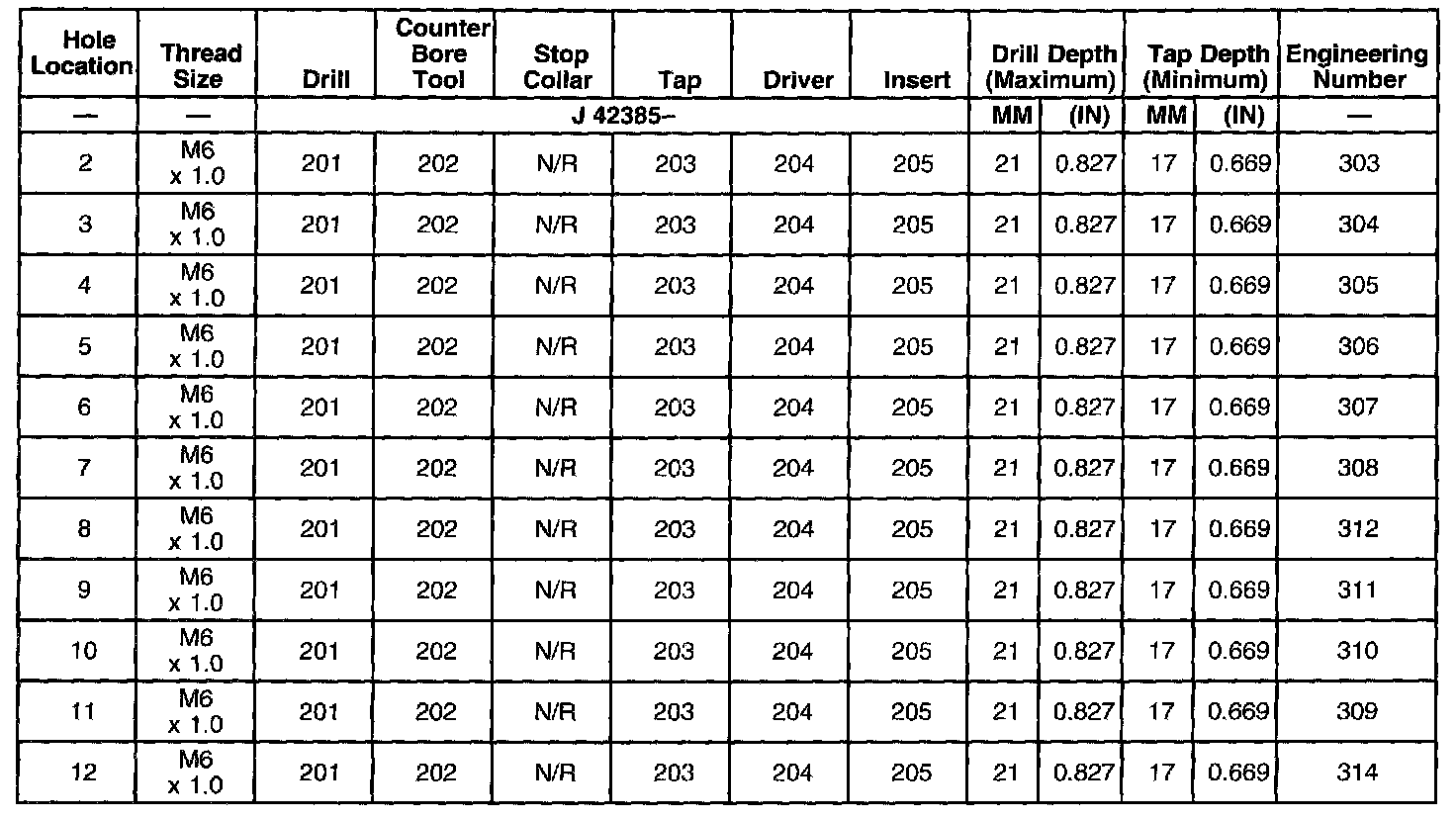

Thread Repair Specifications





Part 1 of 3





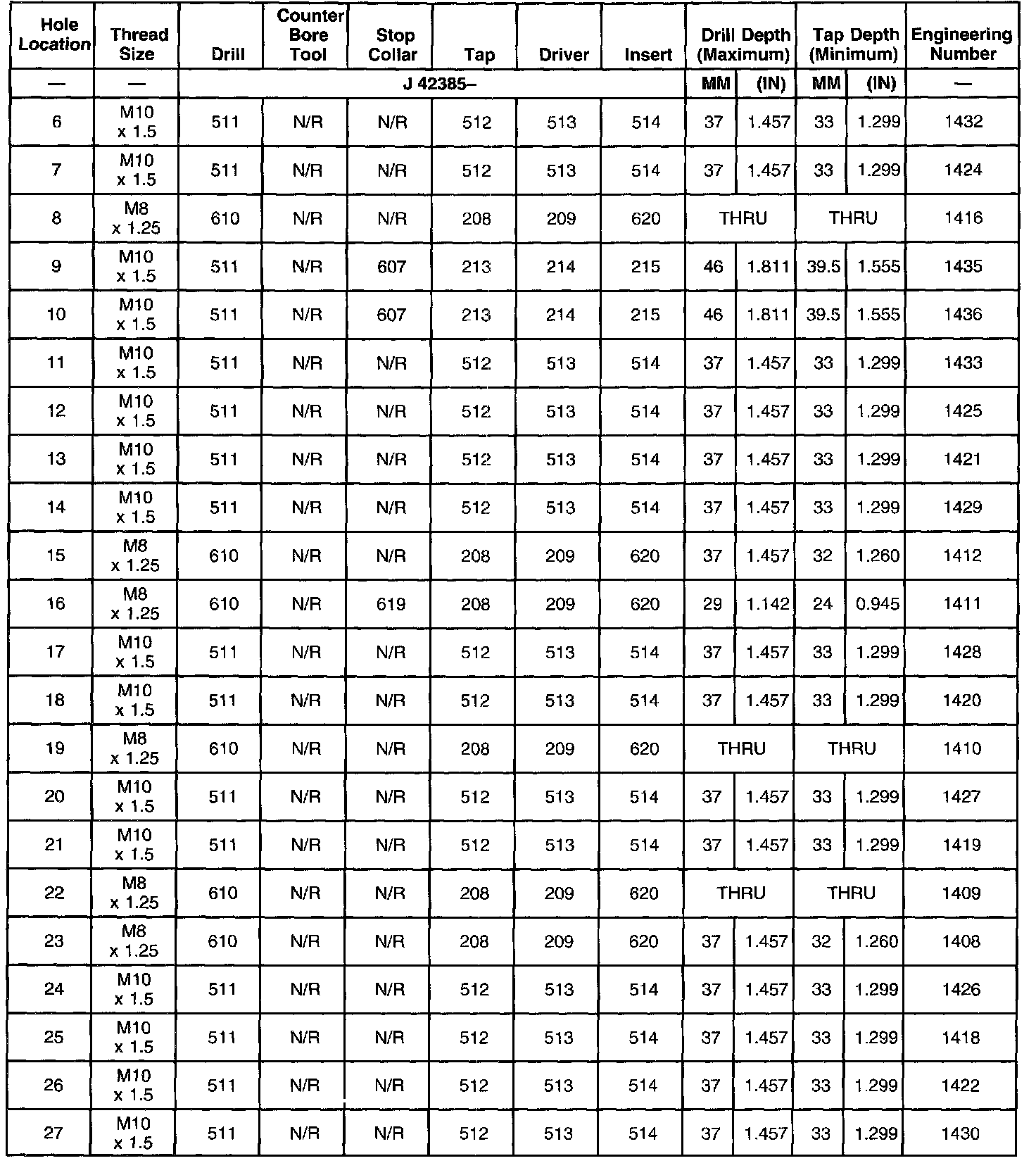

Part 2 of 3





Part 3 of 3

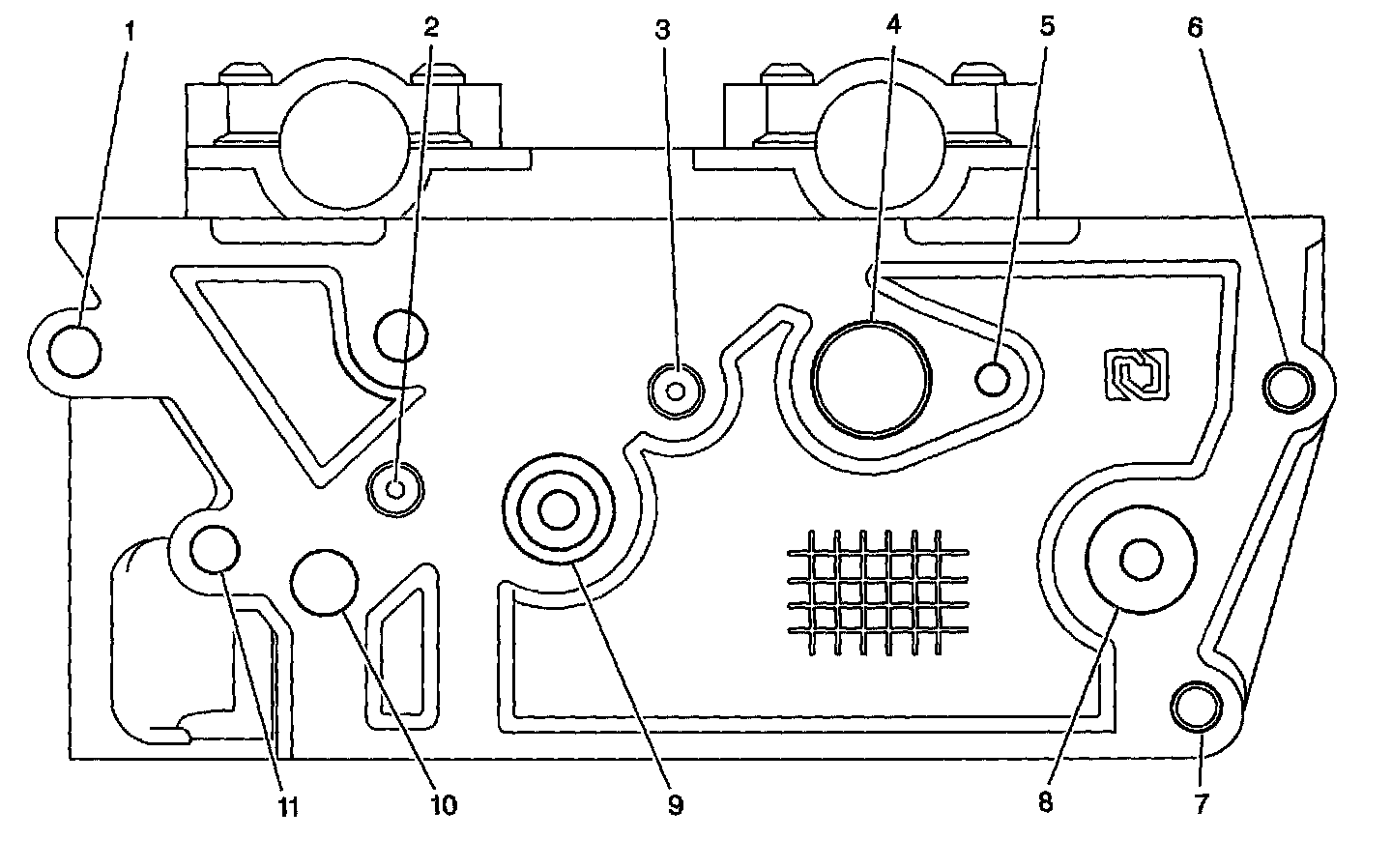

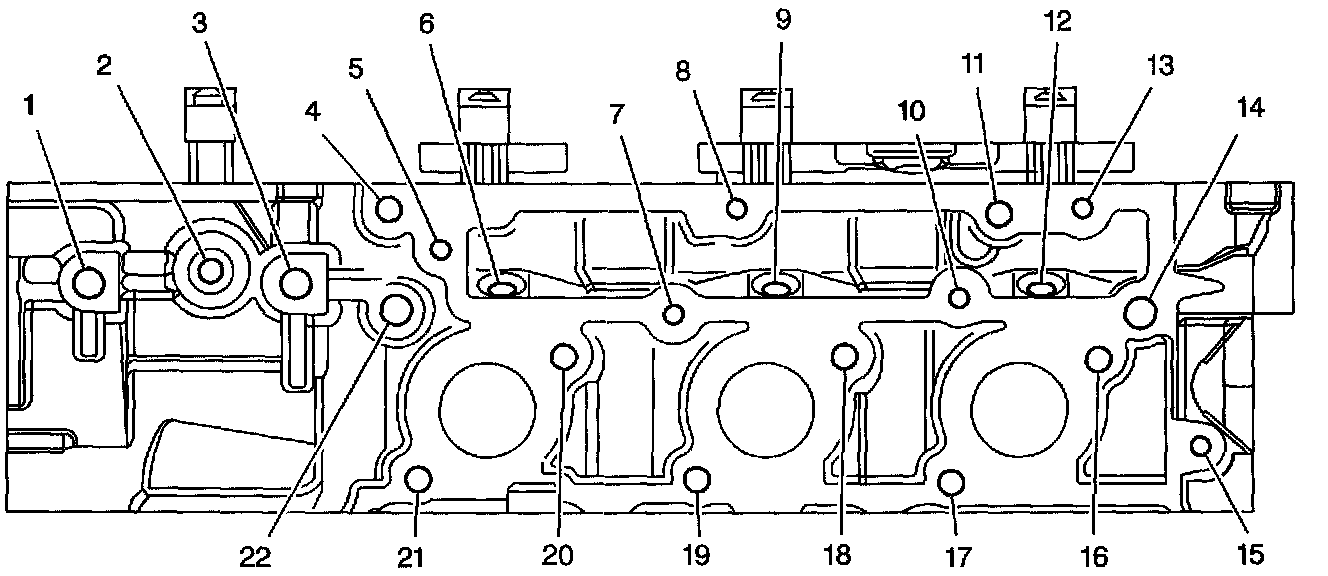

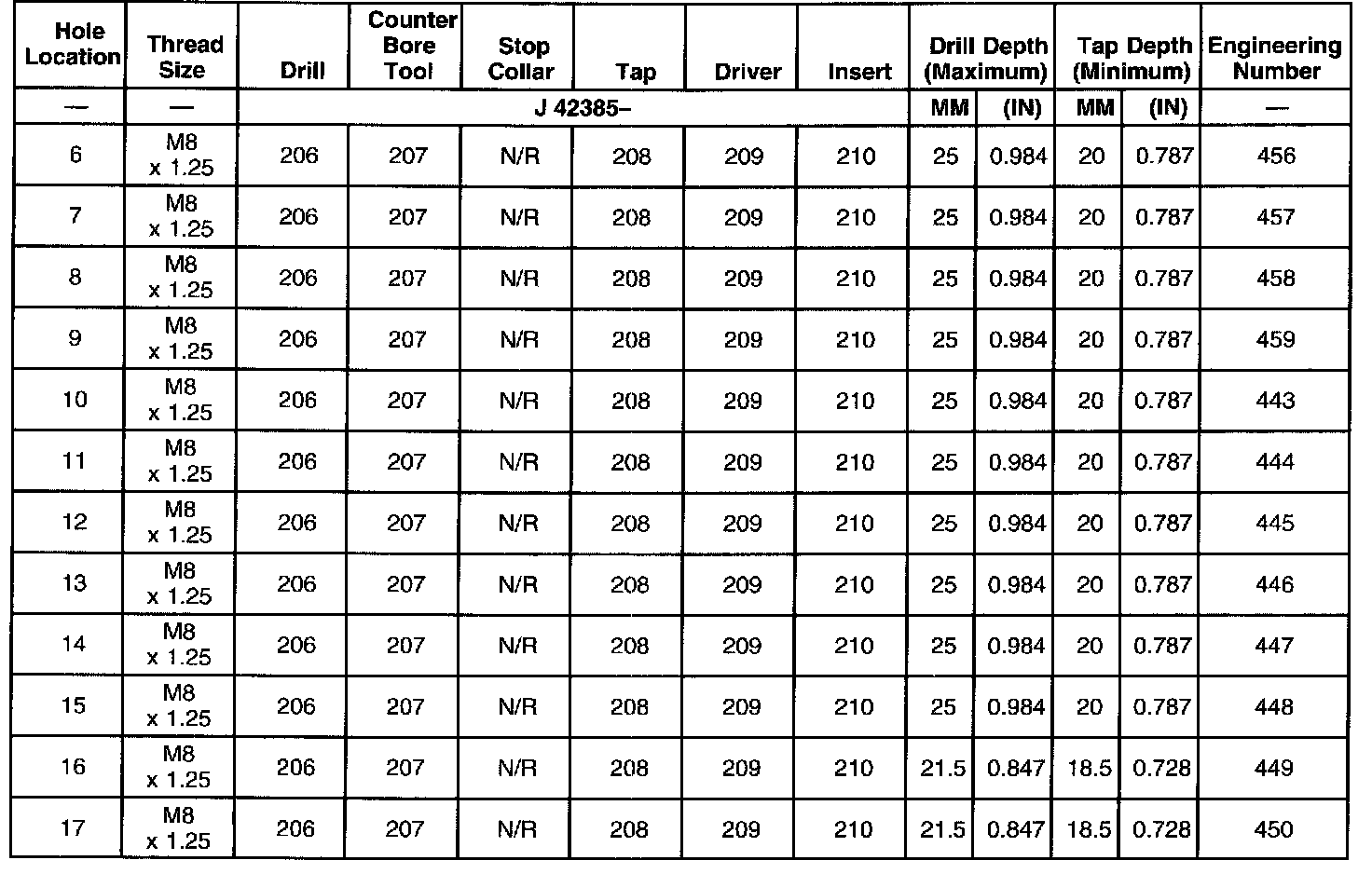

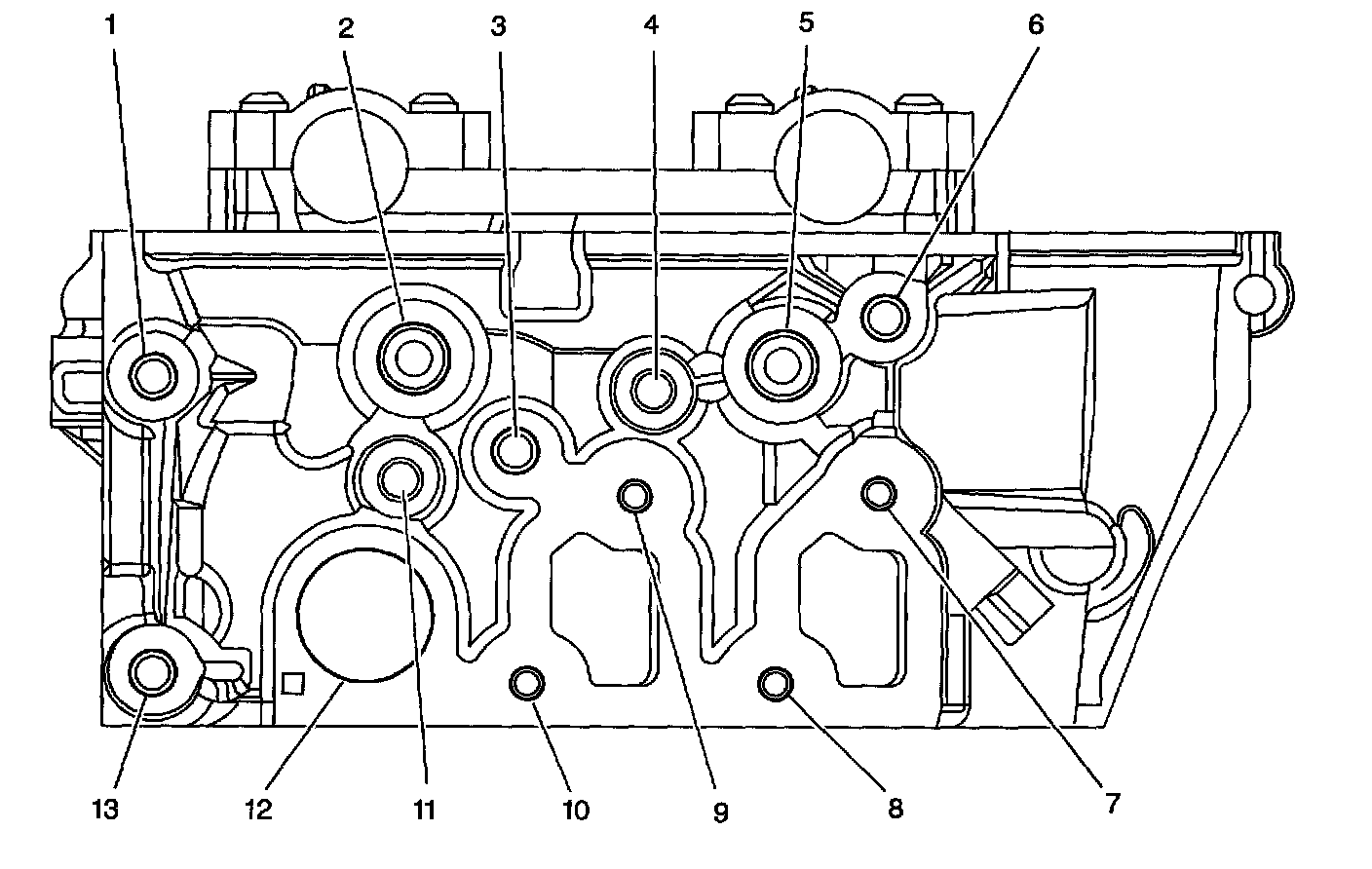

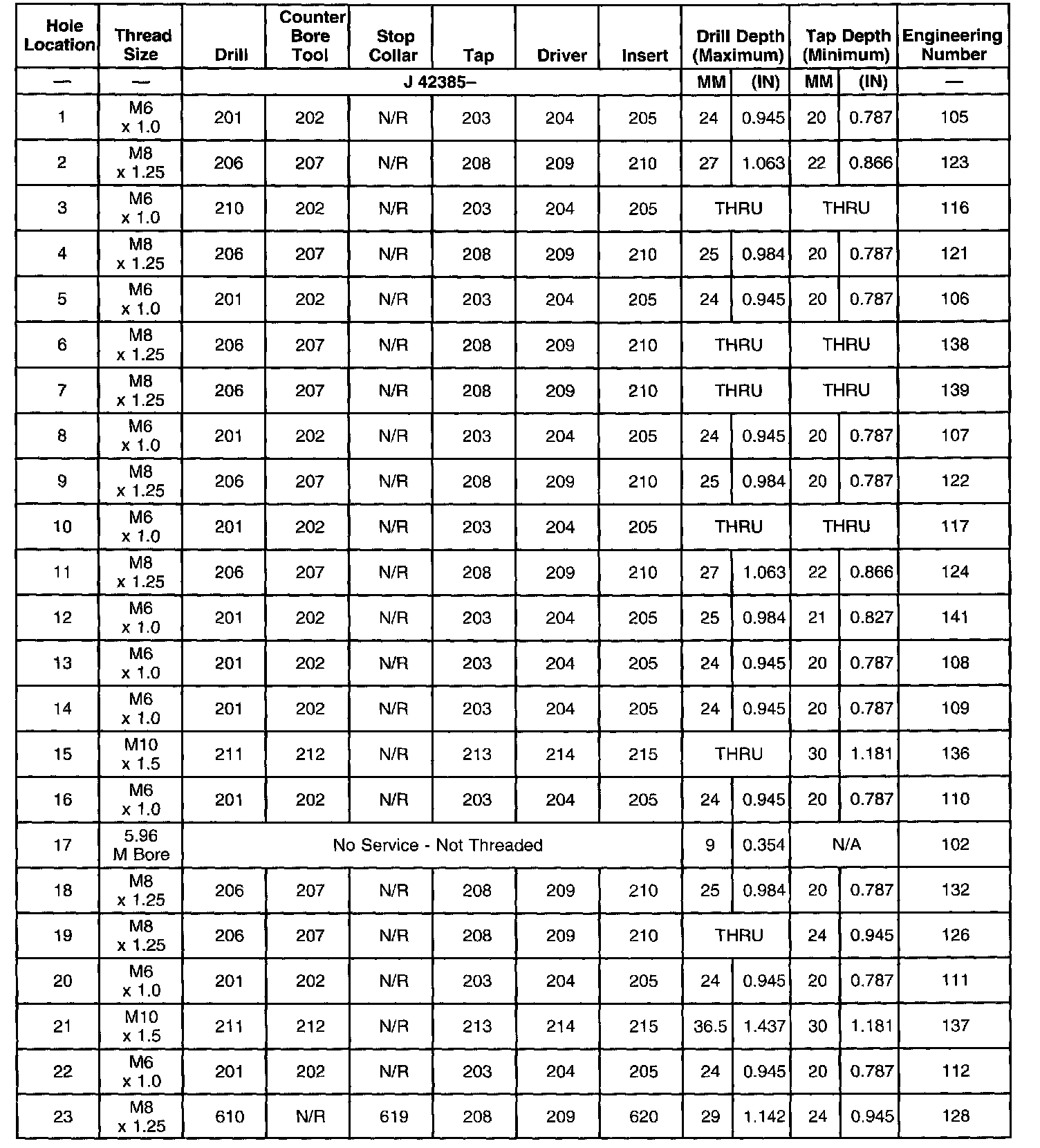

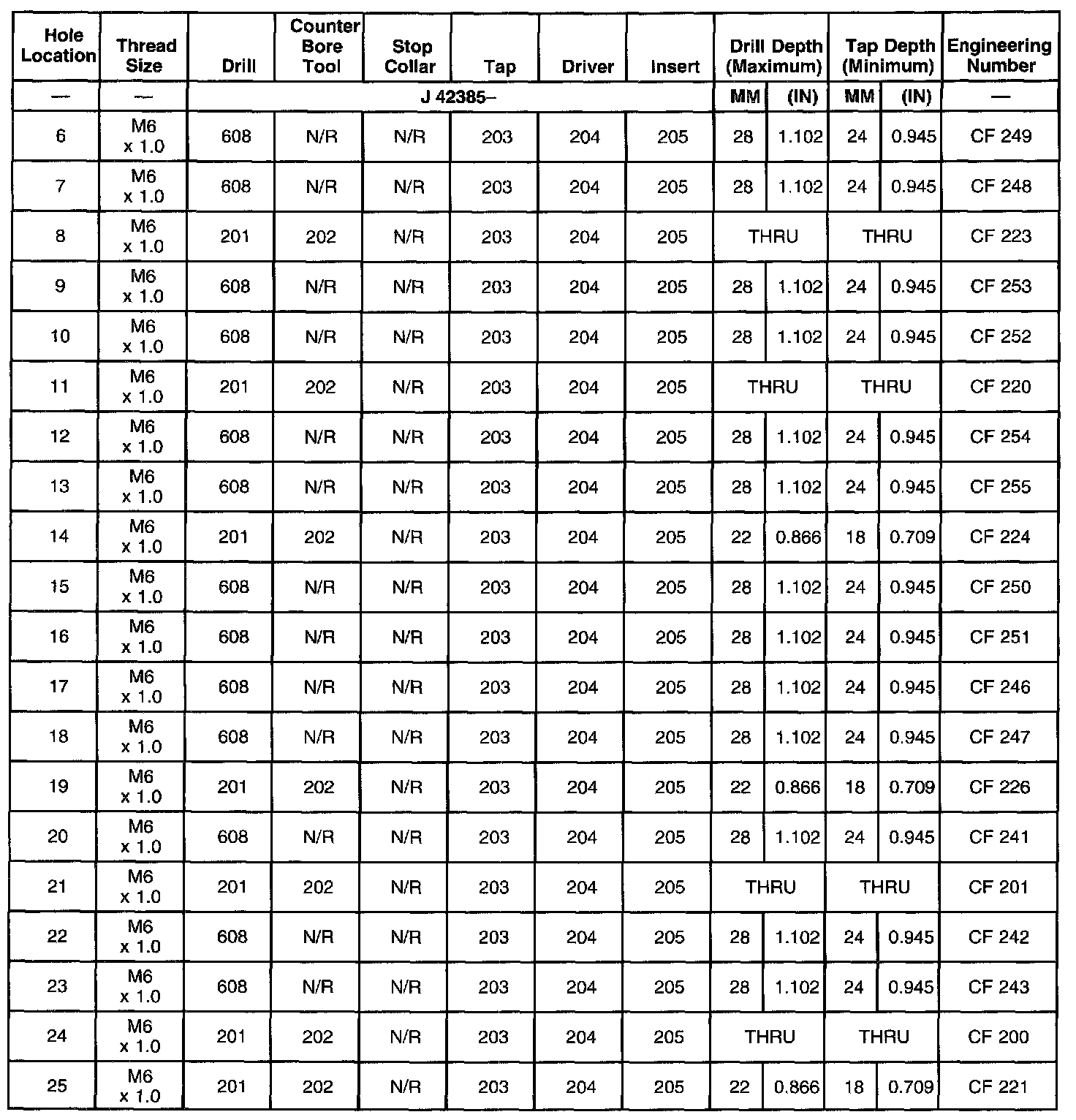

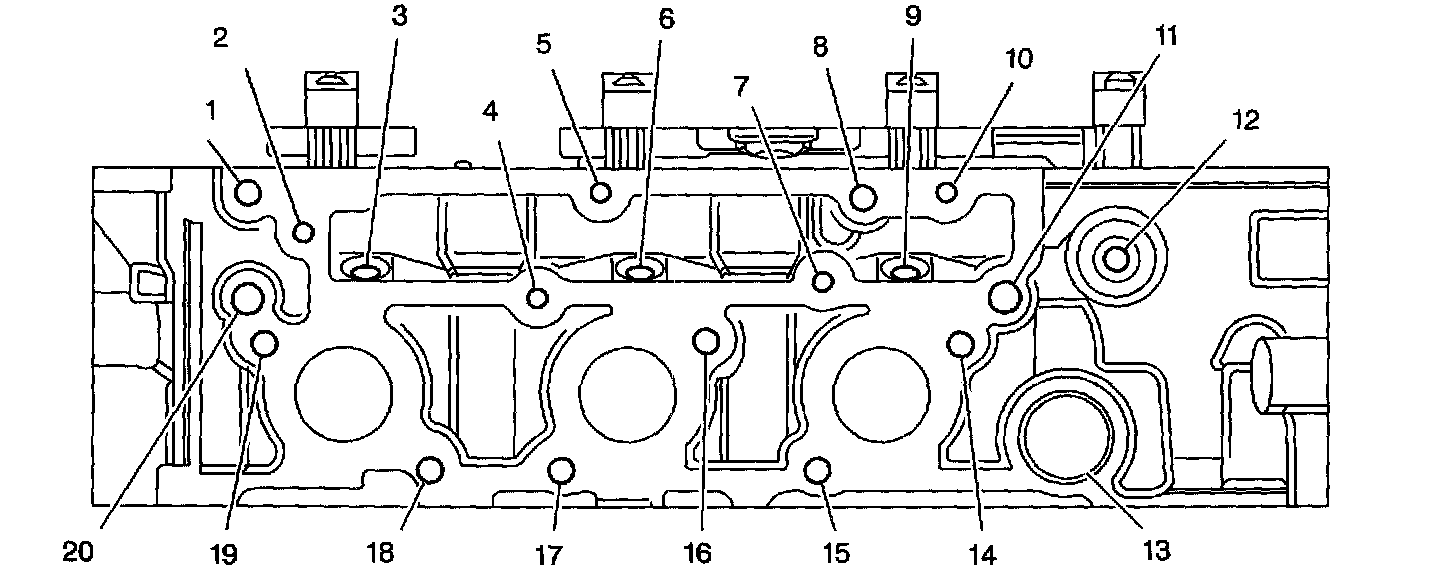

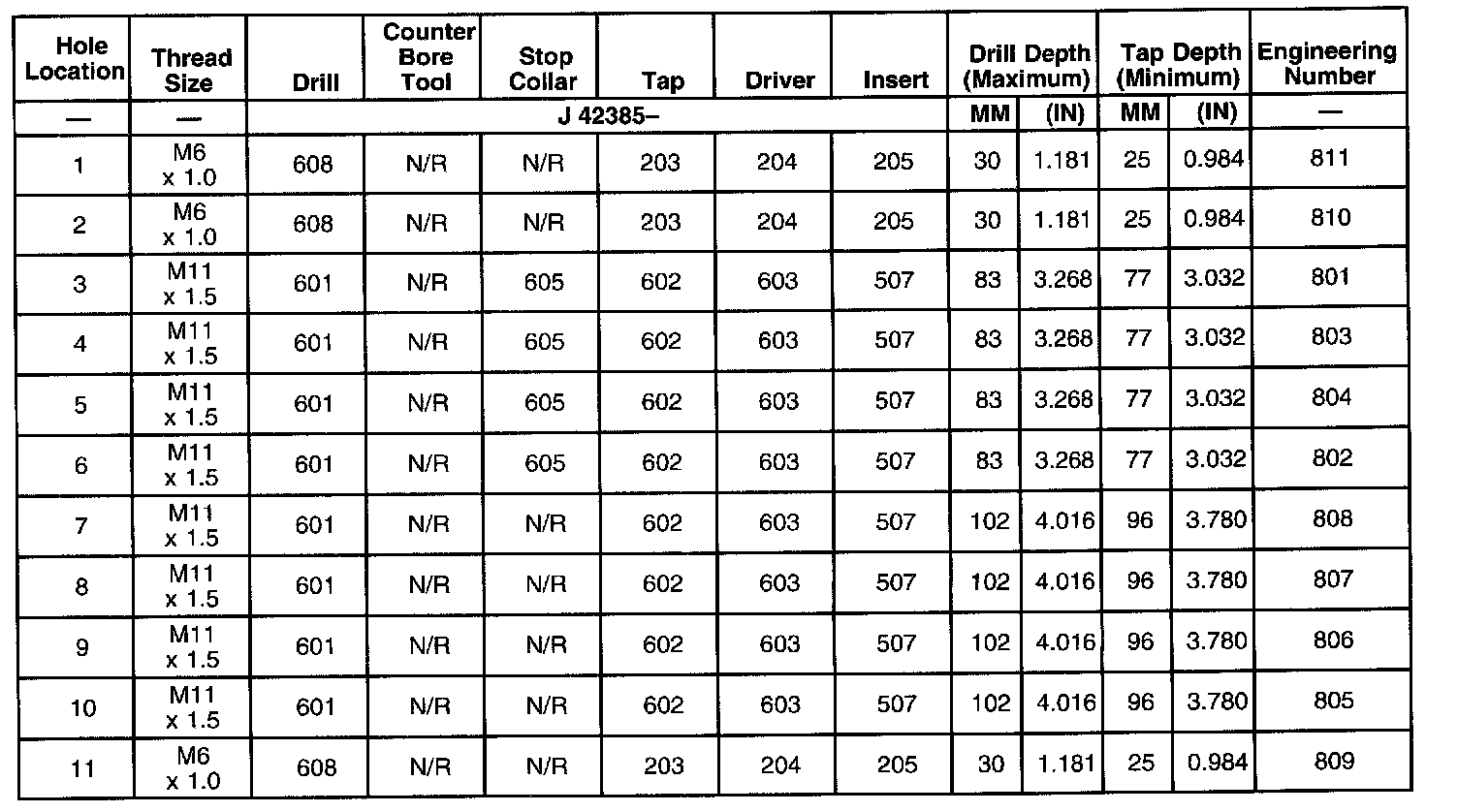

Left Cylinder Head Camshaft Cover Face






Part 1 of 2





Part 2 of 2

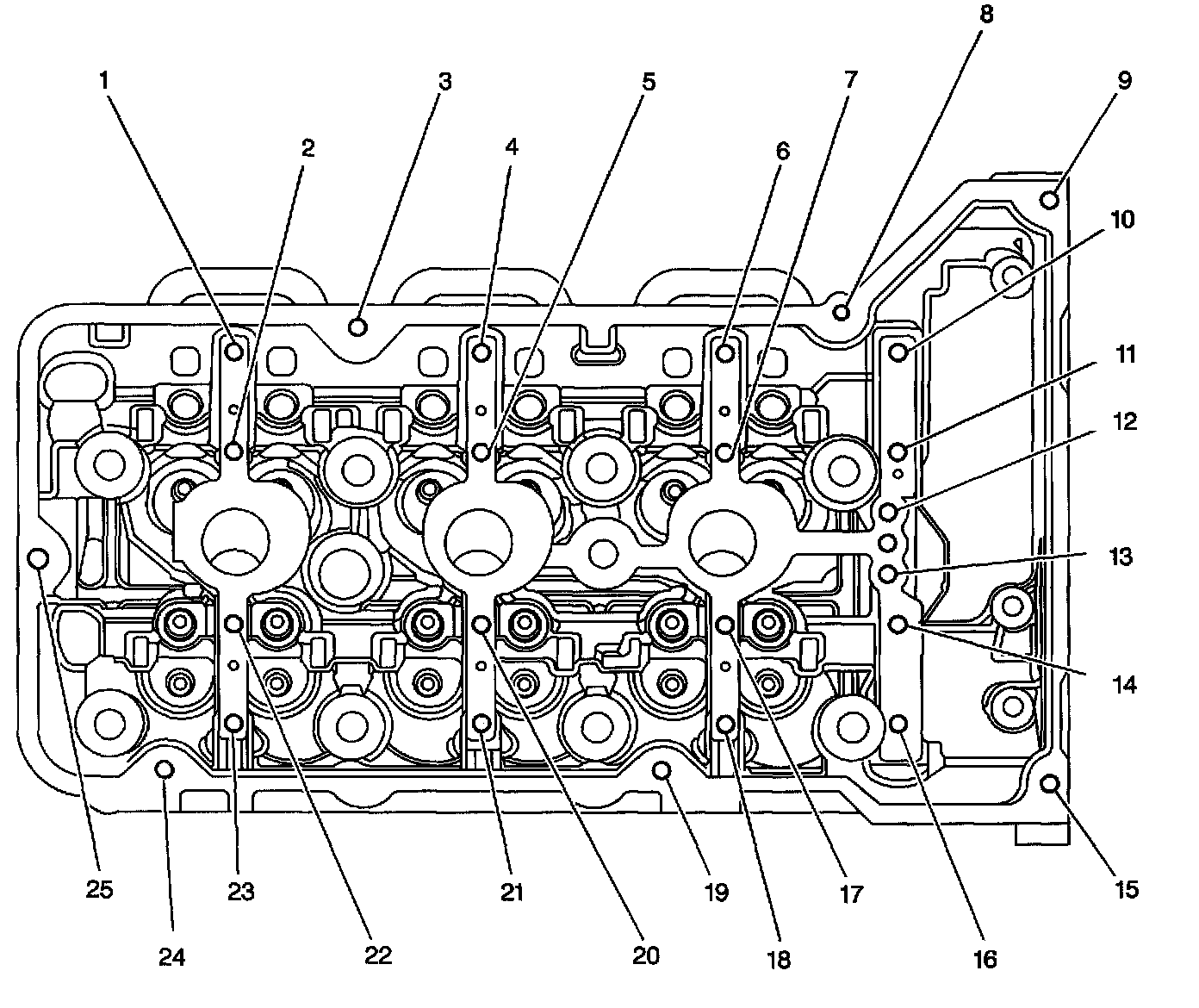

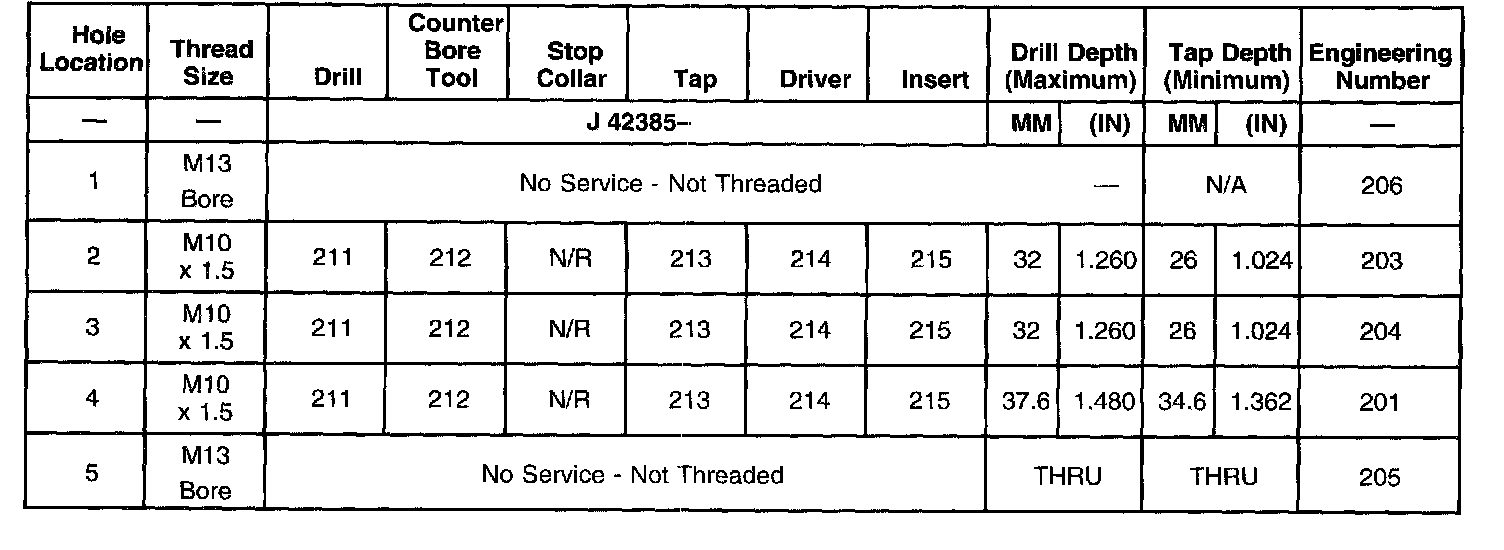

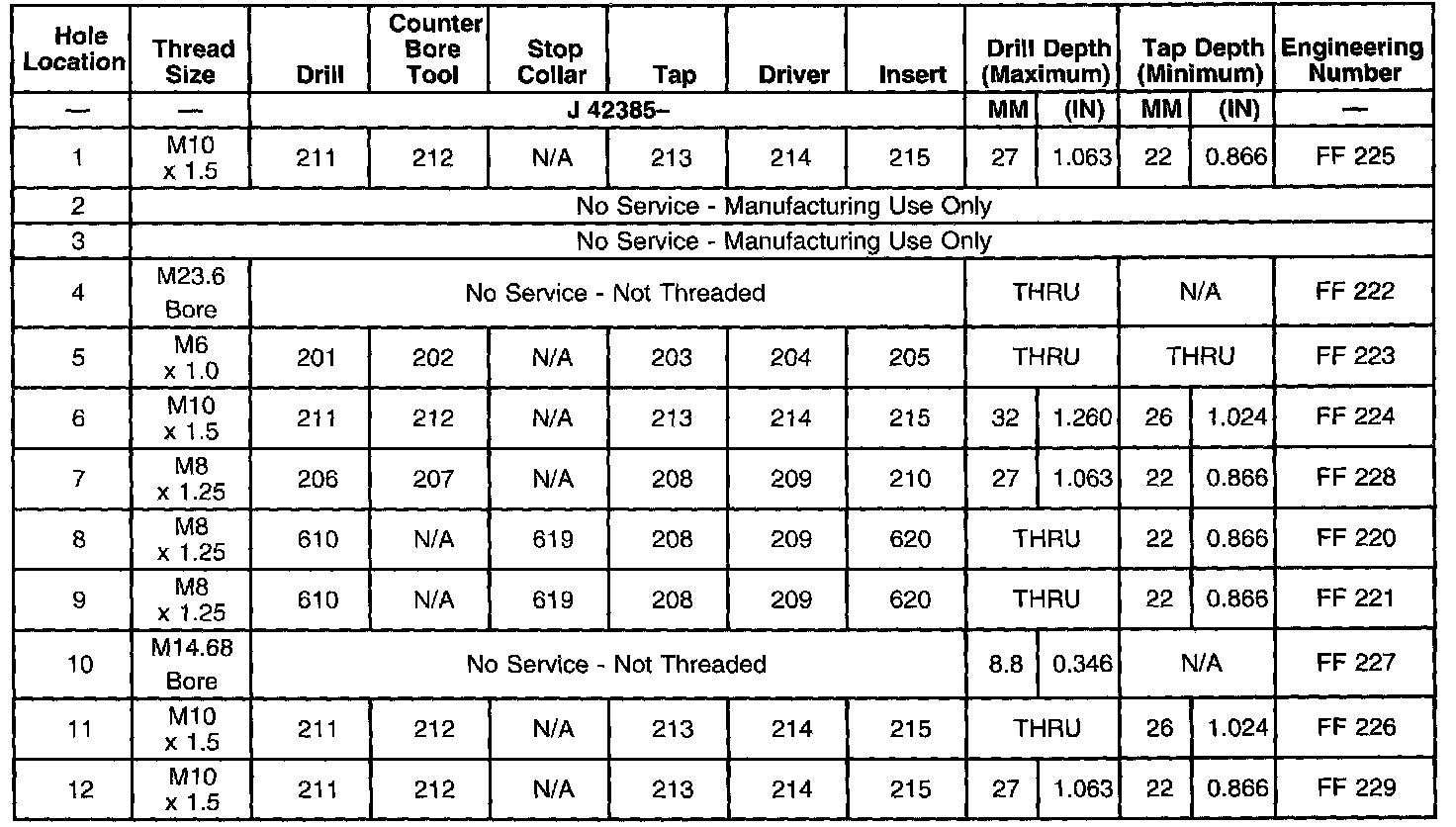

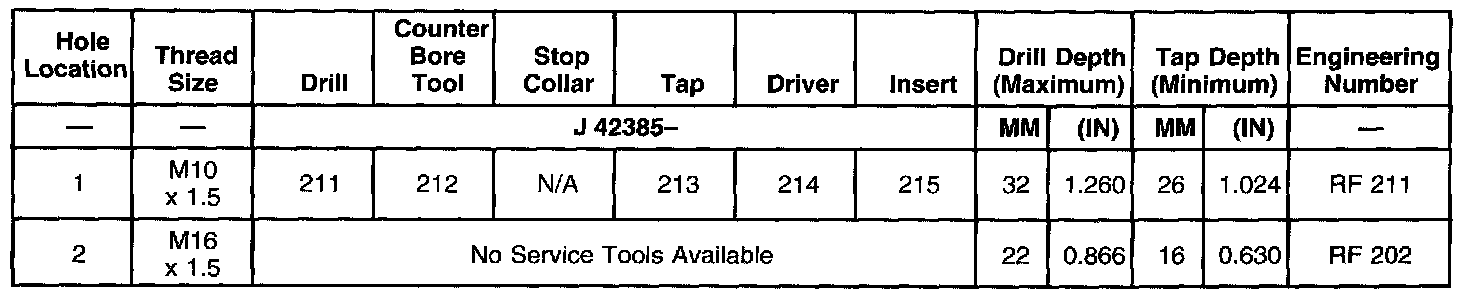

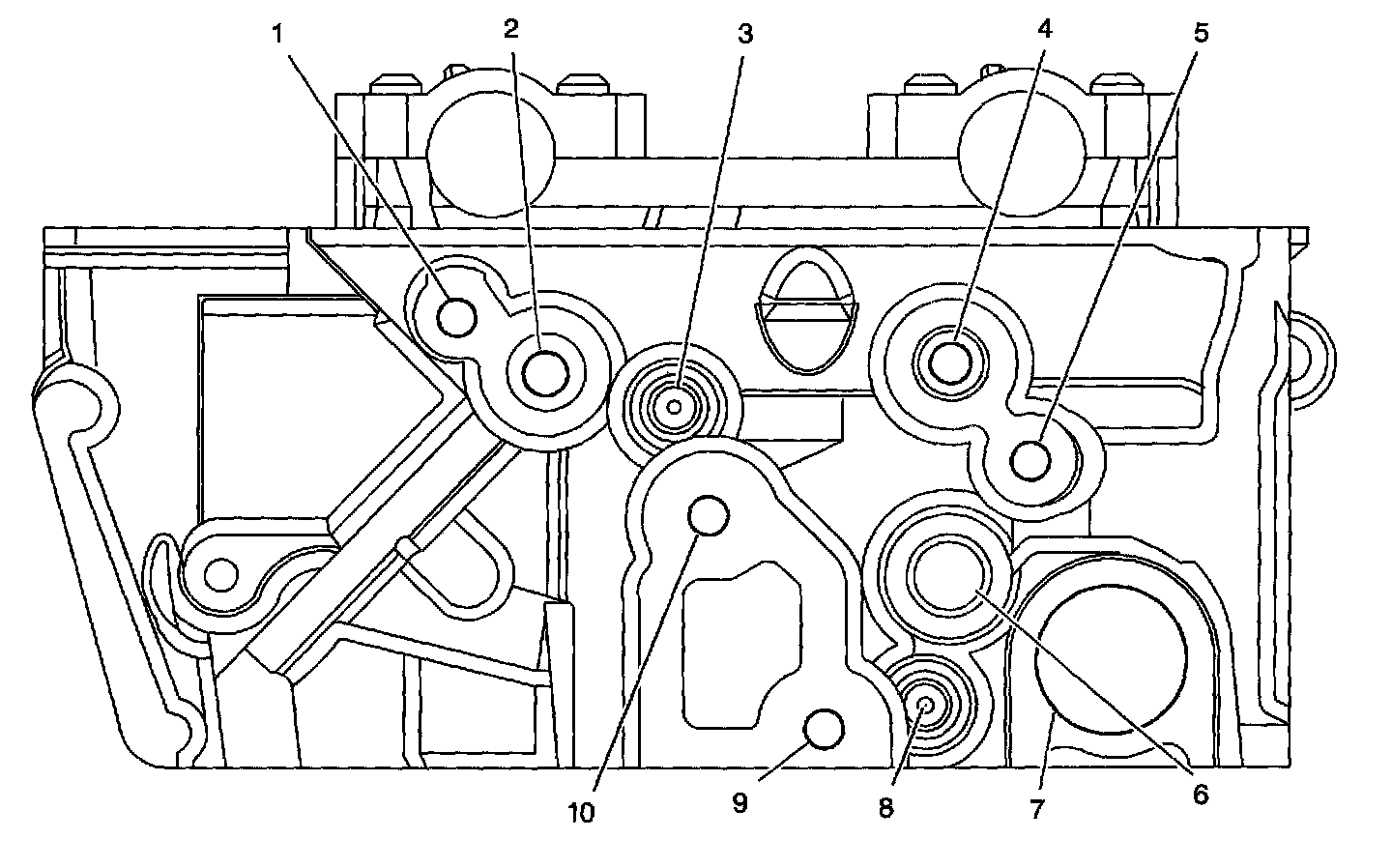

Left Cylinder Head Front Face






Part 1 of 2





Part 2 of 2

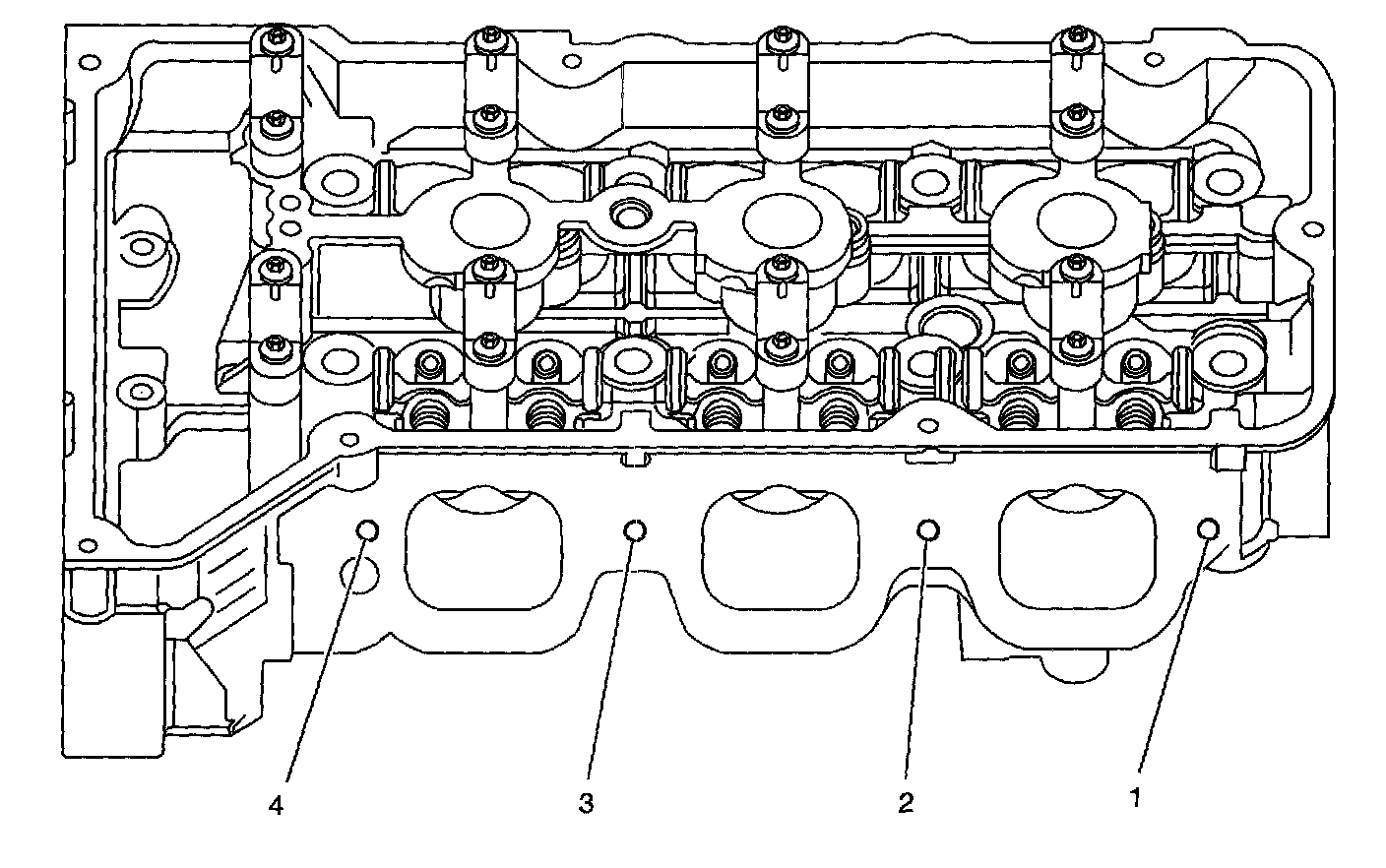

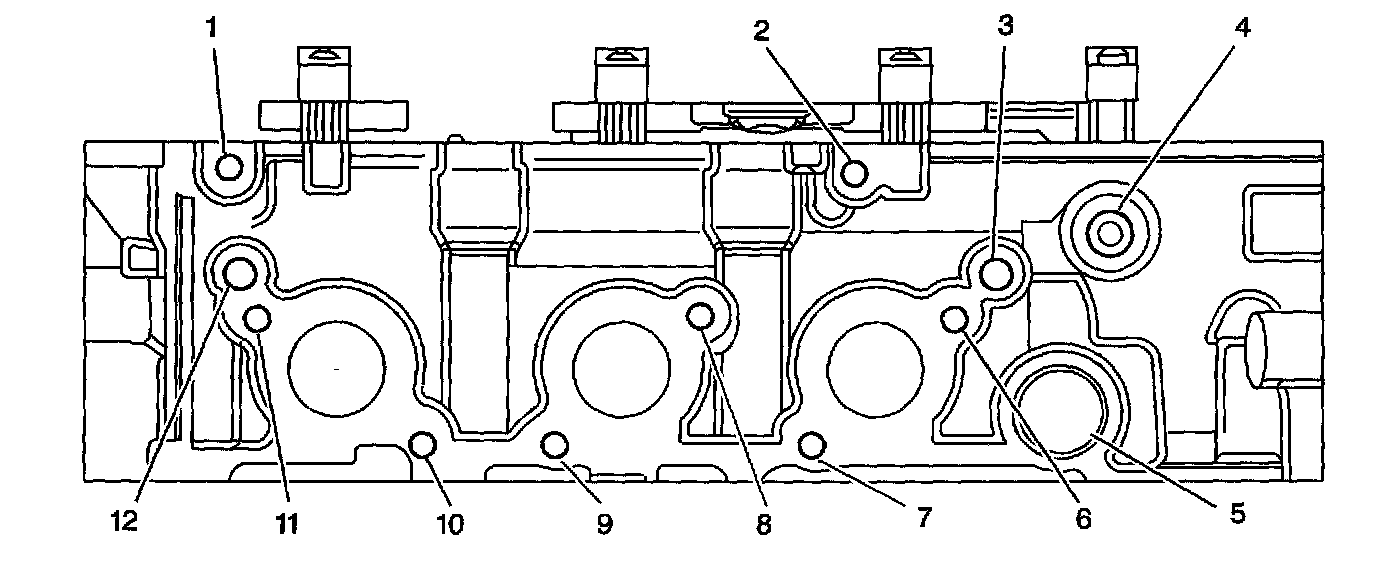

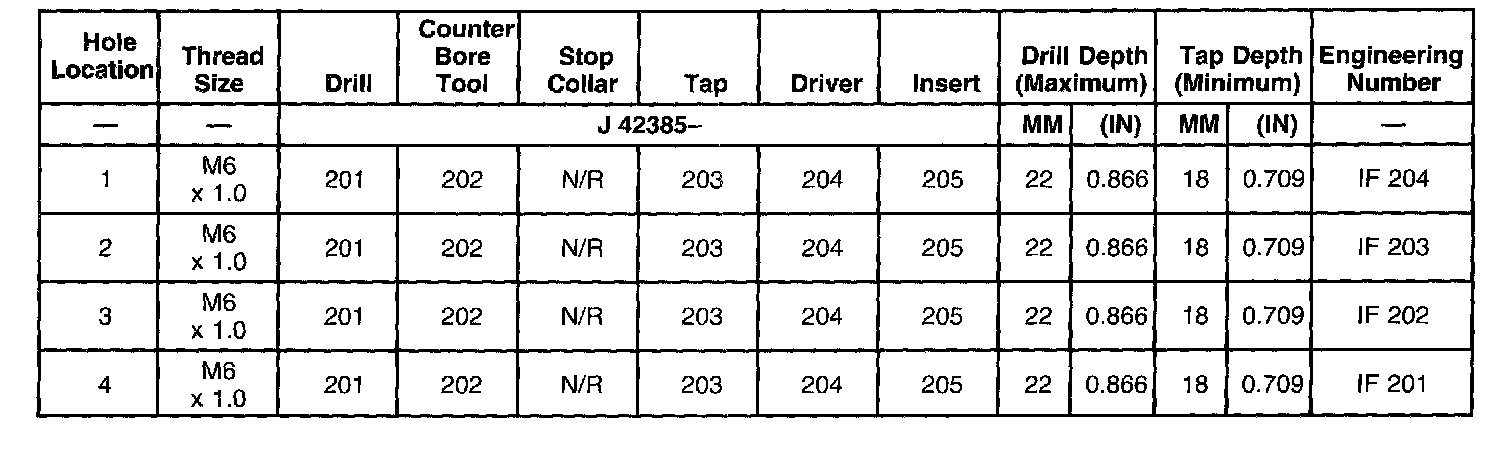

Left Cylinder Head Intake Face






Part 1 of 2





Part 2 of 2

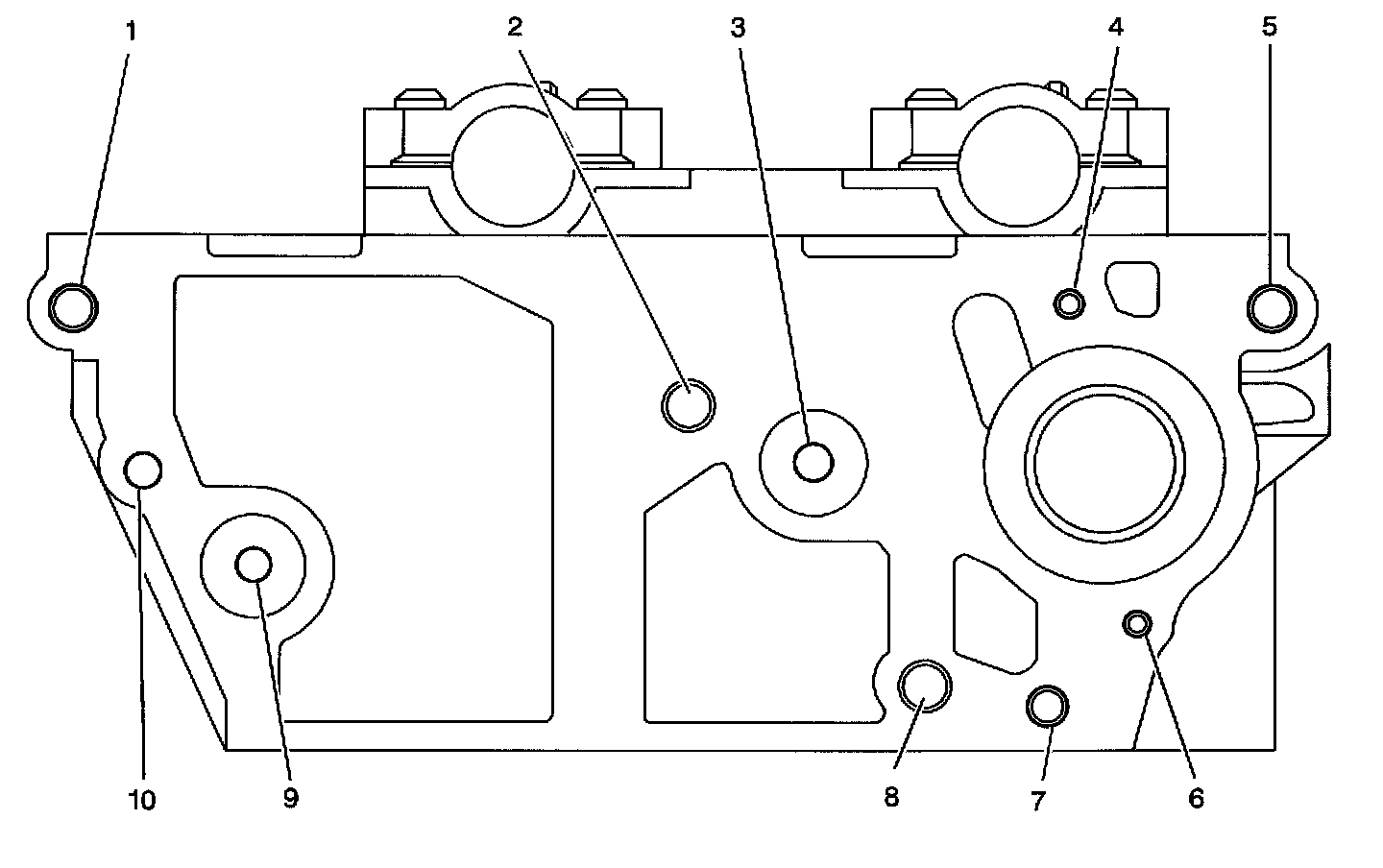

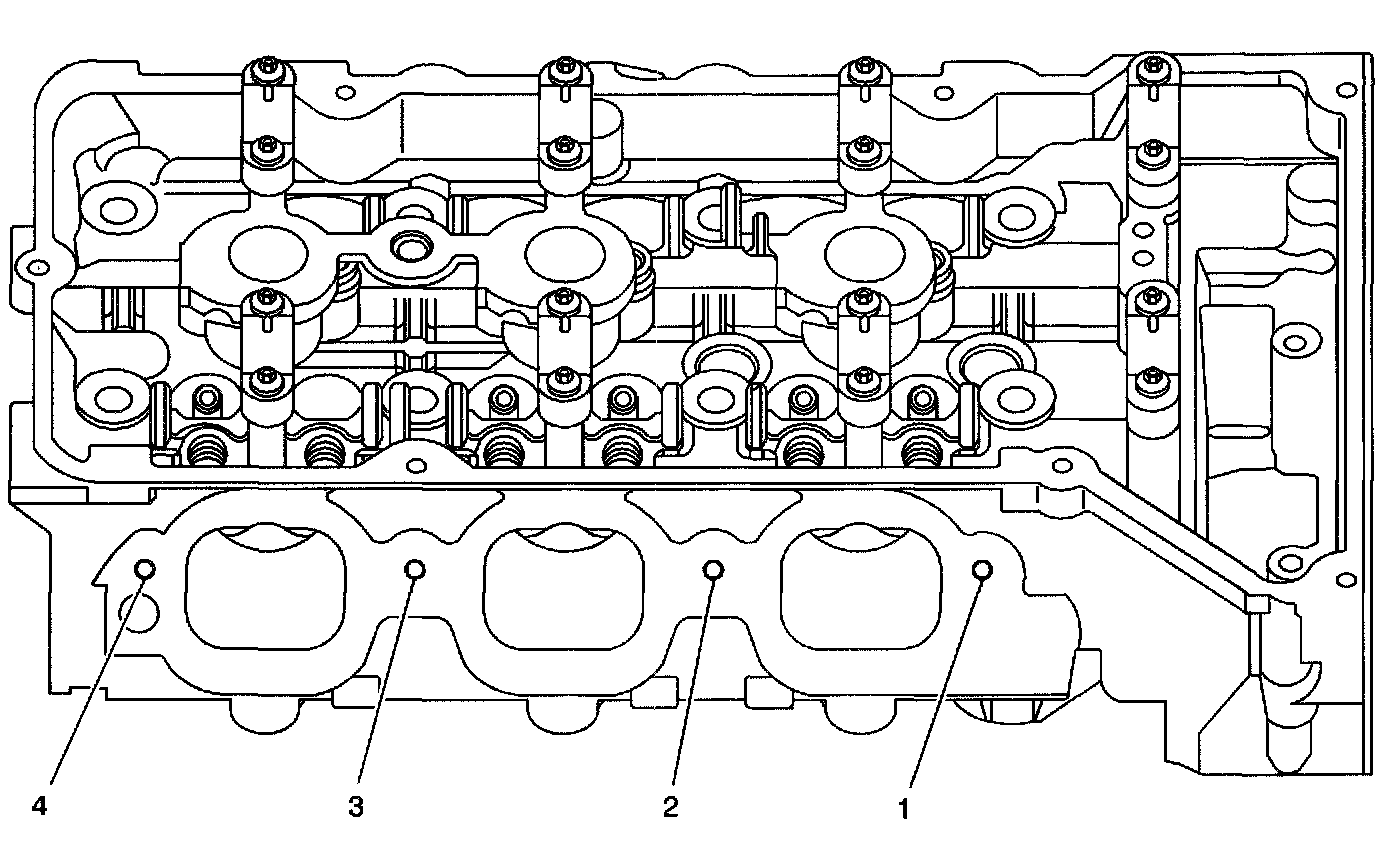

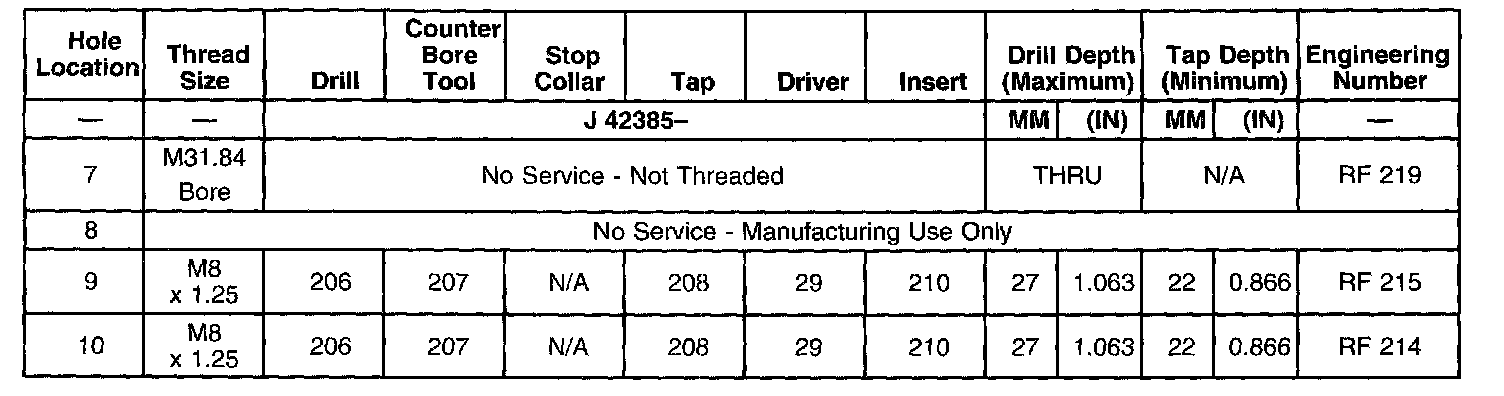

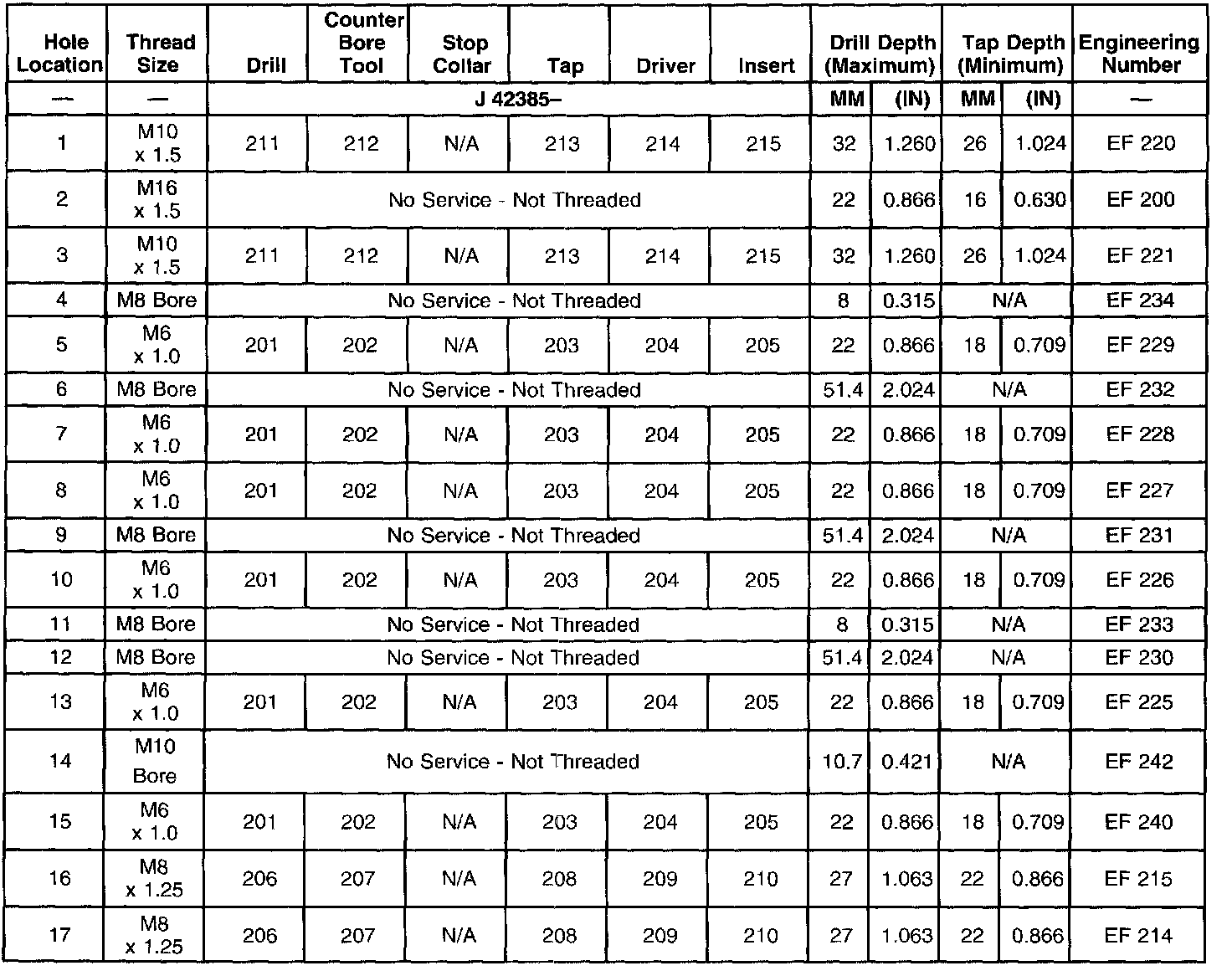

Left Cylinder Head Exhaust Face






Part 1 of 3





Part 2 of 3





Part 3 of 3

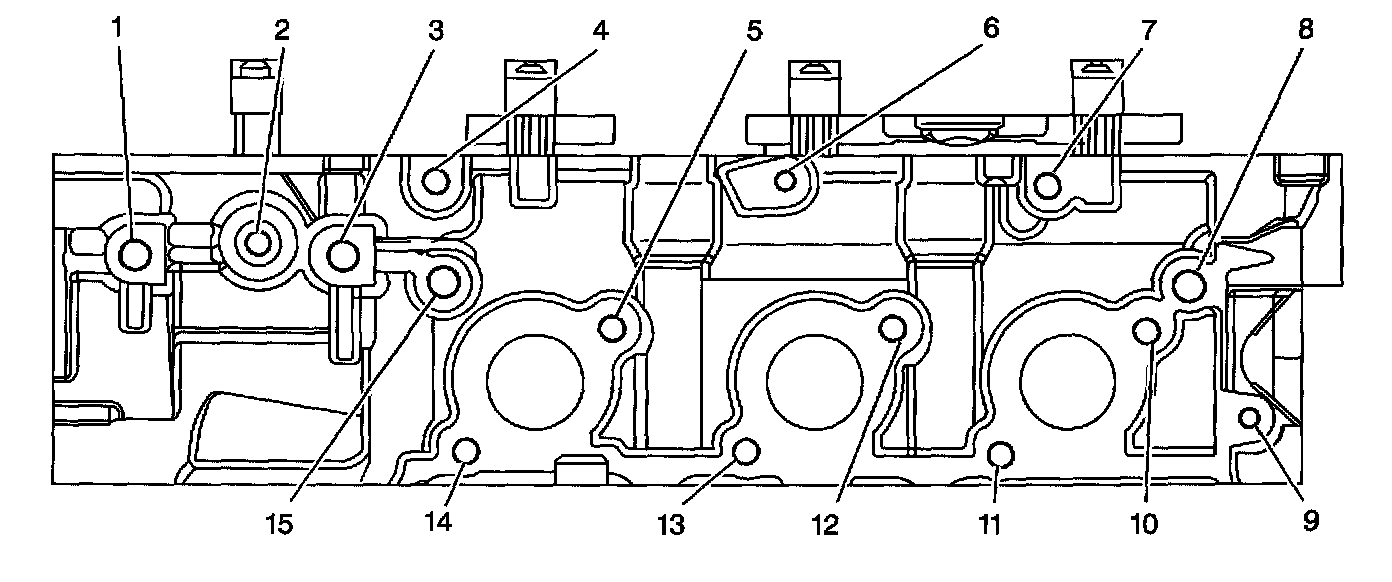

Left Cylinder Head Exhaust Face with A.I.R.






Part 1 of 3





Part 2 of 3





Part 3 of 3

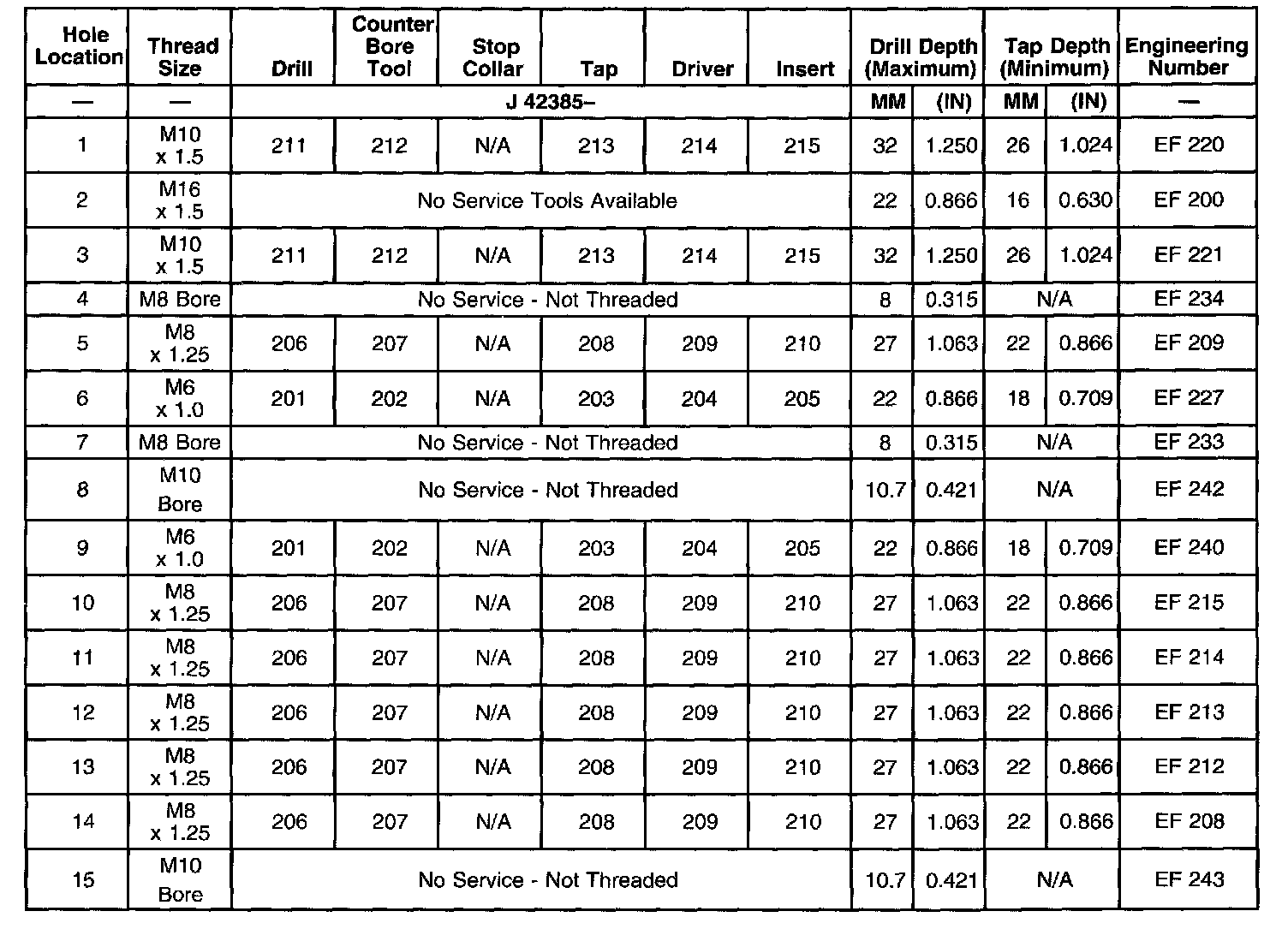

Left Cylinder Head Rear Face






Part 1 of 3





Part 2 of 3





Part 3 of 3

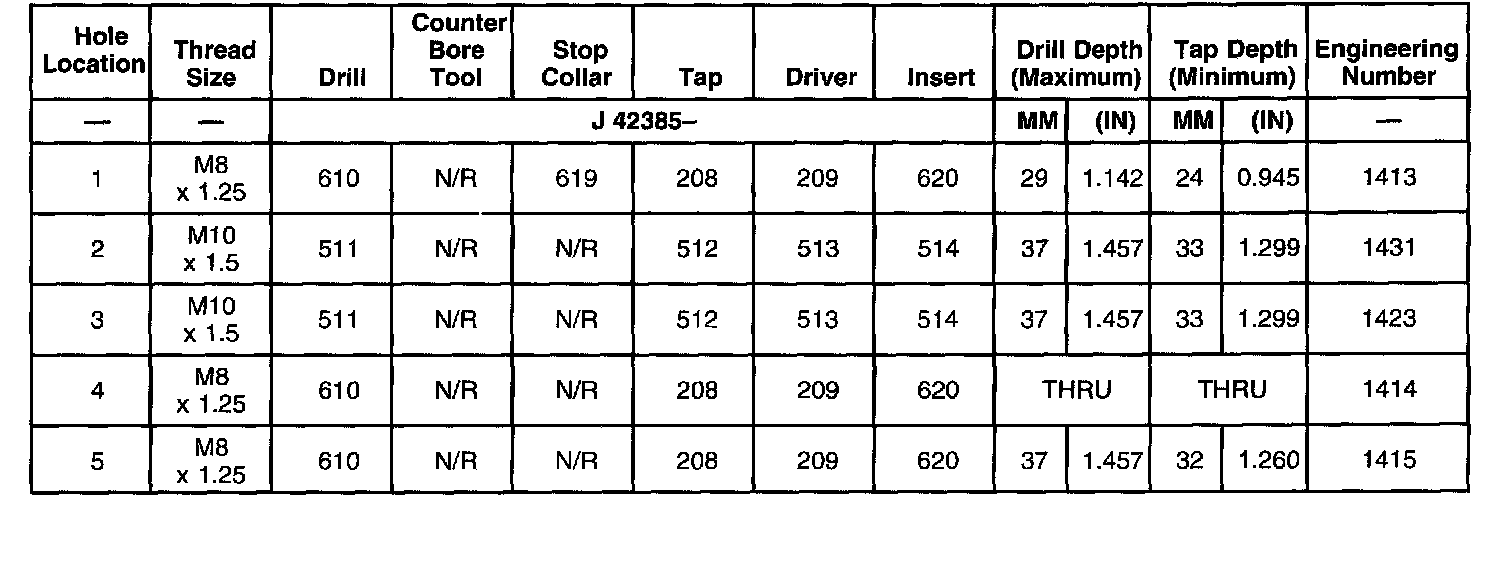

Right Cylinder Head Camshaft Cover Face






Part 1 of 2





Part 2 of 2

Right Cylinder Head Front Face






Part 1 of 2





Part 2 of 2

Right Cylinder Head Intake Face






Part 1 of 2





Part 2 of 2

Right Cylinder Head Exhaust Face






Part 1 of 3





Part 2 of 3





Part 3 of 3

Right Cylinder Head Exhaust Face with A.I.R.






Part 1 of 3





Part 2 of 3





Part 3 of 3

Right Cylinder Head Rear Face






Part 1 of 3





Part 2 of 3





Part 3 of 3

Engine Block Front






Part 1 of 3





Part 2 of 3





Part 3 of 3

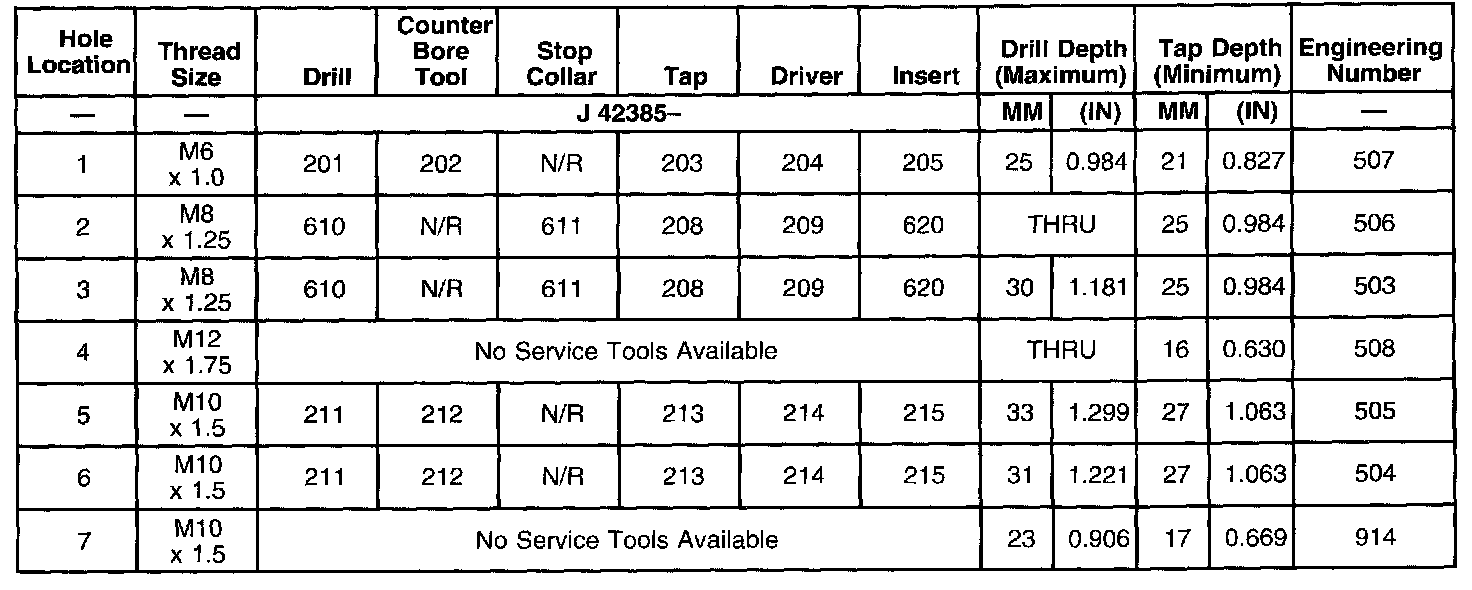

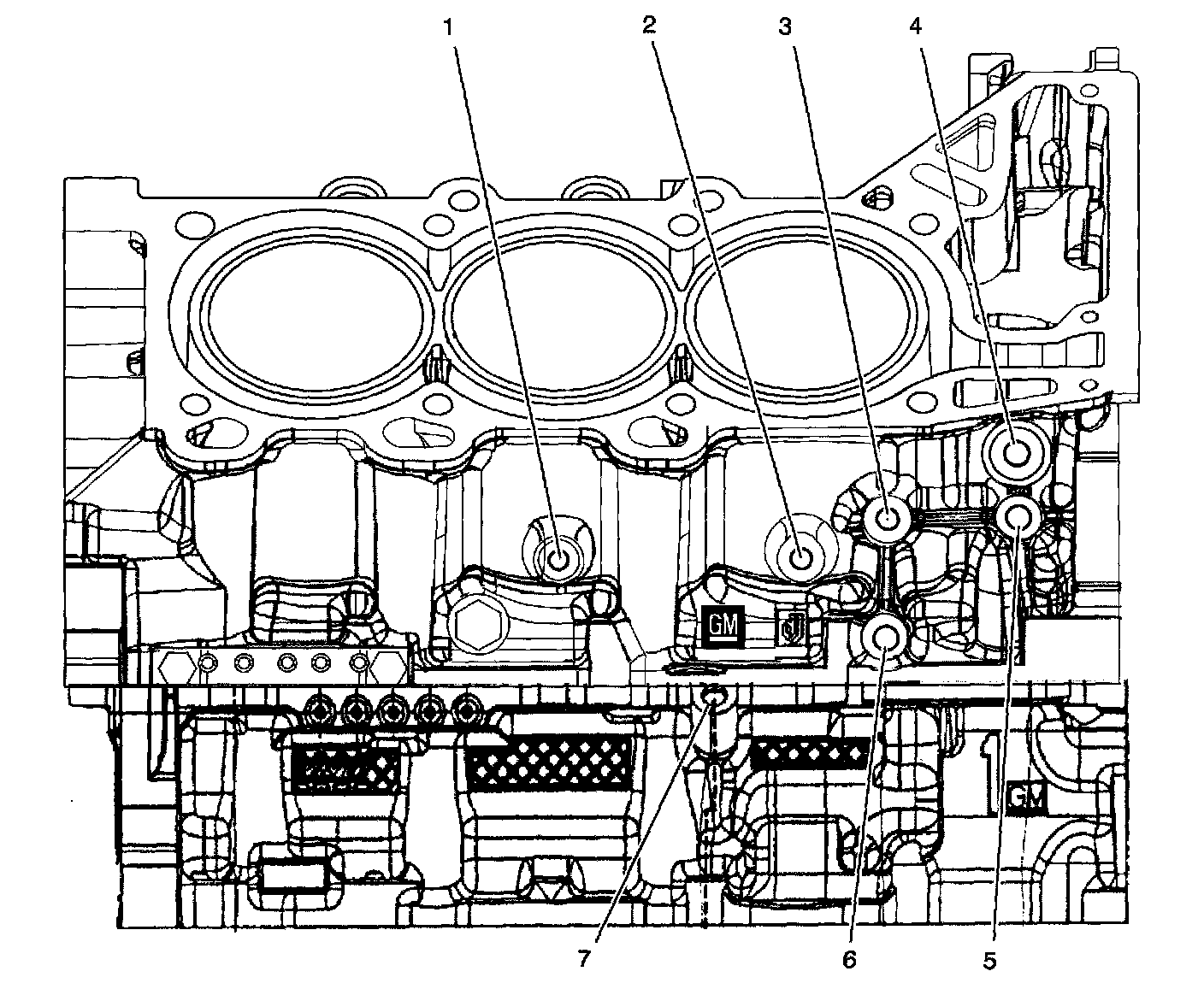

Engine Block Left Side






Part 1 of 2





Part 2 of 2

Engine Block Right Side






Part 1 of 3





Part 2 of 3





Part 3 of 3

Engine Block Rear






Part 1 of 3





Part 2 of 3





Part 3 of 3

Engine Block Top






Part 1 of 2





Part 2 of 2

Engine Block Left Deck Face






Part 1 of 2





Part 2 of 2

Engine Block Right Deck Face






Part 1 of 3





Part 2 of 3





Part 3 of 3

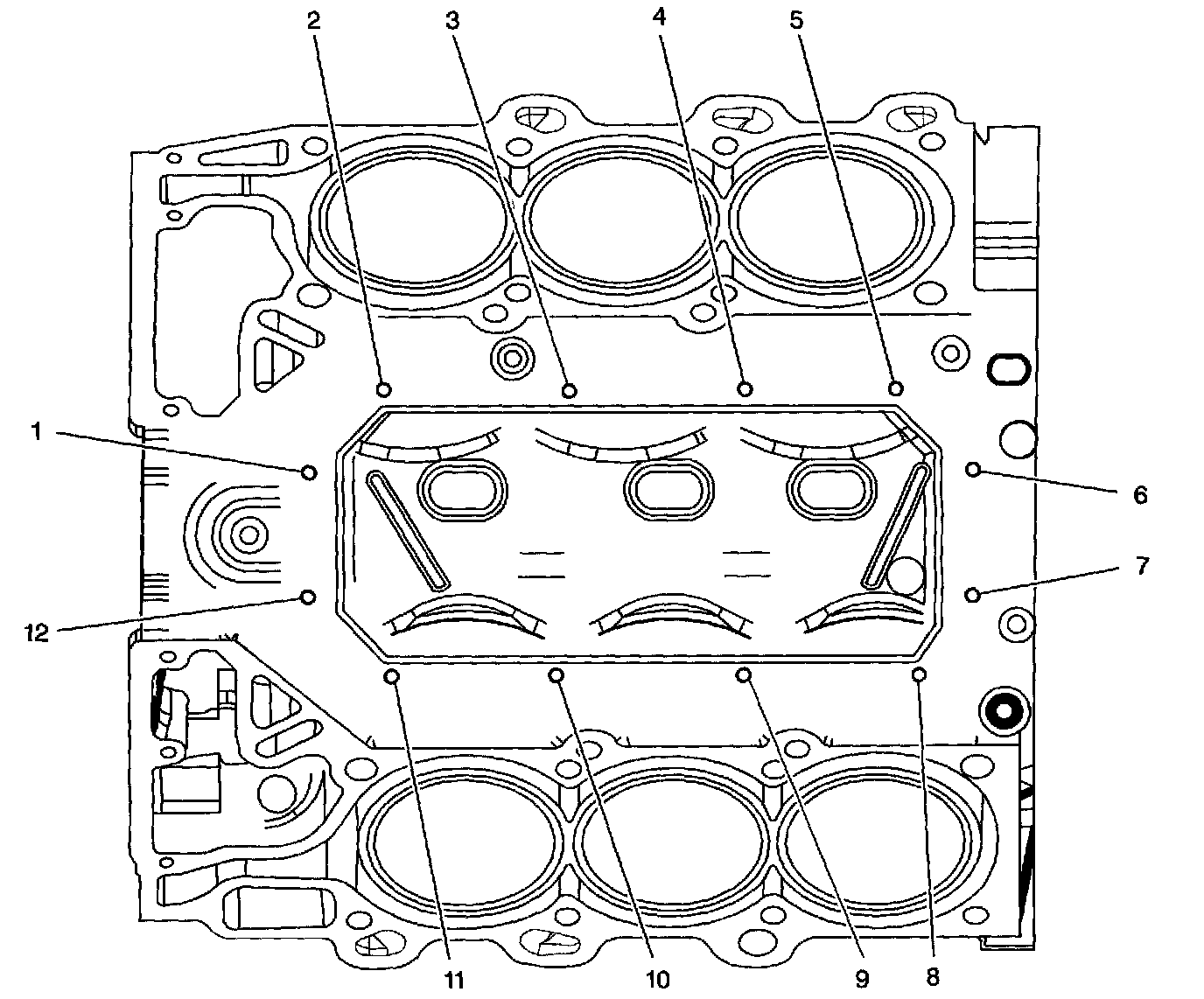

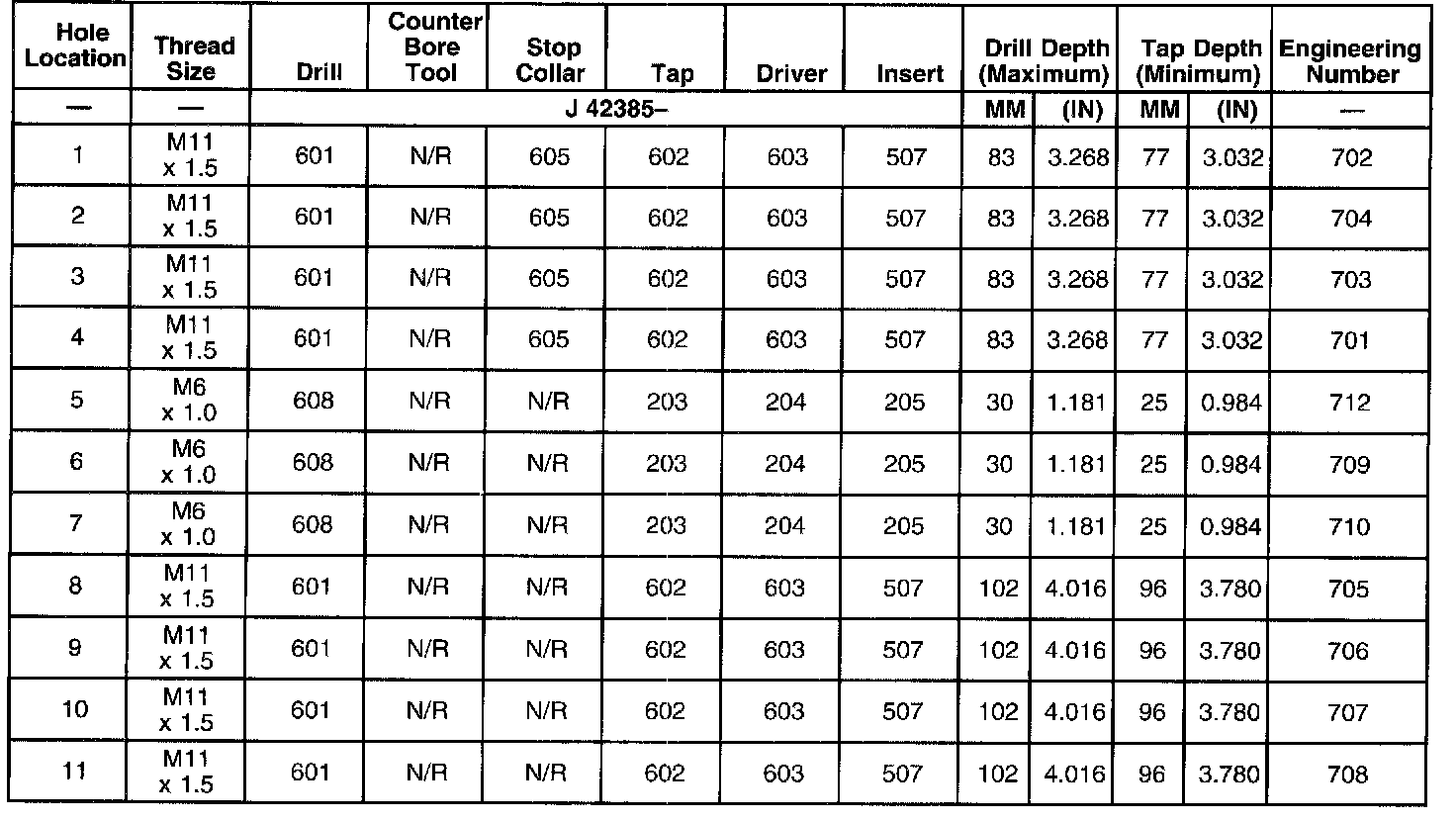

Engine Block Lower Face






Part 1 of 3





Part 2 of 3





Part 3 of 3

Lower Crankcase Pan Face
