Ambient Temperature Sensor / Switch HVAC: Service and Repair

AMBIENT AIR TEMPERATURE SENSOR REPLACEMENT

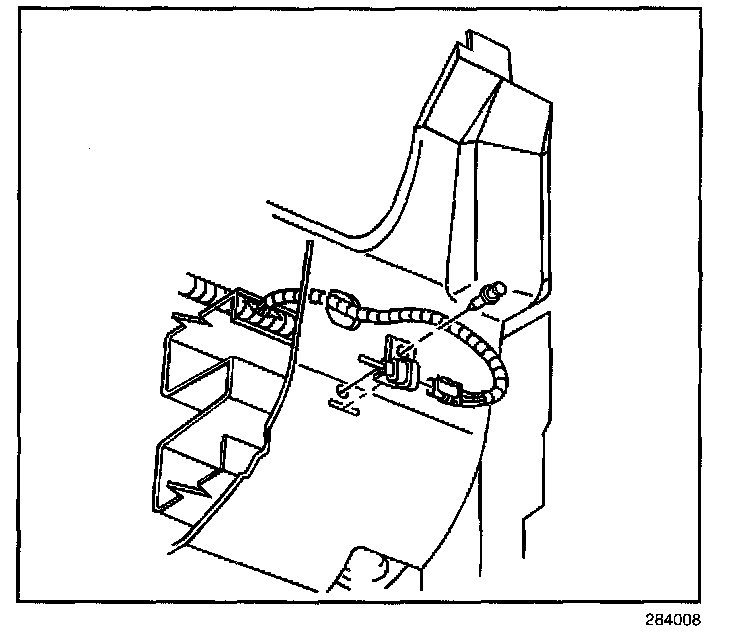

REMOVAL PROCEDURE




1. Raise and support the vehicle.
2. Disconnect the electrical connector from the ambient air temperature sensor located on the front radiator air baffle.
3. Remove the ambient air temperature sensor from the radiator air baffle.

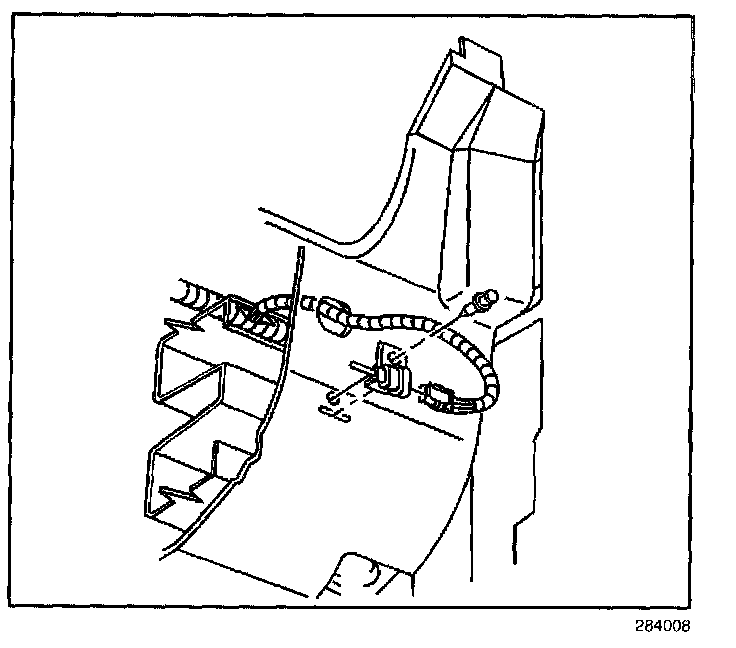

INSTALLATION PROCEDURE




1. Install the ambient air temperature sensor to the radiator air baffle.
2. Connect the electrical connector to the sensor.
3. Lower the vehicle.
