Solar Sensor: Service and Repair

SUN LOAD SENSOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the instrument panel (IP) upper trim pad.

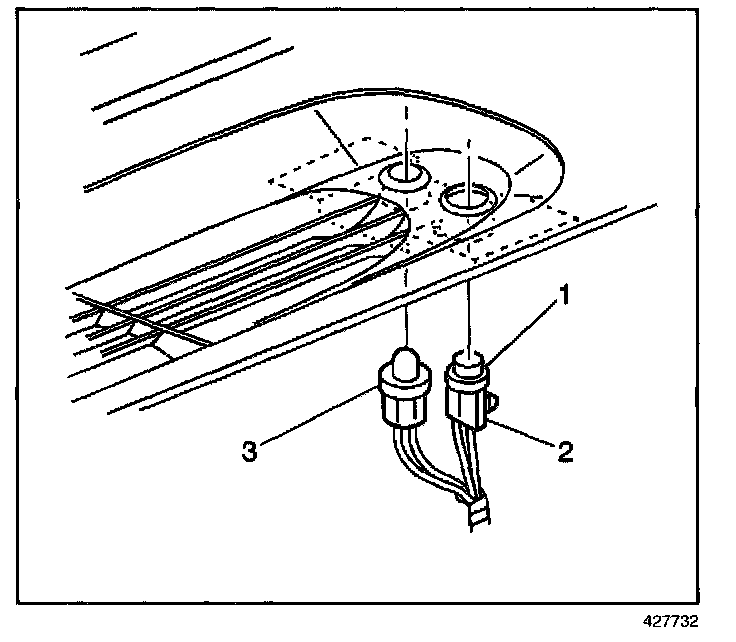

2. Disconnect the sunload sensor (1) and the daytime running lamp (DRL) light sensor (3) from the defroster grille.
3. Disconnect the electrical connector (2) from the sunload sensor.
4. Remove the sunload sensor (1).

INSTALLATION PROCEDURE




1. Connect the electrical connector (2) to the sunload sensor.
2. Install the sunload sensor (1) and the DRL light sensor (3) to the defroster grille.
3. Install the IP upper trim pad.
