Vacuum Control System Diagnostic - HVAC System - Manual
Vacuum Control System Diagnostic - HVAC System - Manual
Steps 1-7:

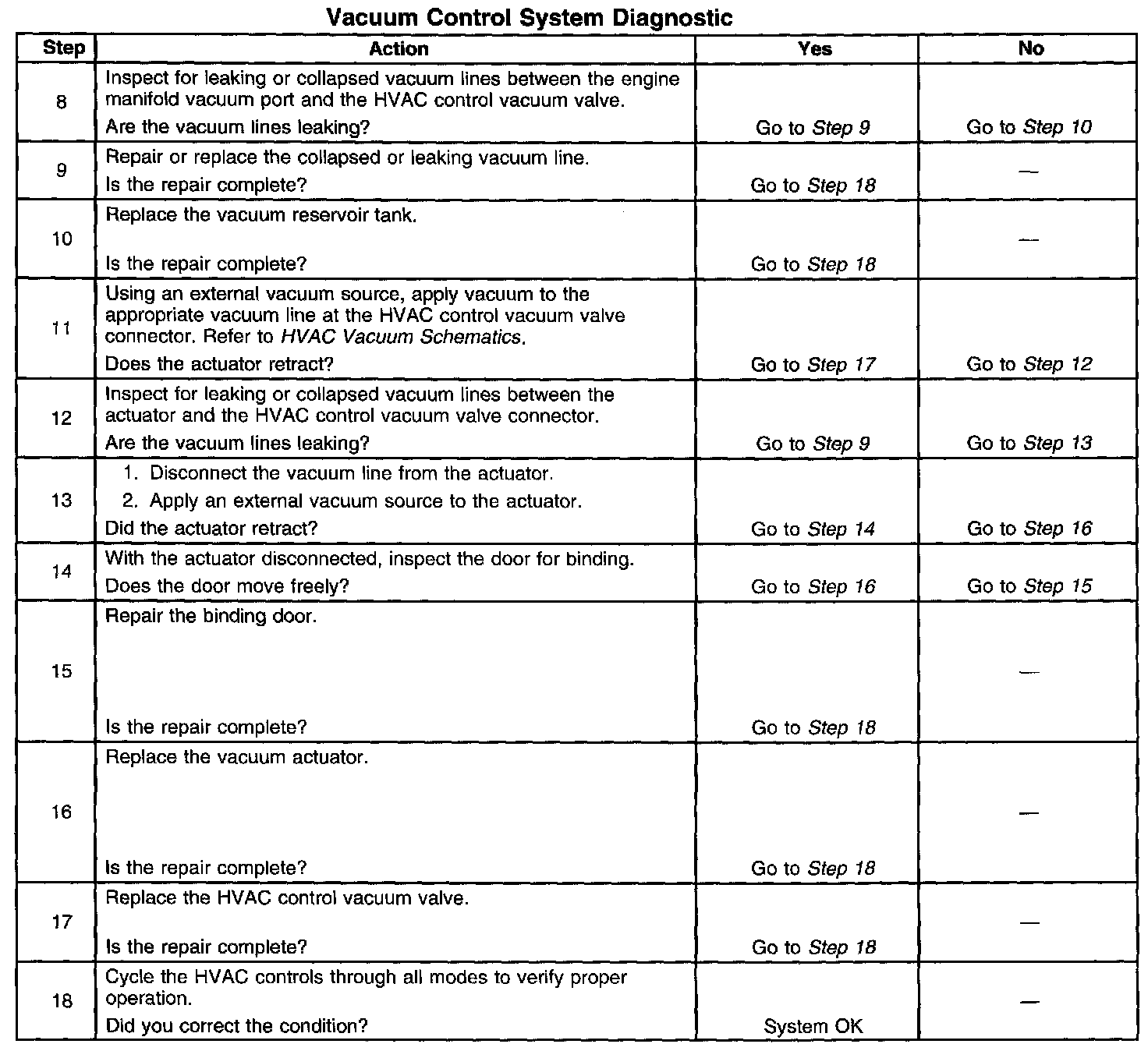

Steps 8-18:
